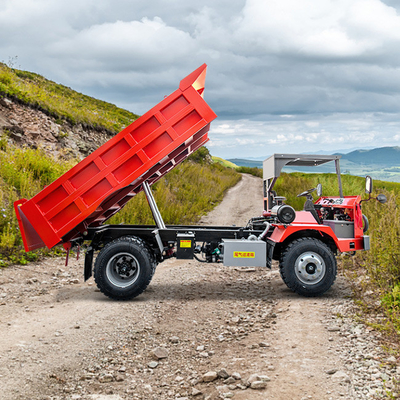

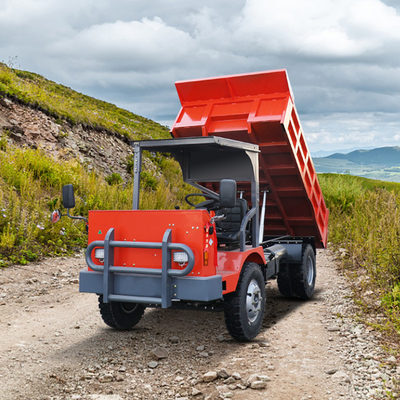

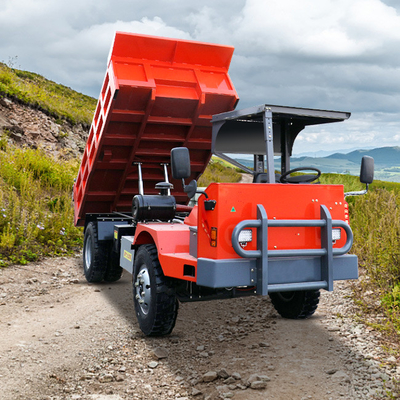

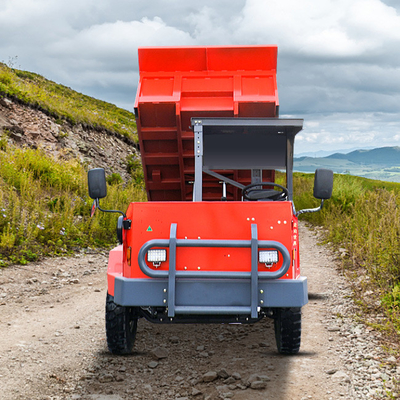

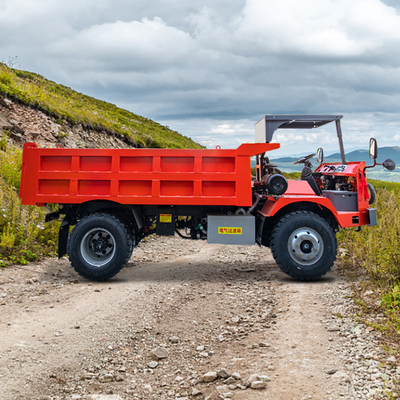

Product parameters of 7 Ton Mining Dump Truck
Mining vehicles, belonging to non road vehicles, are mainly used in mines and engineering. They are more durable and carry more load than ordinary heavy-duty vehicles. From a structural perspective, there doesn't seem to be much difference between mining trucks and regular dump trucks, it just seems to be a bit larger. In fact, mining vehicles have fundamental differences in design concepts from ordinary dump trucks. Ordinary dump trucks are designed and manufactured to meet the needs of road transportation, while mining trucks are designed and manufactured to meet the needs of mining construction operations. Therefore, the entire vehicle and its components are designed and manufactured for this type of user, taking into account the mining operating environment. Due to its wide appearance and excessive total mass, it is not allowed to drive on highways.
The mining dump truck mainly consists of an engine, chassis, control compartment (front), generator system, body (actuation system), and auxiliary power system.The characteristics of mining dump trucks are: large tonnage, low consumption, high technical content, and expensive price. Classified by transmission mode: Mining dump trucks can be divided into electric wheel mining dump trucks and mechanical transmission mining dump trucks. Standard or narrow gauge railway transport vehicles for transporting loose materials such as ore, waste rock, and coal in mines, usually hauled by locomotives or winches. In addition to mining trucks for transporting bulk materials, mining vehicles also have flatbed trucks and material trucks specifically designed for transporting materials. A transport vehicle for transporting loose materials on lightweight railway tracks. Transporting loose building materials on construction sites by manpower, winches, or tractors. Composed of components such as a bucket, frame, walking wheel, coupling, etc. The fixed mining truck bucket is fixedly connected to the frame and needs to be flipped and unloaded by a dump truck. The tipping bucket mining car bucket is supported on the frame flipping track, and the bucket can be flipped and unloaded on the flipping track.
| Model | UQ-7 |
| Engine Model | YUNEI 4102 |
| Engine Power | 70KW/95HP |
| Total Dimension | |
| Transmission Model | Wanliyang 545 |
| Transmission Gear | 5 Forward Gear, 1Back Gear,Rear High Speed Controller |
| Drive Mode | 4x2 |
| Front Axle Model | 1098 |
| Rear Axle Model | 1098 |
| Tire Model | 750x-6 Line Tire, Rear Double Tyre One Side, |
| No.of Bottom Spring Plate | Front 10 PCS, Rear 10 PCS, Spare 6PCS |
| Dimension of Bottom Spring Plate | Length 70mm, Width 10mm |
| Size of the Bucket:Length×width×height | 3000mm*1800mm*600mm |
| Type of Bucket | U type Bucket |
| Thickness of Bucket Steel Plate | bottom 8mm side 6mm |
| Unloading Type | Hydraulic Double Top Dump |
| Steering Type | Hydraulic power steering |
| Braking Type | Air Brake |
| Cabin | Canopy |
| Driving Position | Left Hand Drive |
| Cooling sytem | Standard Water Cooling System |
| Loading Capacity | 7 Tons |
