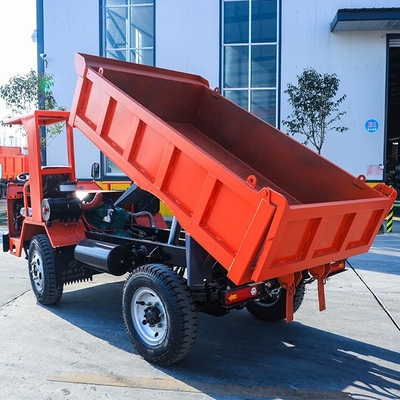

Product parameters of Mini Underground Mining Dump Truck with Loading Capacity 1ton to 5 tons
Beijun underground tunnel dump truck is a specialized vehicle designed to operate effectively in underground environments. Its compact and agile design allows it to maneuver with ease in narrow spaces, while its enhanced safety features ensure that it can operate safely in hazardous conditions. The truck's robust performance enables it to transport heavy loads efficiently, while its durable construction ensures that it can withstand the harsh conditions of underground mining and construction operations.
One of the key advantages of the Beijun underground tunnel dump truck is its low maintenance and operating costs. Its advanced technology and efficient design reduce the need for frequent repairs and maintenance, making it a cost-effective choice for businesses and organizations. Overall, the Beijun underground tunnel dump truck offers a range of features and benefits that make it an ideal choice for a variety of tasks in narrow underground spaces, including its compact and agile design, enhanced safety features, robust performance, high bearing capacity and durability, and low maintenance and operating costs.
| Model | UQ-5 |
| Engine Model | FAW - 4DW92-73 |
| Engine Power | 54KW/73HP |
| Transmission Model | WANLIYANG 530 |
| Transmission Gear | 5 Forward Gear, 1Back Gear,Rear High Speed Controller |
| Drive Mode | 4x2 |
| Front Axle Model | 1069 |
| Rear Axle Model | 1069 |
| Tire Model | 700x16 Line Tire, Rear Double Tyre One Side, |
| No.of Bottom Spring Plate | Front 10 PCS, Rear 10 PCS, Spare 6PCS |
| Dimension of Bottom Spring Plate | Length 70mm, Width 100mm |
| Size of the Bucket:Length×width×height | U type Bucket 2800mm*1600mm*550mm |
| Type of Bucket | |
| Thickness of Bucket Steel Plate | bottom 8mm side 6mm |
| Unloading Type | Hydraulic Double Top Dump |
| Steering Type | Hydraulic power steering |
| Braking Type | Air Brake |
| Cabin | Canopy with Glass and Rain Bush |
| Driving Position | Left Hand Drive |
| Cooling sytem | Standard Water Cooling System |
| Loading Capacity | 6 Tons |
