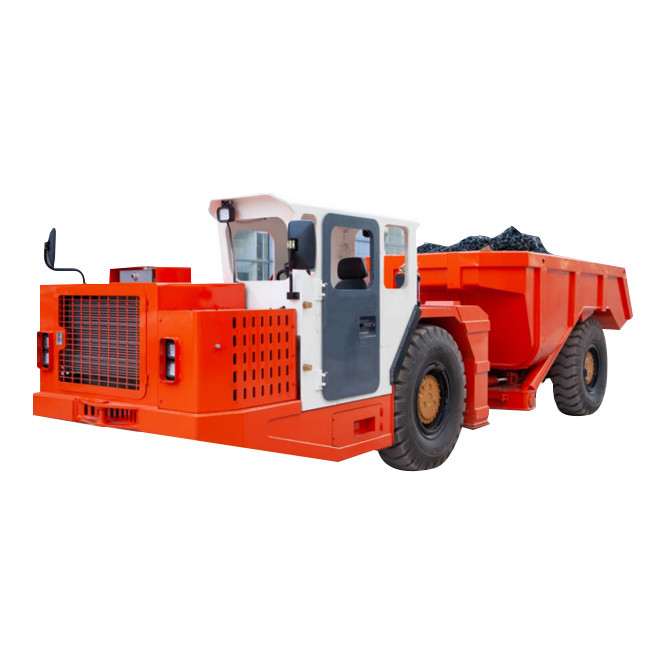

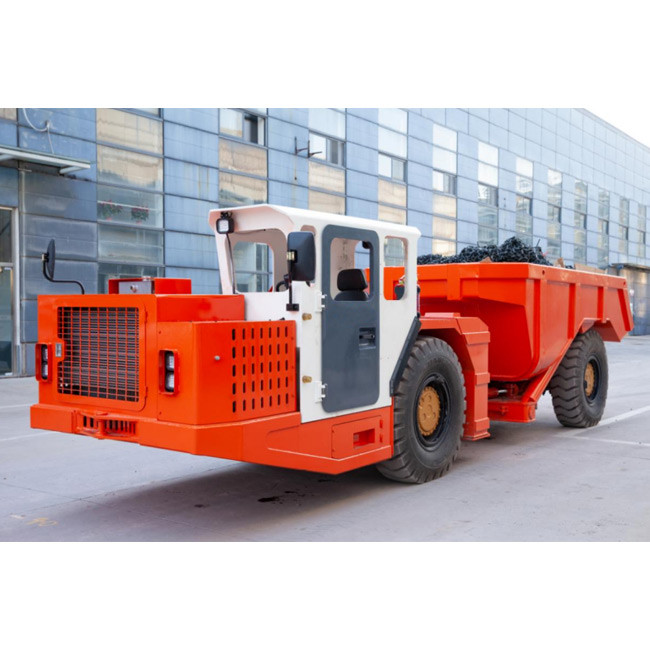

XTUK-12 Articulated Dumping Truck With A Carrying Capacity Of 12 Tons
No. | Item | data |
1 | Volume of standard bucket | 6.0 m³ |
(SAE heaped) | ||
2 | Rated Payload | 12000kg |
(tramming capacity) | ||
3 | Unloading (Dumping) angle of dump box | 70° |
4 | Approach angle | 15° |
5 | Unladen Vehicle Weight (UVW) | 14500kg |
6 | Full load operating weight | 27500kg |
7 | Oscillation Angle | ±7° |
8 | Grade ability (full load) | ≥14° |
9 | Min. Steering Radius | 4420±150mm(inner) |
7350±150mm(outer) | ||
10 | Gears | Hydraulic power shifting |
Forward: 4 gears | ||
Reverse: 4 gears | ||
11 | Torque converter | DANAC270 |
12 | Transmission | DANA R32000 |
13 | Axles | 4-wheel Rigid axles, with fully enclosed, multiple wet discs brakes at each wheel end. SAHR. |
14 | Brakes system | spring apply hydraulic release |
15 | Engine/power | DEUTZ BF4M1013EC / 115KW |
16 | Overall dimension (tramming) (L*W*H) | 8250×1980×2300 mm |
