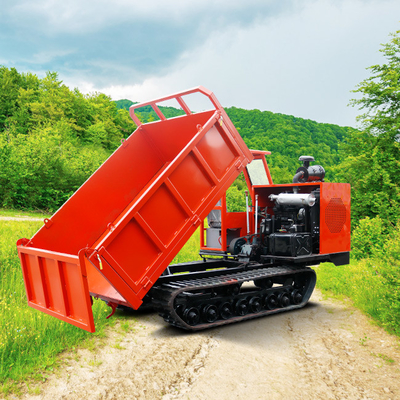

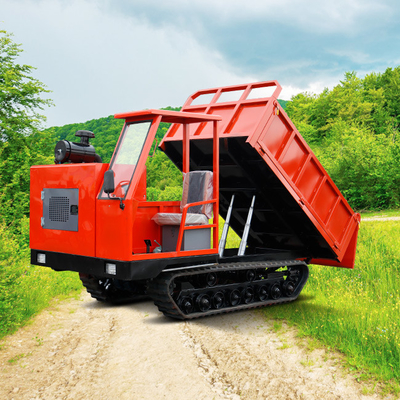

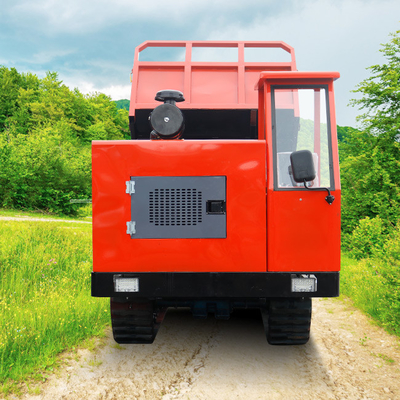

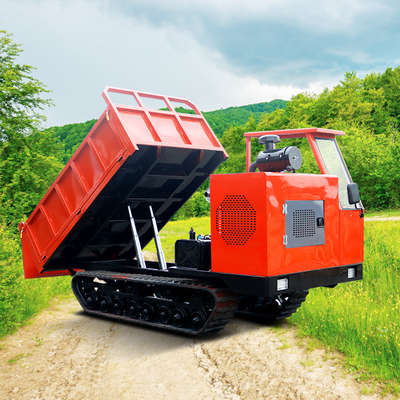

Product parameters of 6 Ton Crawler Dumper Truck
Driven by a diesel engine, the horsepower is stronger, the gearbox is front-mounted, the center of gravity is stable, the climbing ability is stronger, the tie rod operation panel adopts wet friction disc brakes, the brake and steering are the same fork, the operation adjustment is more convenient, and the steering action is softer. Using domestic engine, gearbox, low speed and high torque, the climbing performance is greatly improved.With superior waterproof performance, high-level waterproof sealing treatment is adopted for vehicle lines and electrical appliances, which effectively avoids the phenomenon of electric leakage due to excessive water in the roadway.Large angle steering, smaller turning radius, more suitable for complex road conditions with narrow and curved roadways.Domestically used regular steel frames for automobiles are more tough than traditional riveted and welded frames, and they remain intact after heavy pressing.All parts are all national first-line brand products, with strong versatility and quality reaching domestic level.
All-terrain crawler dumper, the crawer dumper replaces traditional wheeled walking with rubber tracks,large carrying capacity, strong grip and low noise, at the same time, the crawler type walking device increases the contact area between the machine and the ground, Do not harm farmland and roads, Has good driving and through performance, it can adapt to complex and difficult road conditions such as paddy fields, marshes, and muddy field roads. The specific size can be customized according to your needs. Strong carrying capacity, strong climbing ability, simple operation and convenient maintenance.
length*width*height | 3700*1700*2080mm |
Cargo box size | 2400*1500*600 bottom 2 sides 2 |
launch brand | Weichai Jiaxin |
engine model | 4105 |
Model model | Guli 29 |
gear | Top 3 inverted 1 high and low speed |
crawler | Engineering rubber tracks |
Track model | 320*90*56mm |
Hydraulic dump function | Single top dump |
Bearing weight | 6 tons |
Cargo box height from ground | 58mm |
uphill angle | 35 degrees |
Single wheel side system | Full 180 floating wheels |
Start mode | Electric start |
Weight | 2200kg |
