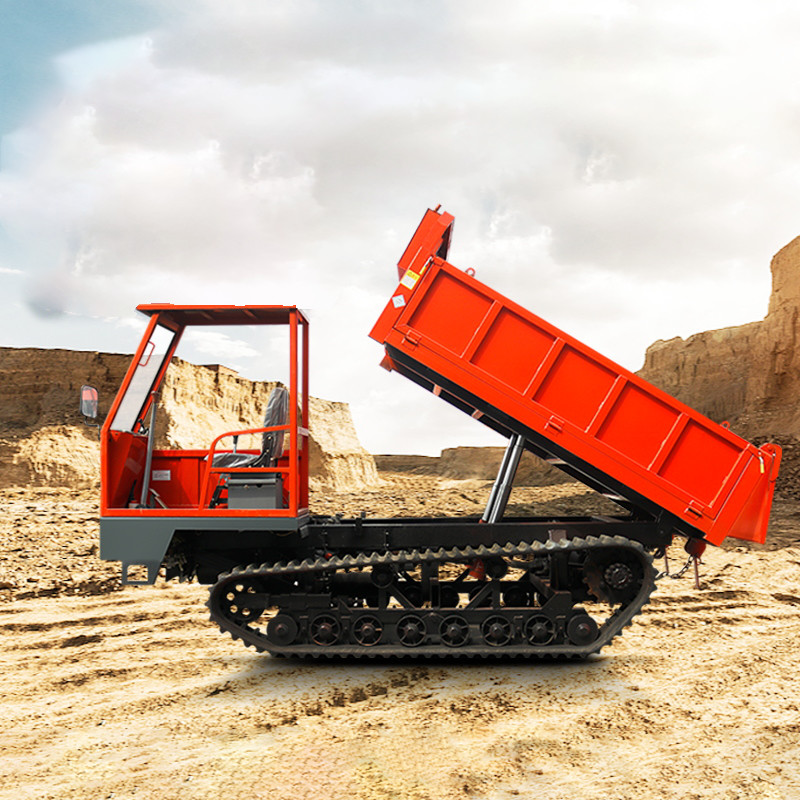

Product parameters of 8 Ton Crawler Dumper Truck
1. Widely applicable, with a simple structure, stable transmission, labor-saving operation, and easy implementation of automated control.
2. Suitable for complex road conditions such as swamps, riverbanks, deserts, paddy fields, tropical rainforests, snow, and ice.
3. Single cylinder power system with low fuel consumption.
4. Strong traction, good climbing and gripping performance, and strong transportation capacity.
5. Small turning radius, flexible maneuverability, especially suitable for narrow areas, reducing the cost of road construction.
6. Equipped with electric start, centralized handle, easy to operate.
length*width*height | 3700*1700*2080mm |
Cargo box size | 2400*1500*600 bottom 2 sides 2 |
launch brand | Weichai Jiaxin |
engine model | 4105 |
Model model | Guli 29 |
gear | Top 3 inverted 1 high and low speed |
crawler | Engineering rubber tracks |
Track model | 320*90*56mm |
Hydraulic dump function | Single top dump |
Bearing weight | 6 tons |
Cargo box height from ground | 58mm |
uphill angle | 35 degrees |
Single wheel side system | Full 180 floating wheels |
Start mode | Electric start |
Weight | 2200kg |
