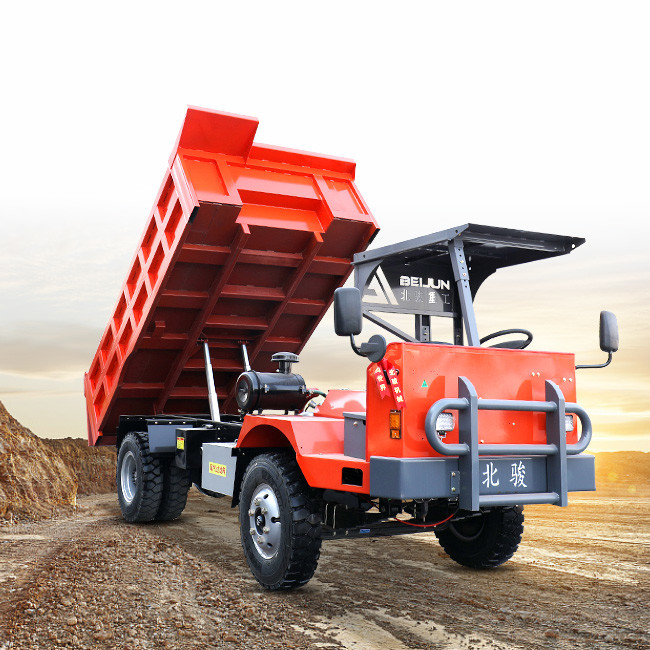

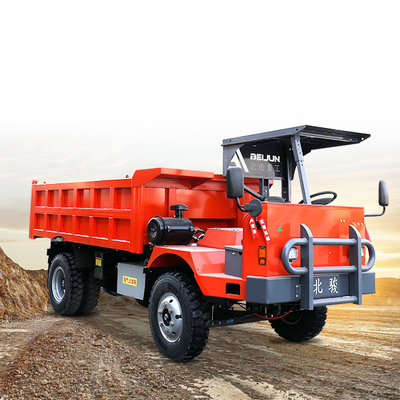

Product parameters of 12 tons Underground Mining Truck
Mining vehicles belong to non road vehicles and are mainly used in mines. In engineering, it is more durable and capable of carrying more weight than ordinary heavy-duty vehicles. From a structural perspective, there seems to be no difference between mining trucks and regular dump trucks, it just seems to be large. In fact, mining trucks have essential differences in design concepts from ordinary dump trucks. Ordinary dump trucks are designed and manufactured to meet the needs of road transportation, while mining trucks are designed and manufactured to meet the needs of mining construction operations. The entire vehicle and usage of mining trucks consider the working environment of the mine. The 12 ton mining electric locomotive working in underground mines does have some special technical requirements. Due to the high safety risks often present in underground mining environments, mining vehicles need to have higher safety and reliability. This means that the electric system of the vehicle must be able to operate for a long time under harsh working conditions and have good explosion-proof performance.
Mine transport vehicles, also known as mine four different types, are commonly known as underground dump trucks. They are approximately divided into underground specialized transport vehicles such as 5 tons, 8 tons, 12 tons, 15 tons, 20 tons, and 25 tons. According to the requirements of underground dump trucks in China, they must comply with the KA standard for mine use in order to perform good underground operations. The whole vehicle breaks through traditional technology, is produced separately, can be freely disassembled and assembled, and is convenient for mine use and after-sales service. Our company strictly inspects and achieves a certain level of quality in scientific research, production, and assembly processes. Compared with traditional riveted frames, ordinary riveted frames are more resilient and remain unchanged even under heavy pressure.
Model | UQ-12 |
Engine Model | YUCHAI 4102 with Turbocharge |
Engine Power | 81KW/110HP |
Total Dimension | 5000*2000*1700mm |
Transmission Model | Wanliyang 545 |
Transmission Gear | 5 Forward Gear, 1Back Gear,Rear High Speed Controller |
Drive Mode | 4x2 |
Front Axle Model | 1098 |
Rear Axle Model | 1098 |
Tire Model | 825-16 Radial steel tire, Rear Double Tyre One Side, |
No.of Bottom Spring Plate | Front 10 PCS, Rear 10 PCS, Spare 6PCS |
Dimension of Bottom Spring Plate | Length 70mm, Width 10mm |
Size of the Bucket:Length×width×height | 3400mm*2000mm*700mm |
Type of Bucket | U-type |
Thickness of Bucket Steel Plate | bottom 8mm side 6mm |
Unloading Type | Hydraulic Double Top Dump |
Steering Type | Hydraulic power steering |
Braking Type | Air Brake |
Cabin | Canopy |
Driving Position | Left Hand Drive |
Cooling sytem | Standard Water Cooling System |
Loading Capacity | 12 Tons |
