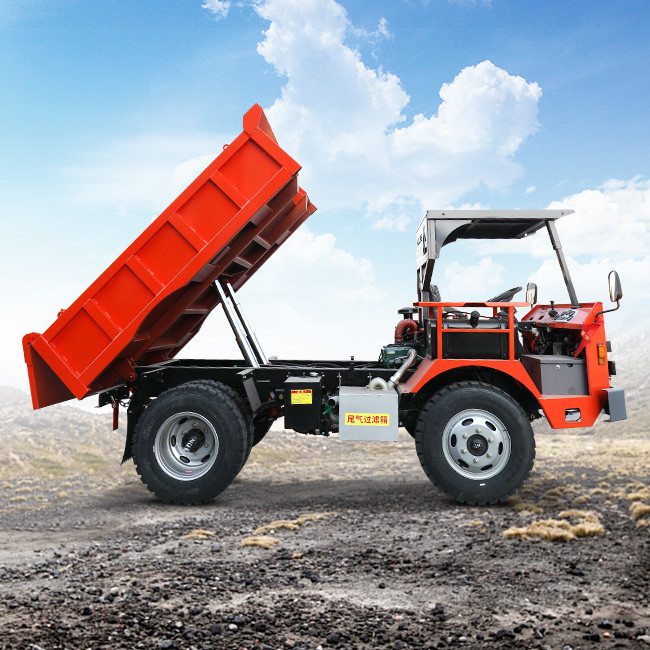

Stable Durable 3 Ton Underground Mining Truck Ultra Narrow Axle Leaf Spring

1
MOQ
Stable Durable 3 Ton Underground Mining Truck Ultra Narrow Axle Leaf Spring
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: CHANGCHAI 490
Engine Power: 63 HP
Transmission Model: Ningjing 130
Drive Mode: 4x4
Dimension Of Bottom Spring Plate: Length 71mm, Width 10mm
Loading Capacity: 3 Tons
Type Of Bucket: U Type Bucket
Thickness Of Bucket Steel Plate: Bottom 6mm Side 4mm
High Light:

3 Ton underground mining truck

,

Ultra Narrow Axle underground mining truck

,

3 Ton underground dump truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-3
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7 - 21 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of 3 Ton Dump Truck



Characteristics of mining four wheeled vehicles: There are a large number of applicable areas: a large number of mining four wheeled vehicles can be transported in areas such as mines, tunnels, mines, mountain roads, mud roads, etc. Diesel engine: strong kinetic energy, small size, light weight, and low vibration. According to different power and performance, four cylinder internal combustion engines, six cylinder internal combustion engines, and 4108 diesel engines can be selected. A mining car is a narrow gauge railway transport vehicle used in mines to transport loose materials such as coal, ore, and waste rock. It is generally pulled by a locomotive or winch. Mining cars are divided into five categories based on their structure and unloading methods: fixed mining cars (material cars, flatbed cars), tipping bucket mining cars, single-sided curved rail side unloading mining cars, bottom (side) unloading mining cars, and shuttle mining cars. Relying on specialized unloading equipment for unloading, the commonly used volume is 1.1-3.3m, consisting of components such as the car body, frame, wheelset, buffer, and connector. The car body is fixedly connected to the frame. The car body is a box that bears cargo load, welded from low-carbon steel plates. The frame is the basic component of the mining car, consisting of two longitudinal beams and crossbeams to form a frame that can withstand traction. Buffers are installed at both ends of the frame to alleviate the impact force between two mining cars. Non highway mining dump trucks mainly consist of an engine, chassis, control compartment (front), generator system, body (actuation system), and auxiliary power system. The characteristics of non highway mine dump trucks are: large tonnage, low consumption, high technical content, and expensive price.





Model UQ-3
Engine Model CHANGCHAI 490
Engine Power 63 HP
Transmission Model Ningjing 130
Transmission Gear 4 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x4
Front Axle Model CHITONG ISUZU Axle
Rear Axle Model CHITONG ISUZU Axle
Tire Model 700x16 Line Tire,
Rear Single Tyre One Side,
No.of Bottom Spring Plate Front 7 PCS, Rear 8 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 10mm
Size of the Bucket:Length×width×height 2400mm*1300mm*450mm
Type of Bucket U type Bucket
Thickness of Bucket Steel Plate bottom 6mm side 4mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 3 Tons



Stable Durable 3 Ton Underground Mining Truck Ultra Narrow Axle Leaf Spring 0Stable Durable 3 Ton Underground Mining Truck Ultra Narrow Axle Leaf Spring 1Stable Durable 3 Ton Underground Mining Truck Ultra Narrow Axle Leaf Spring 2Stable Durable 3 Ton Underground Mining Truck Ultra Narrow Axle Leaf Spring 3Stable Durable 3 Ton Underground Mining Truck Ultra Narrow Axle Leaf Spring 4
