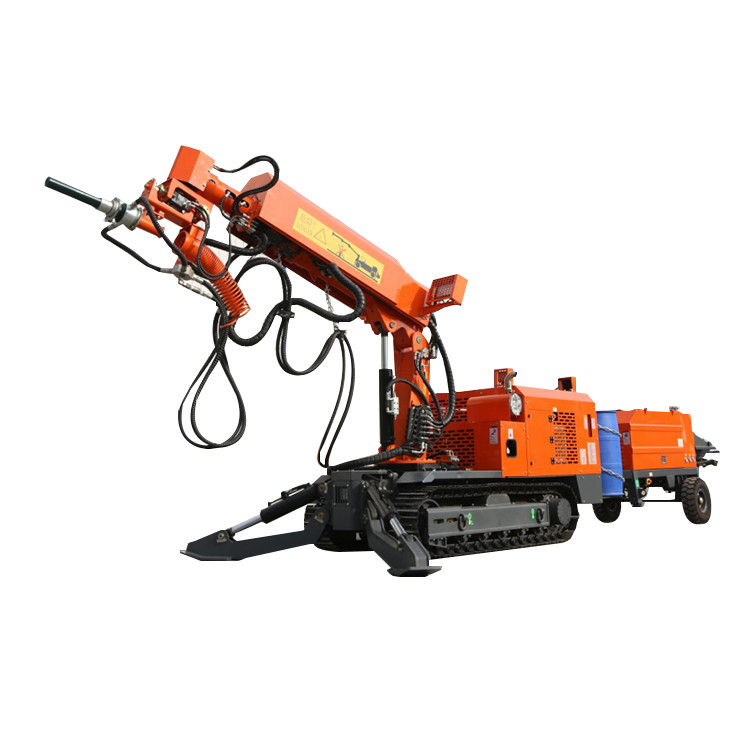

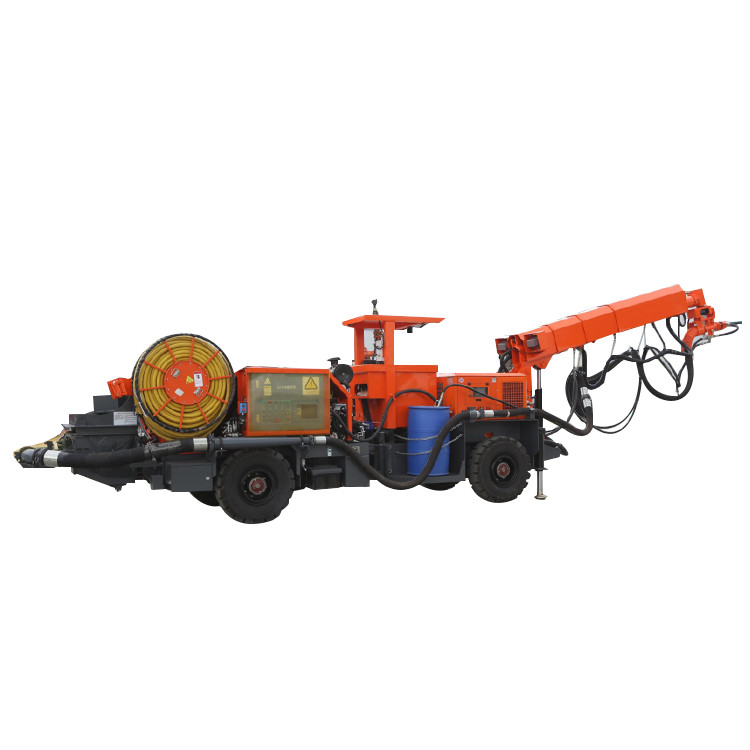

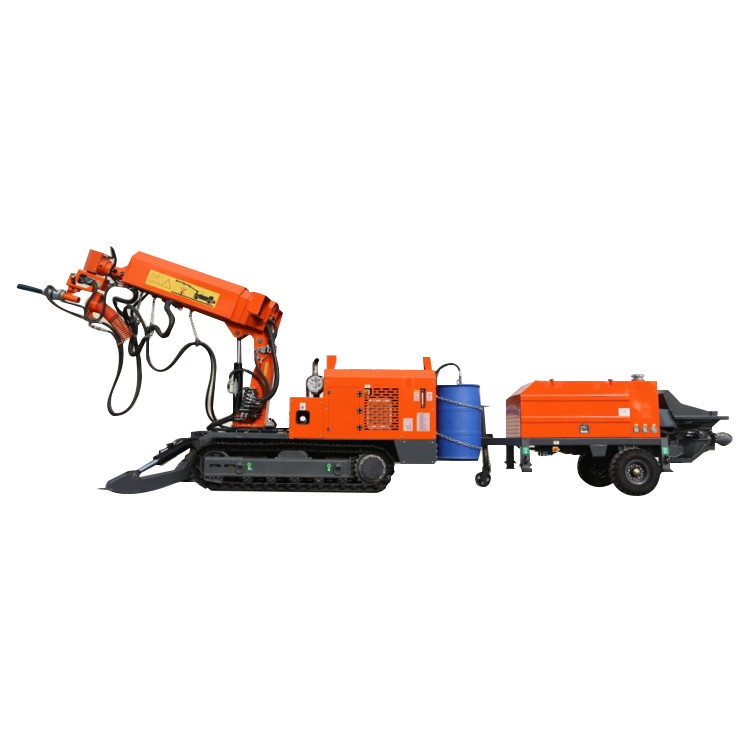

4TNV88 Diesel Engine Concrete Shotcrete Sprayer Machine With Telescopic Boom

1
MOQ
USD 145000-200000 Set
Price
4TNV88 Diesel Engine Concrete Shotcrete Sprayer Machine With Telescopic Boom
Features Gallery Product Description Request A Quote
Features
Specifications
(L*W*H)mm: 4105x1400x2540
Total Weight Kg: 4605+500
Rated Power Of Electrical Motor KW: 11
Rated Power Of Diesel Engine KW: 27
Diesel Engine Model: 4TNV88
Max Traveling Speed Km/h: 2.5/4.3
Max. Climbing Capacity °: 25
Type Of Boom Structure: Telescopic
High Light:

Telescopic Boom Shotcrete Sprayer

,

4TNV88 Engine Shotcrete Sprayer

,

4TNV88 Engine concrete shotcrete machine

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO,TUV
Model Number: HP6
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 14-33 days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Product Description

Advantages

Adopted engineering chassis with 4WD. strong climbing ability, more steady in balance
Drive by power electriciy, improve the working conditon without ar polution. diese engine for drive back outrigger and change to other working face
Accelerator match with concrete automatcaly efectvely reduce the consumpton of accelerato, Max output 3cbm/hrs, rebound rate can be controled under 15%
Flexible working arm with wide working coverage,without any blind spot
High eficiency remote control: Remote control all spray movement, adjust the accelerator anytime
High-end hydraulic system. adopted with import hydraulic system. big flow big hydraulic pressure. efficient. steady quality

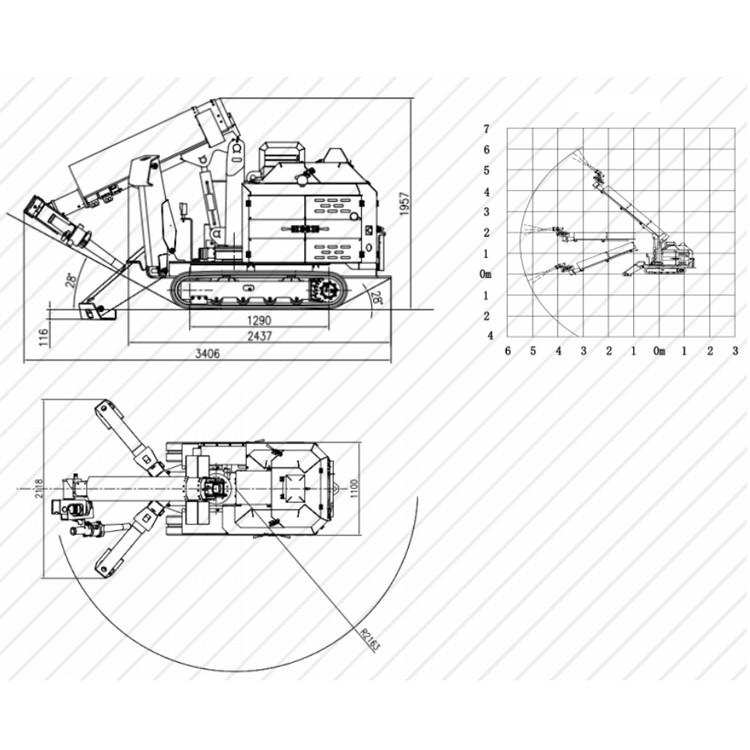

Complete machine (L*W*H)mm mm 4100x1400x2540
Total Weight kg 4600+500
Rated power of electrical motor kW 11
Rated power of diesel engine kW 27
chassis diesel engine model   4TNV88
Max traveling speed Km/h 2.5/4.3
Max. climbing capacity ° 25
Boom type of boom structure   telescopic
Maximum vertical spaying height m 8
Maximum horizontal spaying width m 2×6.5
Spraying depth m 2.5
Boom pitching angle ° -35~+60
Boom telescopic mm 2900
Nozzle rotary angel ° 360
Nozzle swing angel ° ° 240
electrical system External power supply   380V/50HZ
mode of operation   Wireless remote control

4TNV88 Diesel Engine Concrete Shotcrete Sprayer Machine With Telescopic Boom 04TNV88 Diesel Engine Concrete Shotcrete Sprayer Machine With Telescopic Boom 14TNV88 Diesel Engine Concrete Shotcrete Sprayer Machine With Telescopic Boom 24TNV88 Diesel Engine Concrete Shotcrete Sprayer Machine With Telescopic Boom 3
