Underground Mine Wet Concrete Shotcrete Sprayer Machine 13500kg

1
MOQ
USD 45000-50000 Set
Price
Underground Mine Wet Concrete Shotcrete Sprayer Machine 13500kg
Features Gallery Product Description Request A Quote
Features
Specifications
Weight(kg): 13500
Electrical Motor Power KW: 37/45high Altitude
Engine Power KW: 59
Engine Model: YCD4T23T8-80
Front And Rear Axle Drive: 4×4
Max. Traveling Speed Km/h: 9
Max. Tramming Gradient °: 20
Max. Outer Turning Radius Mm: 6200
Min. Inner Turning Radius Mm: 3800
Highlight:

Shotcrete Sprayer Machine 13500kg

,

underground mine Shotcrete Sprayer Machine

,

13500kg concrete shotcrete machine

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO,TUV
Model Number: UPS-20J
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 14-30 days
Supply Ability: 100 Set/Sets per Month
Product Description

UPS-20J Mining Concrete Sprayer
1 Specially designed for wet spraying of underground mine. Theoretical Max.capacity 20 m3/h.
2 Adopted tunnel W*H 3.5×3.5~8×8m.Spraying
3 Control by controller and touch screen display.
4 Built in air compressor; PLC Automatic control of accelerator addition.



Whole machine (L×W×H ) mm 7500 ×2145×2500
Weight kg 13500
Electrical motor power kW 37/45high altitude
Engine power kW 59
Chassis Engine model   YCD4T23T8-80
Front and rear axle drive - 4×4
Max. traveling speed Km/h 9
Max. tramming gradient ° 20
Max. outer turning radius mm 6200
Min. inner turning radius mm 3800
  Boom structure mode   Telescopic
Max. Spraying vertical height m 8
Max. Spraying horizontal width m 2x6.5
Spraying depth m 2.5
Boom pitching angle ° -35-+60
Boom telescopic scope mm 2900
Nozzle rotating angle ° 360
Nozzle swing angle ° 240
Boom system Theoretical pumping capacity m3/h 20
Pumping output pressure Mpa <7.5
Pumping cylinder inner dia. ×stroke mm Φ160×800
Pumping cylinder dia. mm Φ125-Φ80
Nozzle diameter mm Φ50
Electrical system Cable m 50
External power supply   380V/50HZ
Operation   Wireless remote control
Control   Control by controller + touch screen display
Accelerator system Air compressor displacement m3/min 8
Air compressor working pressure Mpa 0.5
Dosing max. output L/h 500
Dosing system pressure Mpa 0.5
Additive tank capacity L 200
Pick up concrete height mm 1350

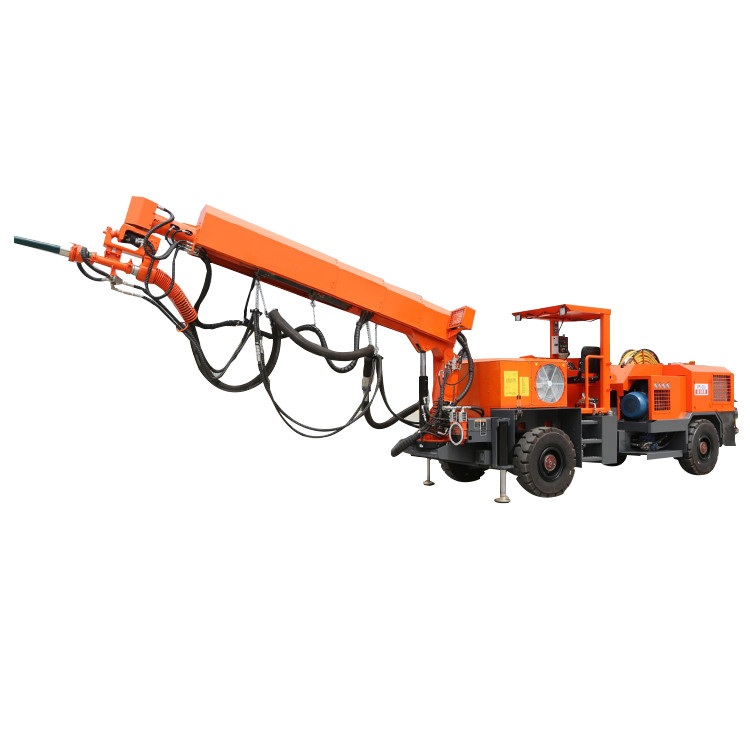

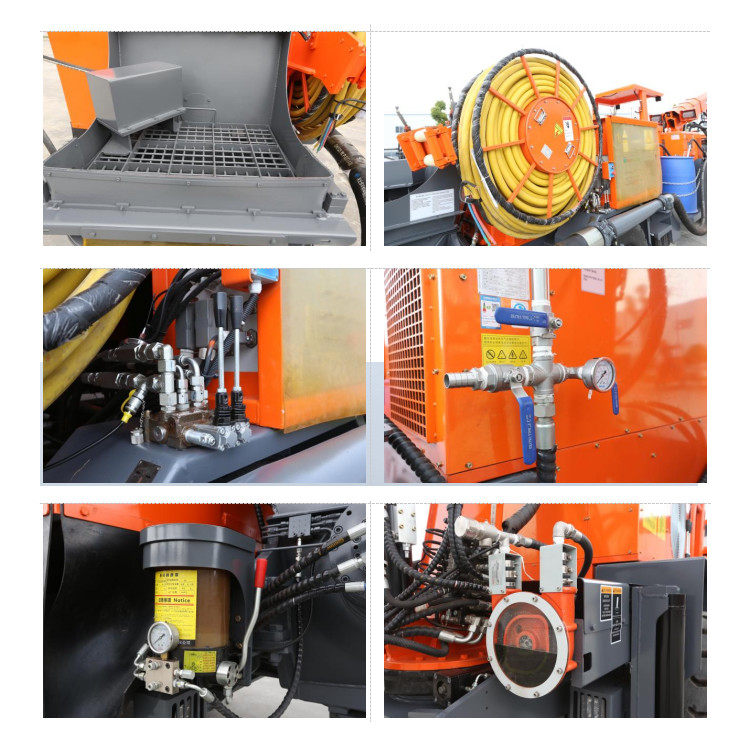

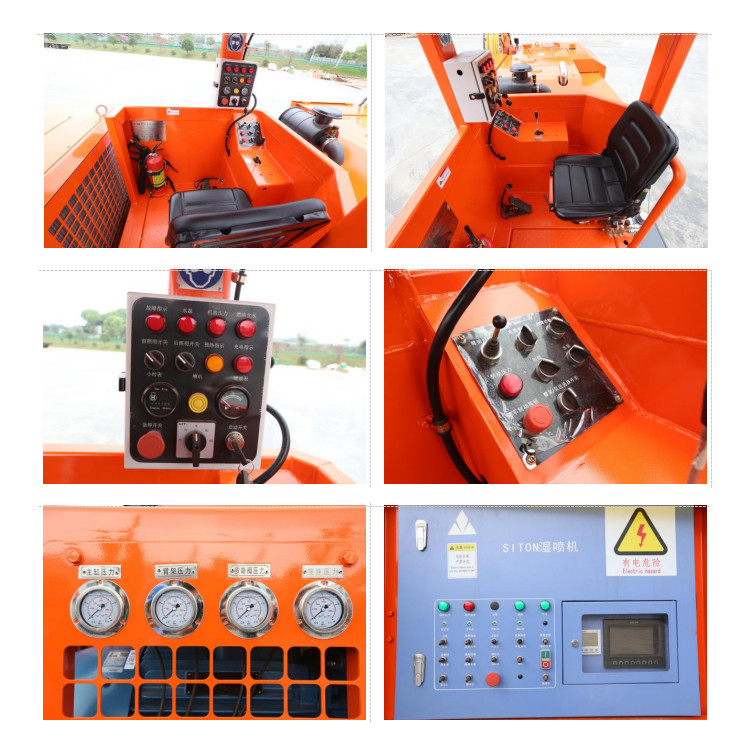

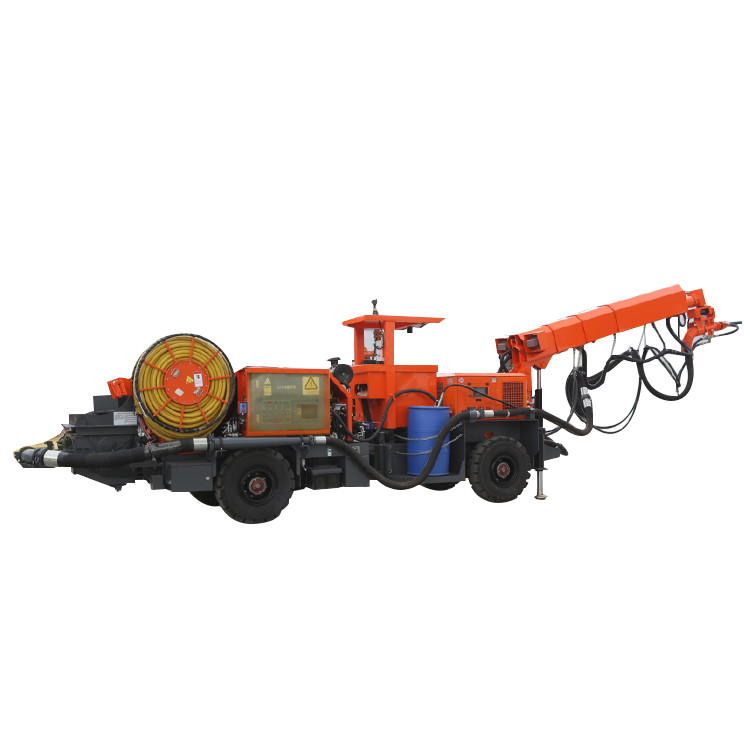

Underground Mine Wet Concrete Shotcrete Sprayer Machine 13500kg 0Underground Mine Wet Concrete Shotcrete Sprayer Machine 13500kg 1Underground Mine Wet Concrete Shotcrete Sprayer Machine 13500kg 2Underground Mine Wet Concrete Shotcrete Sprayer Machine 13500kg 3
