Mobile Nozzle Carrier Underground Shotcrete Sprayer 11kw Small Volume

1
MOQ
USD 145000-200000 Set
Price
Mobile Nozzle Carrier Underground Shotcrete Sprayer 11kw Small Volume
Features Gallery Product Description Request A Quote
Features
Specifications
(L*W*H)mm: 4100x1400x2540
Total Weight Kg: 4600+500
Rated Power Of Electrical Motor KW: 11
Rated Power Of Diesel Engine KW: 27
Diesel Engine Model: 4TNV88
Max Traveling Speed Km/h: 2.5/4.3
Max. Climbing Capacity °: 25
Type Of Boom Structure: Telescopic
High Light:

Underground Shotcrete Sprayer 11kw

,

Nozzle Carrier Shotcrete Sprayer

,

11kw concrete shotcrete machine

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO,TUV
Model Number: HP6
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 14-30 days
Supply Ability: 100 Set/Sets per Month
Product Description

Advantages
1. Small volume. Small occupation,easy to move,good at samll crosssection tunnel,large cross section tunnel,multi-steps operation.
2. Crawling type,can running in difficult working sites and great climbing capacity.
3. Shotcrete system and pumping system seperated design. The pumping trailer can be far away from the working sites,easy for concrete conveying.
4. Full remote controlling+local operation type. Each type can operate all moves,and can switch each other,safe and convienent.
5. Simplify arm structure. More freely,easy to operate.
6. Diesel engine+electric engine double power type design. Can switch easily,avoid the effects by power off .

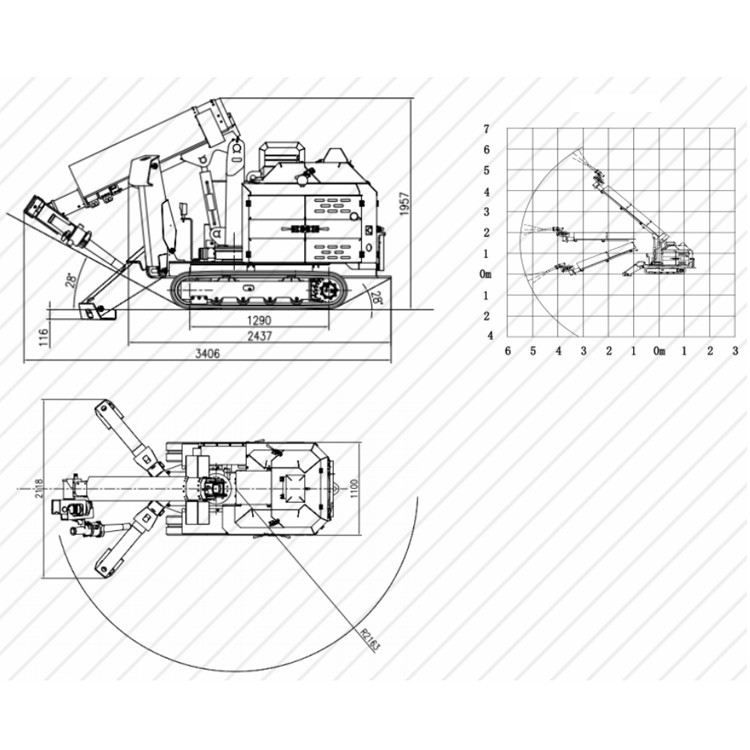

Complete machine (L*W*H)mm mm 4100x1400x2540
Total Weight kg 4600+500
Rated power of electrical motor kW 11
Rated power of diesel engine kW 27
chassis diesel engine model   4TNV88
Max traveling speed Km/h 2.5/4.3
Max. climbing capacity ° 25
Boom type of boom structure   telescopic
Maximum vertical spaying height m 8
Maximum horizontal spaying width m 2×6.5
Spraying depth m 2.5
Boom pitching angle ° -35~+60
Boom telescopic mm 2900
Nozzle rotary angel ° 360
Nozzle swing angel ° ° 240
electrical system External power supply   380V/50HZ
mode of operation   Wireless remote control

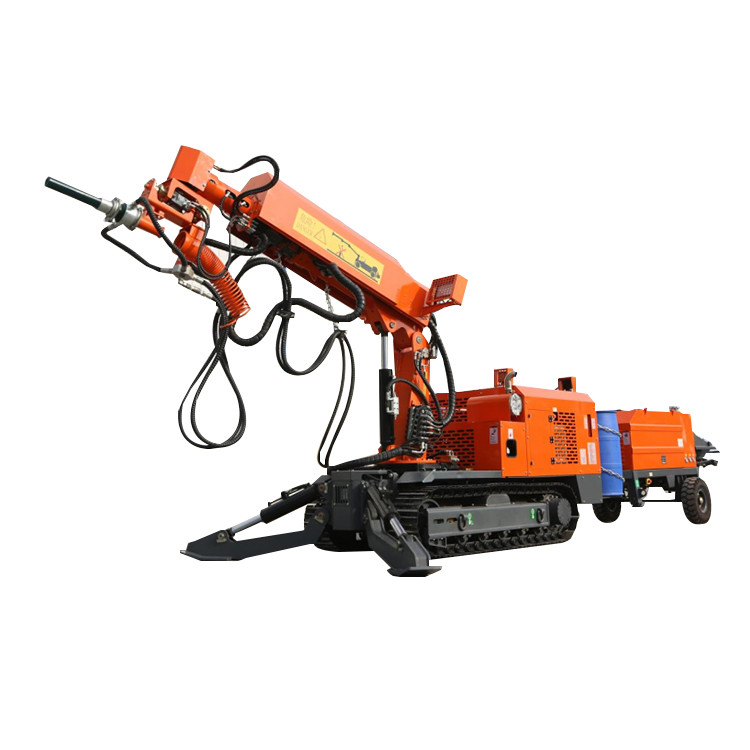

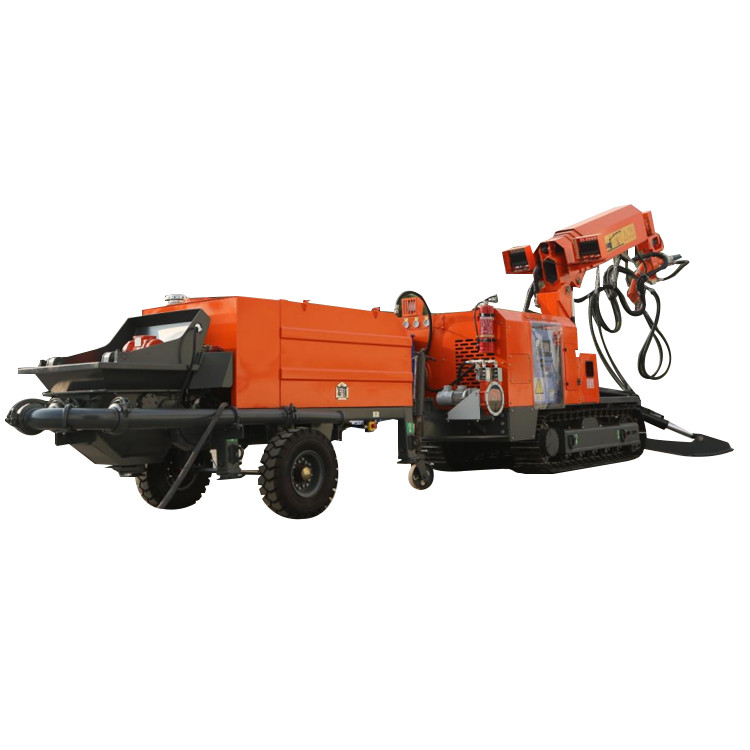

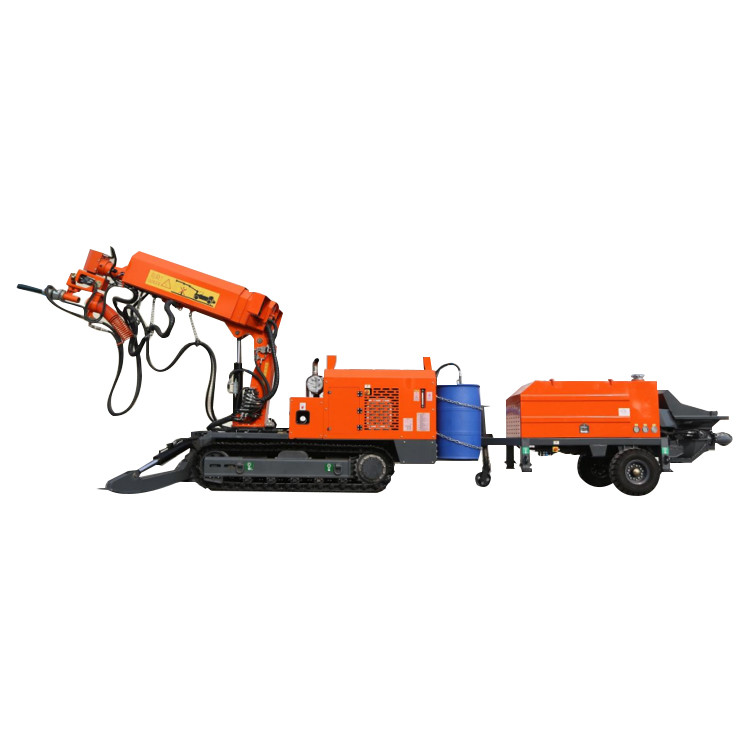

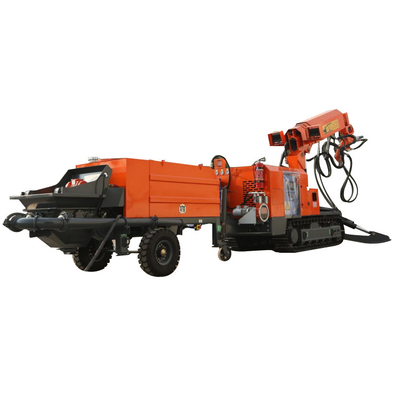

Mobile Nozzle Carrier Underground Shotcrete Sprayer 11kw Small Volume 0Mobile Nozzle Carrier Underground Shotcrete Sprayer 11kw Small Volume 1Mobile Nozzle Carrier Underground Shotcrete Sprayer 11kw Small Volume 2Mobile Nozzle Carrier Underground Shotcrete Sprayer 11kw Small Volume 3
