Zero Emission Lifting Electric Mining Truck EV Dump Truck 90000kg

1
MOQ

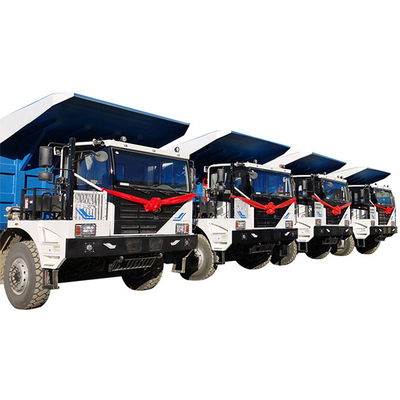

Zero Emission Lifting Electric Mining Truck EV Dump Truck 90000kg
Features Gallery Product Description Request A Quote
Features
Specifications
Product Configuration Description: 287 KWh Single Motor
Transmission Model: TS-0725
Front Axle Rated Load (Kg): 20000*1
Rated Load Of Rear Axle (Kg): 35000*2
Tire Specifications: Radial Tire 14.00R25
Body Size (mm): 5800*3200*1800
Total Mass (kg): 90000
Curb Weight (kg): 35000
High Light:

EV Dump Truck 90000kg

,

Electric Mining Truck 90000kg

,

Zero Emission Electric Mining Truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO,TUV
Model Number: BJ90A
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 14-30 days
Supply Ability: 100 Set/Sets per Month
Product Description

Hot Sale Lifting Electric Mining EV Dump Truck electric dumper



Product Features:

The 90 Ton Mining Tipper Heavy Duty Dumper Electric Mining Truck is a robust and powerful vehicle designed to handle heavy-duty industrial applications, particularly in the mining industry. With its massive 90-ton capacity, this truck is an efficient and productive option for companies that need to transport large loads of materials in a single trip.

One of the significant advantages of the electric mining truck is its zero-emission operation, which can help companies reduce their carbon footprint and comply with environmental regulations. The truck's advanced safety features, such as collision avoidance systems and advanced braking technology, make it a safer option for workers and other equipment on the job site.

The electric mining truck also offers significant cost savings over traditional diesel-powered trucks, with lower operating and maintenance costs that can help companies reduce expenses and improve profitability. The truck's energy recovery system can also help extend battery life and reduce the need for frequent charging, further enhancing its efficiency and cost-effectiveness.

Overall, the 90 Ton Mining Tipper Heavy Duty Dumper Electric Mining Truck is a capable and impressive vehicle that can help mining companies operate more efficiently, safely, and sustainably. As companies increasingly prioritize environmental responsibility and cost-effectiveness, electric trucks like this one are likely to become more popular in the mining and heavy industrial sectors.


Specification of Beijun Electric Mining Truck
Product configuration description 287 KWh single motor 350 KWh double motor
Product number BJ90A BJ90B
Best working Application Heavy downhill Heavy downhill
Dynamic parameters
Power system model single motor Dual motor
Rated power and speed kW/rpm 360/1492 (peak)
250/1492 (rated)
2 x 300/4670 (peak)
2×225/4670 (rated)
Maximum torque and speed Nm/rpm 2800/1492 (peak)
1600/1492 (rated)
2 x 700/4670 (peak)
2×460/4670 (rated)
Battery capacity kwh/displacement L 287 350
Gearbox
Transmission model TS-0725 7D20K
Drive axle
Front axle rated load (Kg) 20000*1 20000*1
Rated load of rear axle (Kg) 35000*2 35000*2
Tire specifications Radial tire 14.00R25 Radial tire 14.00R25
Cargo box parameters
Body size (mm) 5800*3200*1800 5900*3200*1800
Standard bucket capacity flat pack/stack (m³) 30/36 30/36
Weight parameter
Total mass (kg) 90000 90000
Curb weight (kg) 35000 36000
Loading mass (kg) 55000 54000
Bridge load front/middle/rear (t) 20/35/35 20/35/35
Operational performance
Maximum speed km/h ≤40 ≤45
Maximum grade% ≥30 ≥35
Turning radius (front) mm ≤11000 ≤11000
