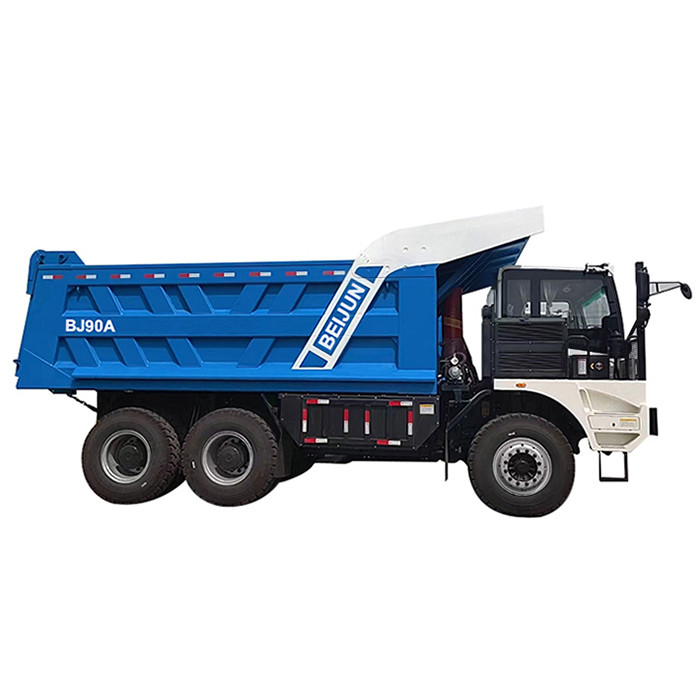

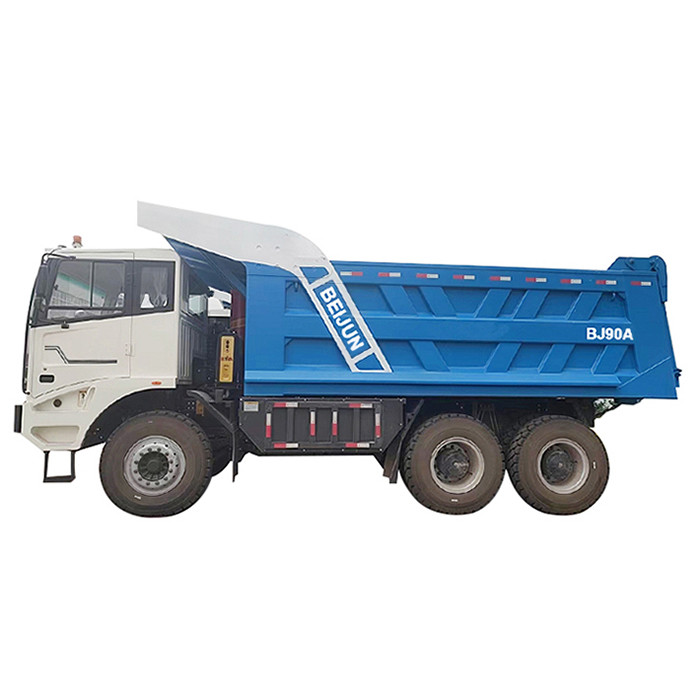

90 Ton Electric Powered Dump Truck Electric Tipper Truck TS-0725 Transmission Model

1
MOQ
90 Ton Electric Powered Dump Truck Electric Tipper Truck TS-0725 Transmission Model
Features Gallery Product Description Request A Quote
Features
Specifications
Product Configuration Description: 287 KWh Single Motor
Transmission Model: TS-0725
Front Axle Rated Load (Kg): 20000*1
Rated Load Of Rear Axle (Kg): 35000*2
Tire Specifications: Radial Tire 14.00R25
Body Size (mm): 5800*3200*1800
Total Mass (kg): 90000
Curb Weight (kg): 35000
Highlight:

90 Ton Electric Powered Dump Truck

,

90 Ton Electric Tipper Truck

,

TS-0725 Transmission Electric Tipper Truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO,TUV
Model Number: BJ90A
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 14-30 days
Supply Ability: 100 Set/Sets per Month
Product Description

Product Features:

The Beijun electric mining truck certainly seems like a promising option for companies operating in industrial settings. Its zero-emission operation, high safety features, and energy recovery system make it an eco-friendly and cost-efficient choice for transporting materials over short distances. Additionally, its high attendance rate and low maintenance cost are valuable benefits that can help reduce downtime and overall operating expenses.

As more companies prioritize sustainability and reducing their carbon footprint, electric vehicles like the Beijun electric mining truck are becoming increasingly popular in the industrial sector. By reducing emissions and improving energy efficiency, these vehicles can help companies meet their environmental targets while also improving their bottom line.

It will be interesting to see how the adoption of electric trucks like the Beijun electric mining truck evolves in the coming years, as more companies look to incorporate sustainable practices into their operations.


Specification of Beijun Electric Mining Truck
Product configuration description 287 KWh single motor 350 KWh double motor
Product number BJ90A BJ90B
Best working Application Heavy downhill Heavy downhill
Dynamic parameters
Power system model single motor Dual motor
Rated power and speed kW/rpm 360/1492 (peak)
250/1492 (rated)
2 x 300/4670 (peak)
2×225/4670 (rated)
Maximum torque and speed Nm/rpm 2800/1492 (peak)
1600/1492 (rated)
2 x 700/4670 (peak)
2×460/4670 (rated)
Battery capacity kwh/displacement L 287 350
Gearbox
Transmission model TS-0725 7D20K
Drive axle
Front axle rated load (Kg) 20000*1 20000*1
Rated load of rear axle (Kg) 35000*2 35000*2
Tire specifications Radial tire 14.00R25 Radial tire 14.00R25

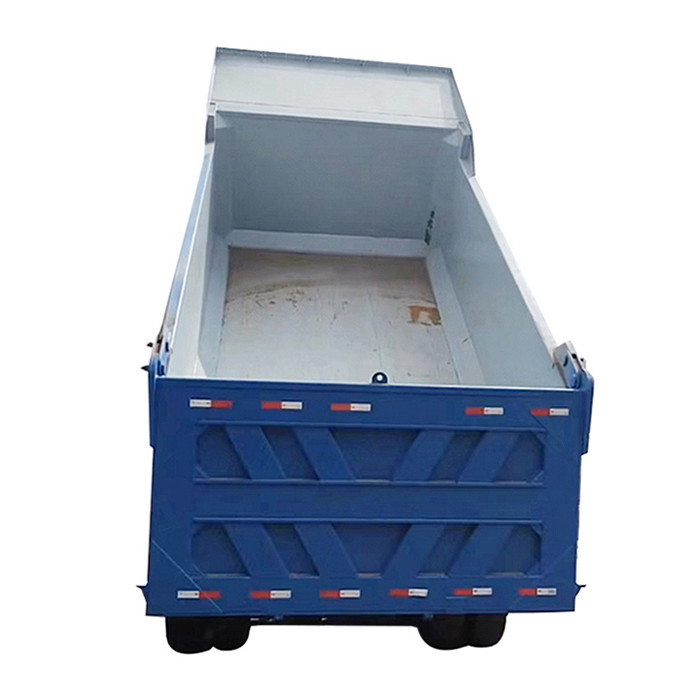

Cargo box parameters
Body size (mm) 5800*3200*1800 5900*3200*1800
Standard bucket capacity flat pack/stack (m³) 30/36 30/36
Weight parameter
Total mass (kg) 90000 90000
Curb weight (kg) 35000 36000
Loading mass (kg) 55000 54000
Bridge load front/middle/rear (t) 20/35/35 20/35/35
Operational performance
Maximum speed km/h ≤40 ≤45
Maximum grade% ≥30 ≥35
Turning radius (front) mm ≤11000 ≤11000
