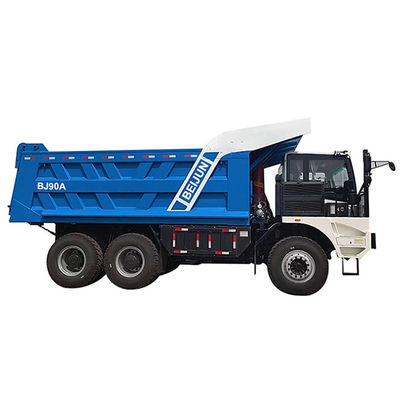

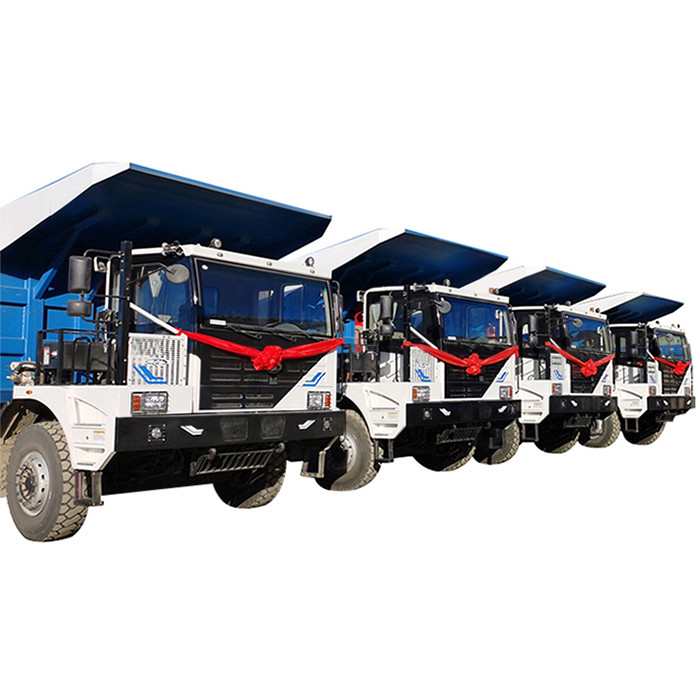

90 Tone Electric Mining Truck Zero Emission Environmental Friendly

1
MOQ
90 Tone Electric Mining Truck Zero Emission Environmental Friendly
Features Gallery Product Description Request A Quote
Features
Specifications
Product Configuration Description: 287 KWh Single Motor
Transmission Model: TS-0725
Front Axle Rated Load (Kg): 20000*1
Rated Load Of Rear Axle (Kg): 35000*2
Tire Specifications: Radial Tire 14.00R25
Body Size (mm): 5800*3200*1800
Total Mass (kg): 90000
Curb Weight (kg): 35000
High Light:

Electric Mining Truck Zero Emission

,

90 Tone Electric Mining Truck

,

electric dump truck Environmental Friendly

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO,TUV
Model Number: BJ90A
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 14-30 days
Supply Ability: 100 Set/Sets per Month
Product Description

Product Features:

Beijun electric mining truck's features make it a highly attractive option for companies operating in industrial settings. Its zero-emission operation is particularly useful in reducing carbon footprint, which many companies are prioritizing as sustainability becomes a more pressing concern. The truck's high safety features, energy recovery system, and dynamic performance also make it ideal for navigating challenging terrains and environments that are typical of the industries it serves.

The truck's low operating and maintenance costs are additional benefits that can help companies save money in the long run. By requiring less maintenance and having fewer moving parts than traditional diesel-powered trucks, the Beijun electric mining truck can help reduce downtime and keep operations running smoothly.

Overall, the Beijun electric mining truck's combination of environmental friendliness, safety, and efficiency make it a compelling option for companies looking to improve their material transportation operations. As the need for sustainable practices in the industrial sector continues to grow, it will be interesting to see how electric vehicles like the Beijun electric mining truck continue to evolve and be adopted by companies in a range of industries.


Specification of Beijun Electric Mining Truck
Product configuration description 287 KWh single motor 350 KWh double motor
Product number BJ90A BJ90B
Best working Application Heavy downhill Heavy downhill
Dynamic parameters
Power system model single motor Dual motor
Rated power and speed kW/rpm 360/1492 (peak)
250/1492 (rated)
2 x 300/4670 (peak)
2×225/4670 (rated)
Maximum torque and speed Nm/rpm 2800/1492 (peak)
1600/1492 (rated)
2 x 700/4670 (peak)
2×460/4670 (rated)
Battery capacity kwh/displacement L 287 350
Gearbox
Transmission model TS-0725 7D20K
Drive axle
Front axle rated load (Kg) 20000*1 20000*1
Rated load of rear axle (Kg) 35000*2 35000*2
Tire specifications Radial tire 14.00R25 Radial tire 14.00R25
Cargo box parameters
Body size (mm) 5800*3200*1800 5900*3200*1800
Standard bucket capacity flat pack/stack (m³) 30/36 30/36
Weight parameter
Total mass (kg) 90000 90000
Curb weight (kg) 35000 36000
Loading mass (kg) 55000 54000
Bridge load front/middle/rear (t) 20/35/35 20/35/35
Operational performance
Maximum speed km/h ≤40 ≤45
Maximum grade% ≥30 ≥35
Turning radius (front) mm ≤11000 ≤11000
