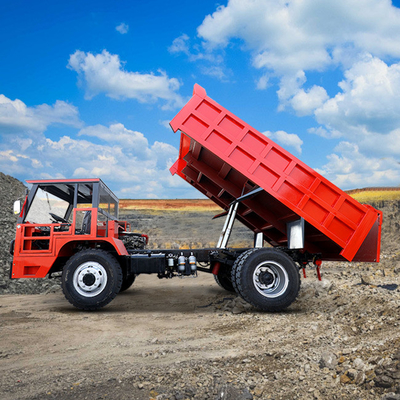

15 Ton Underground Dump Truck Ultimate Solution For Mining Operations

1
MOQ
USD 5000-15000 Set
Price
15 Ton Underground Dump Truck Ultimate Solution For Mining Operations
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUCHAI 4108 With Turbocharge
Engine Power: 118KW/160HP
Transmission Model: FASITE 8JS118
Front Axle Model: 1098
Dimension Of Bottom Spring Plate: Length 92mm, Width 13mm
Unloading Type: Hydraulic Double Top Dump
Type Of Bucket: U Type
Thickness Of Bucket Steel Plate: Bottom 10mm Side 8mm
High Light:

Mining Operations Underground Dump Truck

,

15 Ton Underground Dump Truck

,

15 Ton underground haul truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-15
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 8 - 17 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of Loading Capacity 15 tons Underground Mining Dump Truck





Non highway mine dump trucks have become the main transportation tool for open-pit mining development and production due to their advantages such as good mobility, fast turnover speed, heavy load, and large capacity. At present, only a few industrialized countries such as the United States, Japan, Belarus, and China are able to independently research and develop products, ranging from 100 tons to 360 tons. In 2005, the market capacity of the international mining vehicle market was around 1300 vehicles, with a total installed capacity of about 2 billion tons. Mining vehicles are mainly used in coal mines, gold mines, copper mines, and iron mines, with users mainly distributed in Australia and the Americas. Among them, Australia is the world's largest user of mining vehicles. China and Mongolia are becoming the fastest-growing markets for mining dump trucks.



Mining heavy-duty dump trucks belong to non highway dump trucks, which are a type of dump truck used for transporting bulk materials and equipment such as coal mines, sand and gravel in non highway outdoor sites, such as large open-pit mines, metallurgical mines, and hydraulic engineering. In general, off-road wide body dump trucks and off-road mine dump trucks are often mixed together.





Model UQ-15
Engine Model YUCHAI 4108 with Turbocharge
Engine Power 118KW/160HP
Total Dimension 5600*2300*2000mm
Transmission Model FASITE 8JS118
Transmission Gear 8 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 153
Tire Model 825-16 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 12 PCS, Rear 10PCS, Spare 8PCS
Dimension of Bottom Spring Plate Length 90mm, Width 16mm
Size of the Bucket:Length×width×height 4000mm*2200mm*800mm
Type of Bucket U Type
Thickness of Bucket Steel Plate bottom 10mm side 8mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 15 Tons


15 Ton Underground Dump Truck Ultimate Solution For Mining Operations 015 Ton Underground Dump Truck Ultimate Solution For Mining Operations 115 Ton Underground Dump Truck Ultimate Solution For Mining Operations 215 Ton Underground Dump Truck Ultimate Solution For Mining Operations 315 Ton Underground Dump Truck Ultimate Solution For Mining Operations 4
