Wet Multi Disc Braking Underground Articulated Truck 15 Tons Diesel

1
MOQ
USD 5000-15000 Set
Price
Wet Multi Disc Braking Underground Articulated Truck 15 Tons Diesel
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUCHAI 4108 With Turbocharge
Engine Power: 118KW/160HP
Transmission Model: FASITE 8JS118
Front Axle Model: 1098
Dimension Of Bottom Spring Plate: Length 90mm, Width 11mm
Unloading Type: Hydraulic Double Top Dump
Type Of Bucket: U Type
Thickness Of Bucket Steel Plate: Bottom 10mm Side 8mm
High Light:

Diesel Mining Underground Articulated Truck

,

Underground Articulated Truck 15 Tons

,

Underground Dump Truck 15 Tons

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-15
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7-21 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of Loading Capacity 15 tons Underground Mining Dump Truck



Underground trucks are also known as underground mining trucks, underground dump trucks.Beijun underground mining trucks are designed to transport rock material safely, efficiently and reliably in extreme conditions. The underground trucks are rugged, compact and powerful, offering payloads from 3 to 30 tons, and operating at a low cost per tonne. A standard dump truck has a chassis or base frame with a mounted bed. The front of the body contains a hydraulic ram that raises the bed. The back of the bed is hinged to the back of the truck so the front can be raised to dump material out. The container that makes up the dumper is positioned at the front, while the driver is usually at the back of the machine. This vehicle is usually powered by a diesel engine, but it can also be powered in other ways: by electric motors, hydraulics or manually operated.



Mainly used on the construction site, dumper trucks are used for the transportation of various loose materials such as sand, earth and gravel. The dumper typically carries its load in a skip which is situated in front of the driver – using hydraulics, the skip tips to dump the load. The modern day dumper can be used in a variety of different projects to transport various materials around the site. Dumper trucks can vary greatly in size and capacity, the size of the truck bed will dictate the amount of material that can be carried, although the weight of the load and not only its volume, has to be factored in. When transporting exceptionally heavy material, the bed may not be filled to its full capacity. These dump trucks are large with high ground clearance. They are ideally suited to off road conditions and can function under extreme off road conditions, maintaining stability on rough terrain. The superior suspension and traction allow for operation on large sharp rocks, loose mud and steep inclines. Articulated dump trucks are not suitable for public roads, due to their large size and tricky steering configurations. They are generally transported to the construction site using another vehicle, although this brings up the price.



Model UQ-15
Engine Model YUCHAI 4108 with Turbocharge
Engine Power 118KW/160HP
Total Dimension 5600*2300*2000mm
Transmission Model FASITE 8JS118
Transmission Gear 8 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 153
Tire Model 825-16 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 12 PCS, Rear 10PCS, Spare 8PCS
Dimension of Bottom Spring Plate Length 90mm, Width 16mm
Size of the Bucket:Length×width×height 4000mm*2200mm*800mm
Type of Bucket U Type
Thickness of Bucket Steel Plate bottom 10mm side 8mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 15 Tons

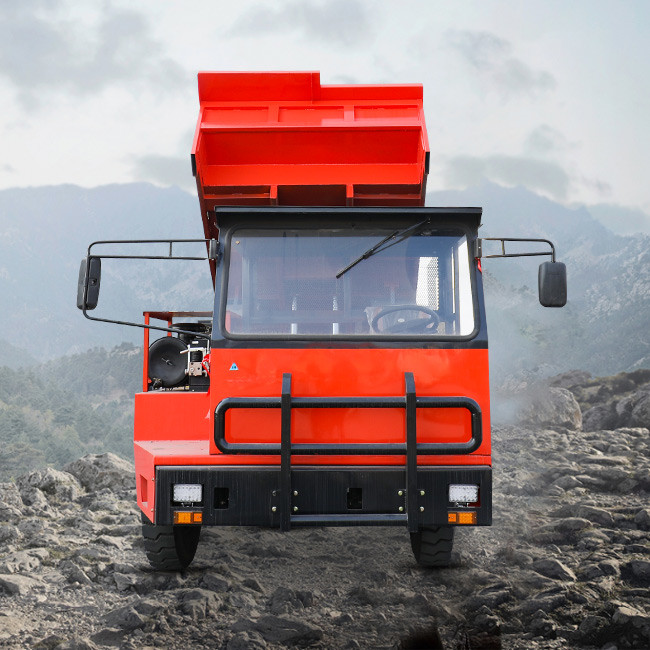

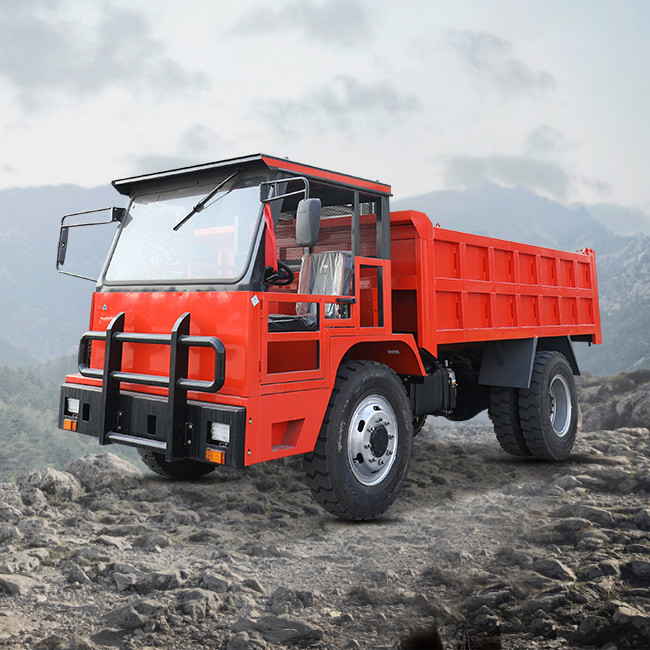

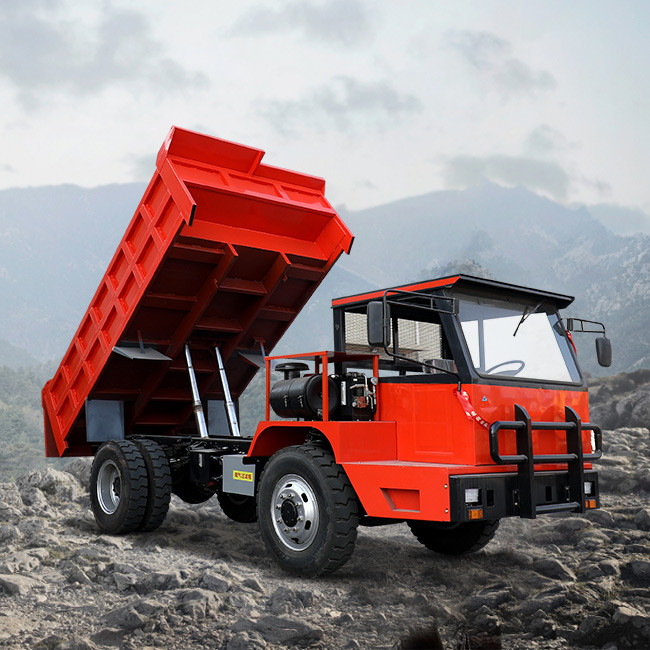

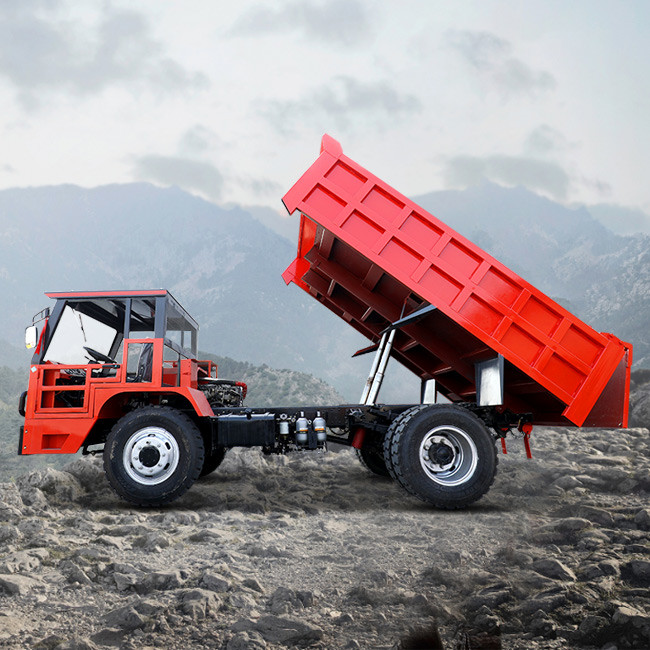

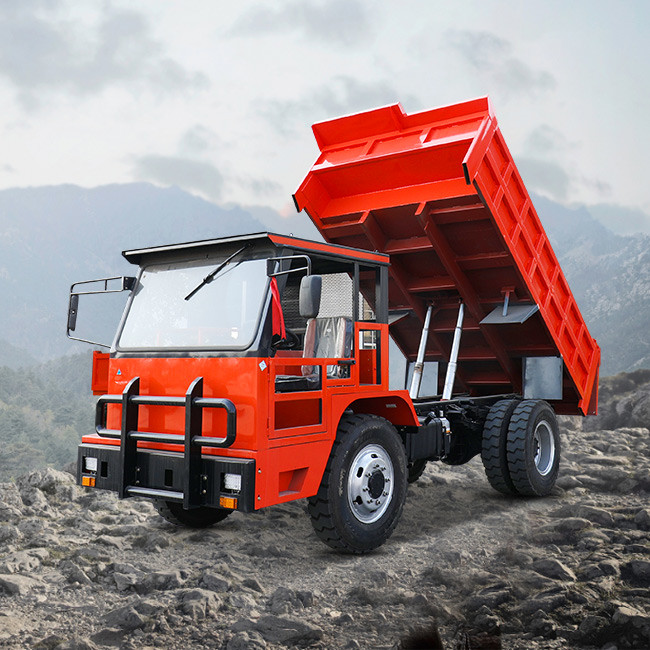

Wet Multi Disc Braking Underground Articulated Truck 15 Tons Diesel 0Wet Multi Disc Braking Underground Articulated Truck 15 Tons Diesel 1Wet Multi Disc Braking Underground Articulated Truck 15 Tons Diesel 2Wet Multi Disc Braking Underground Articulated Truck 15 Tons Diesel 3Wet Multi Disc Braking Underground Articulated Truck 15 Tons Diesel 4
