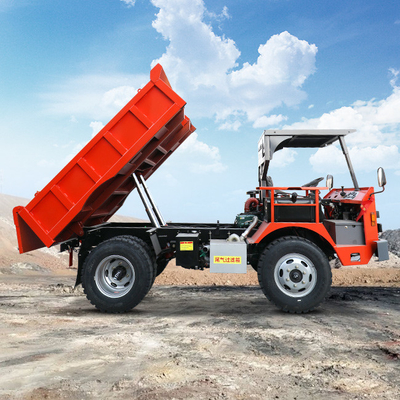

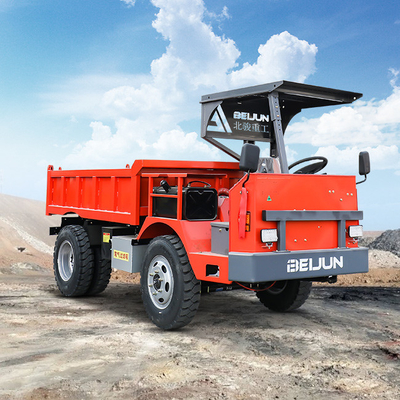

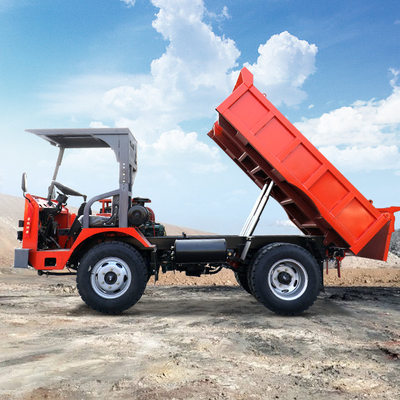

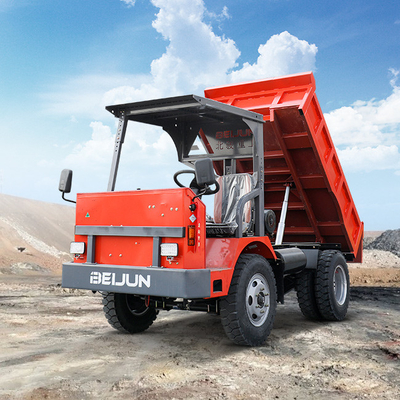

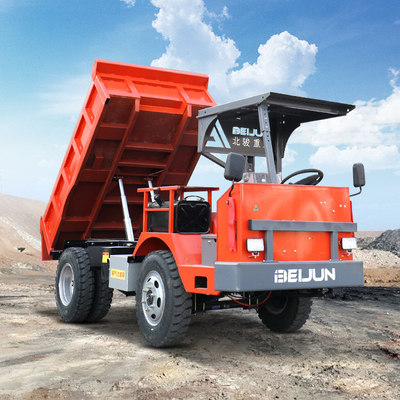

Product parameters of 3 Ton Dump Truck
UQ-3 dumpers mainly used in mining, brickyard, sanitation, pasture, farm,garden,tunnel,construction sites which has been verified by clients from Peru, Bolivia,Ecuador, Malaysia Mongolia and etc. over 40 countries. Underground Mining dump truck is with more powerful equipped with famous engines, large torque reserve, powerful driving.force.The utility model has the advantages ofreasonable power emission upgrade, reasonable gear distribution,strong ideal working.speed required for various underground operations and transportation operations, higher operation efficiency, better fuel economy,and more advanced technology.Safe and reliable, strong reliability, the strengthening type front sealing drive axle has strong reliability.Full hydraulic steering system, easy to operate and flexible.Reinforced semi axle bushing, durable type stronger.
The UQ-3 battery uses two 12V maintenance-free batteries for longer and more durable use. The vehicle's power off valve is upgraded to ensure no leakage during power outages and higher safety. After using the vehicle, turn off the power supply of the entire vehicle in a timely manner. The battery should be used for a minimum of 2-3 years without any problems, and a 2mm thick cowhide is also placed inside the battery box to effectively prevent battery failure caused by road bumps. Adopting chrome plating process, suitable for various complex and humid environments, more stable and durable. All oil seals are imported, with higher standards and longer service life. 3 tons underground ore transport truck is mainly used in the mine underground, mainly to transport loose materials after blasting. It can also be used in railway, highway, water conservancy and other tunnel projects, especially suitable for poor working conditions, narrow, low and muddy working surfaces. The power system adopts today's advanced engine and is equipped with exhaust muffler Purifier.
Model | UQ-3 |
Engine Model | CHANGCHAI 490 |
Engine Power | 63 HP |
Transmission Model | Ningjing 130 |
Transmission Gear | 4 Forward Gear, 1Back Gear,Rear High Speed Controller |
Drive Mode | 4x4 |
Front Axle Model | CHITONG ISUZU Axle |
Rear Axle Model | CHITONG ISUZU Axle |
Tire Model | 700x16 Line Tire, Rear Single Tyre One Side, |
No.of Bottom Spring Plate | Front 7 PCS, Rear 8 PCS, Spare 6PCS |
Dimension of Bottom Spring Plate | Length 70mm, Width 10mm |
Size of the Bucket:Length×width×height | 2401mm*1301mm*451mm |
Type of Bucket | U type Bucket |
Thickness of Bucket Steel Plate | bottom 6mm side 4mm |
Unloading Type | Hydraulic Double Top Dump |
Steering Type | Hydraulic power steering |
Braking Type | Air Brake |
Cabin | Canopy |
Driving Position | Left Hand Drive |
Cooling sytem | Standard Water Cooling System |
Loading Capacity | 3 Tons |
