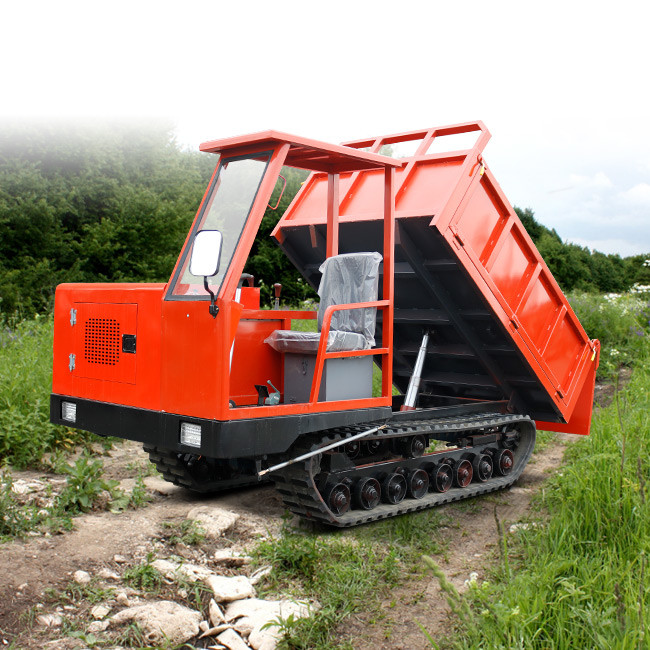

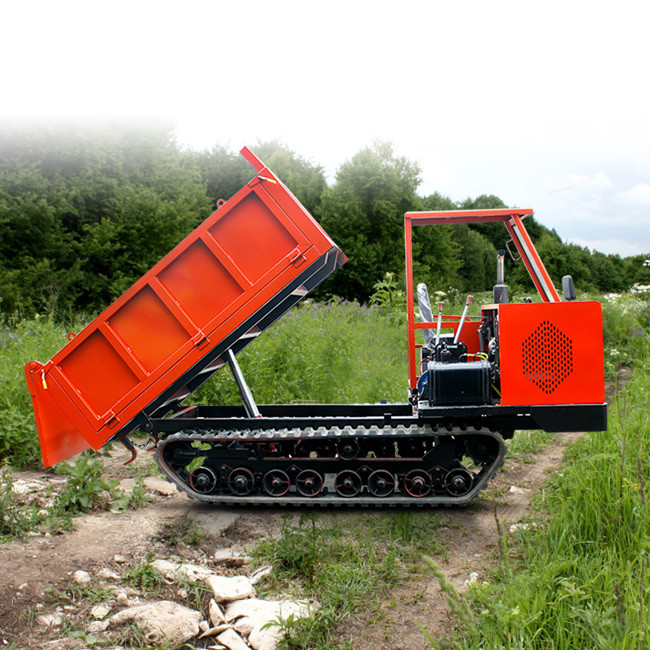

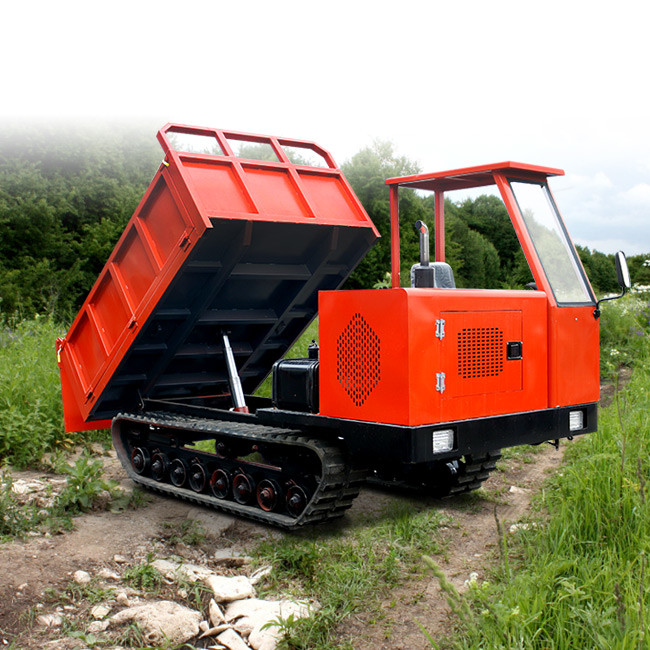

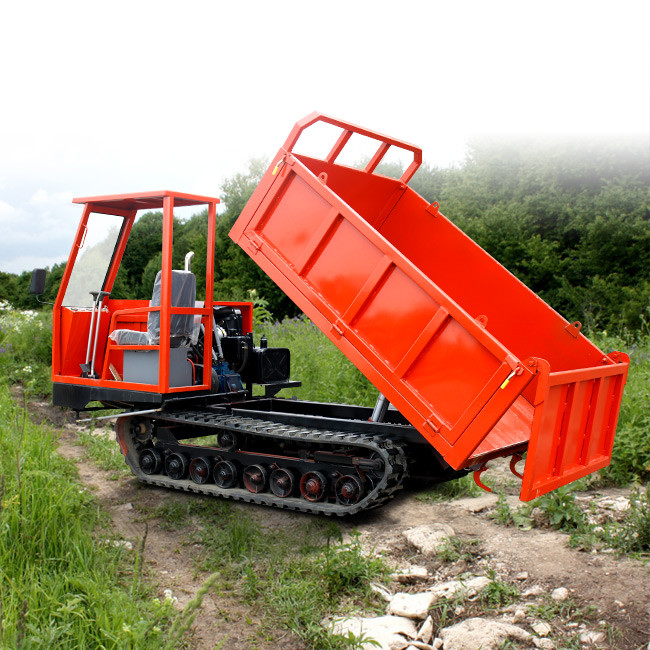

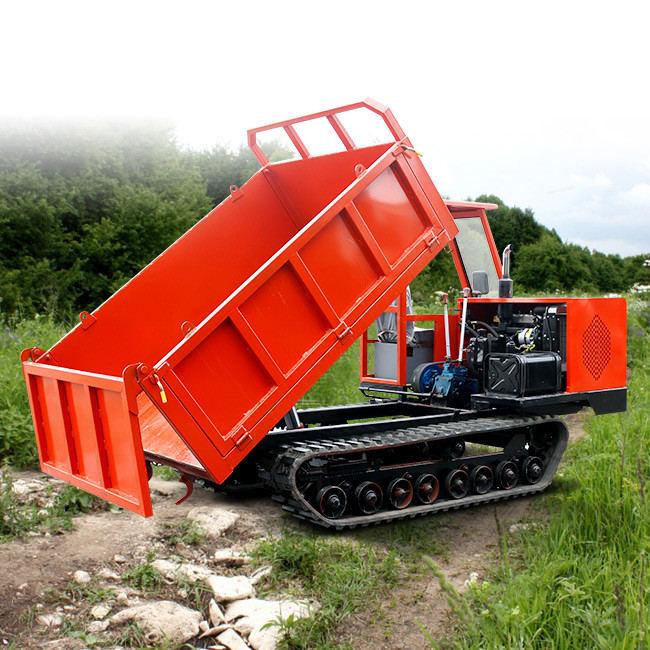

Product parameters of 4 Ton Crawler Dumper Truck
Crawler transport vehicles are specialized machines that provide transportation services for complex road conditions, suitable for places where ordinary transport vehicles cannot or are not suitable for passage, suitable for narrow areas, reducing the cost of road construction. They can be used in complex road conditions such as swamps, riverbanks, deserts, paddy fields, tropical rainforests, snow, and ice. Our company specializes in the production of mining dump trucks, four-wheel trucks, four-wheel driving rock climbing kings, tracked transport vehicles, concrete mixer trucks, eight wheel engineering vehicles, special vehicles, and various customized chassis for cars that do not like four-wheel driving. The entire vehicle can be customized, and customers are welcome to visit the factory. The current production quantity and variety of hand-held tracked transport vehicles are not large. Mainly used for short distance transportation of feed, fertilizers, fruits, flowers, and food containers, it is more flexible and convenient to use.
1. Wide range of use, simple structure, smooth transmission, labor-saving, and easy to achieve automated control.
2. Suitable for complex road conditions such as swamps, rivers, deserts, paddy fields, tropical rainforests, snow, and ice.
3. Single cylinder power system, low fuel consumption, dual cylinder, four cylinder diesel engine.
4. Strong traction, climbing and grinding, and strong transportation capacity.
5. Small turning radius, flexible, especially suitable for narrow venues, reducing the cost of road construction.
6. Equipped with electric start, centralized lamp heads, and convenient operation.
Product description: Small, motor, flexible, easy to operate, wide speed, large carrier capacity. Crawlers walk relatively less and do not harm the lawn. The mountain has passed through performance, strong climbing ability, board of directors can be used for transportation vehicles, and the ground is adaptive. The side of the door can be flattened to extend, and the rear door can be disassembled to achieve tilting. Widely applicable to all terms such as farmland, orchards, large greenhouses, nurseries, beaches, snow, and construction sites, as well as a small roadbed.
length*width*height | 3480*1650*2050mm |
Cargo box size | 2200*1500*600mm bottom 2 sides 2 |
launch brand | Weichai |
engine model | 490Y4-2 |
Model model | Guli 21 |
gear | Top 3 inverted 1 high and low speed |
crawler | Engineering rubber tracks |
Track model | 320*90*56mm |
Hydraulic dump function | Single top dump |
Bearing weight | 4 tons |
Cargo box height from ground | 58cm |
uphill angle | 35 degrees |
Single wheel side system | Full 180 floating wheels |
Start mode | Electric start |
Weight | 2200kg |
