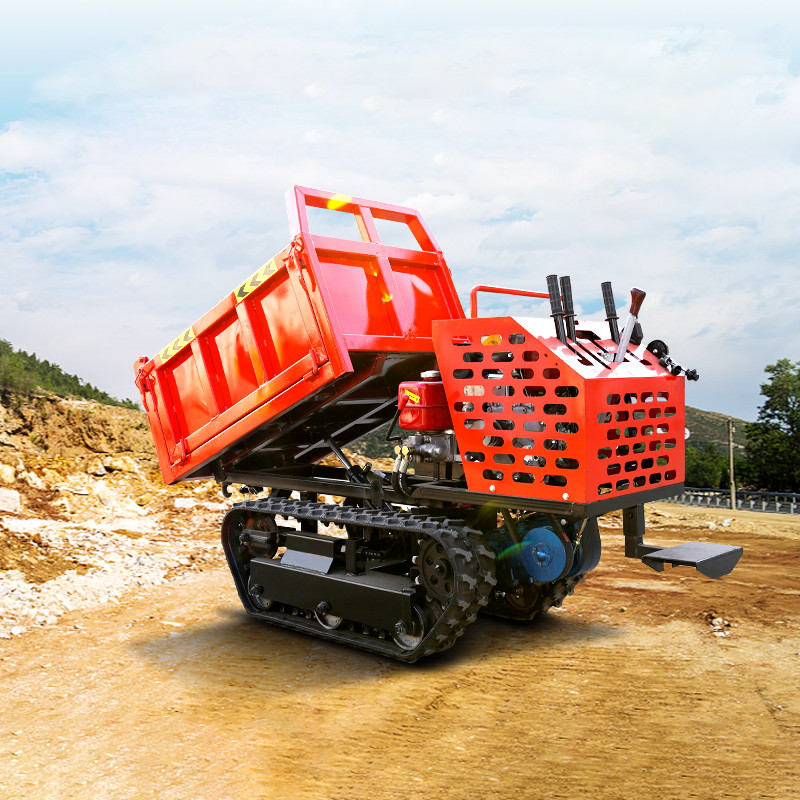

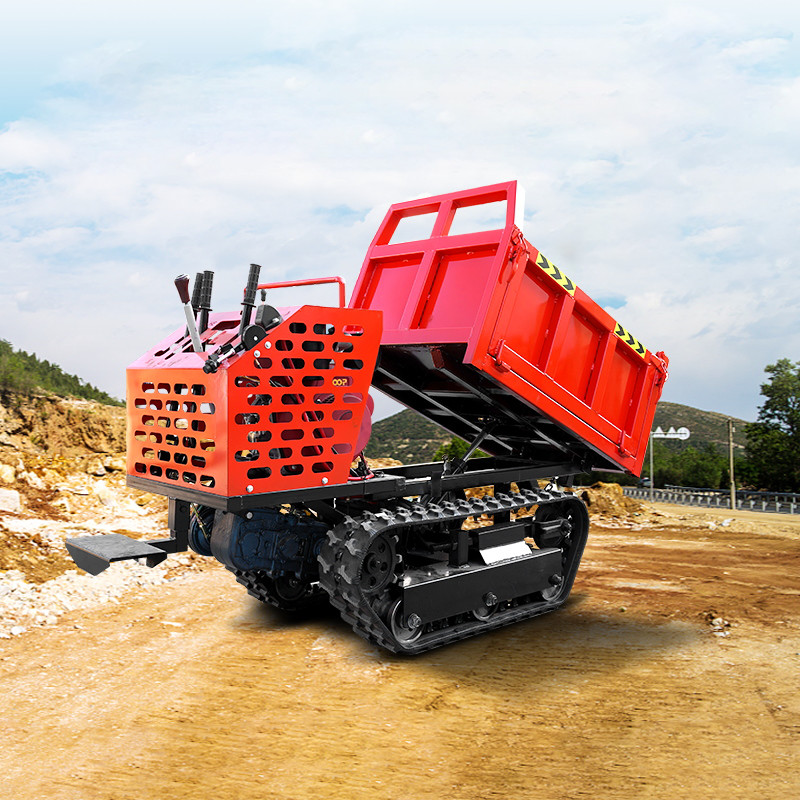

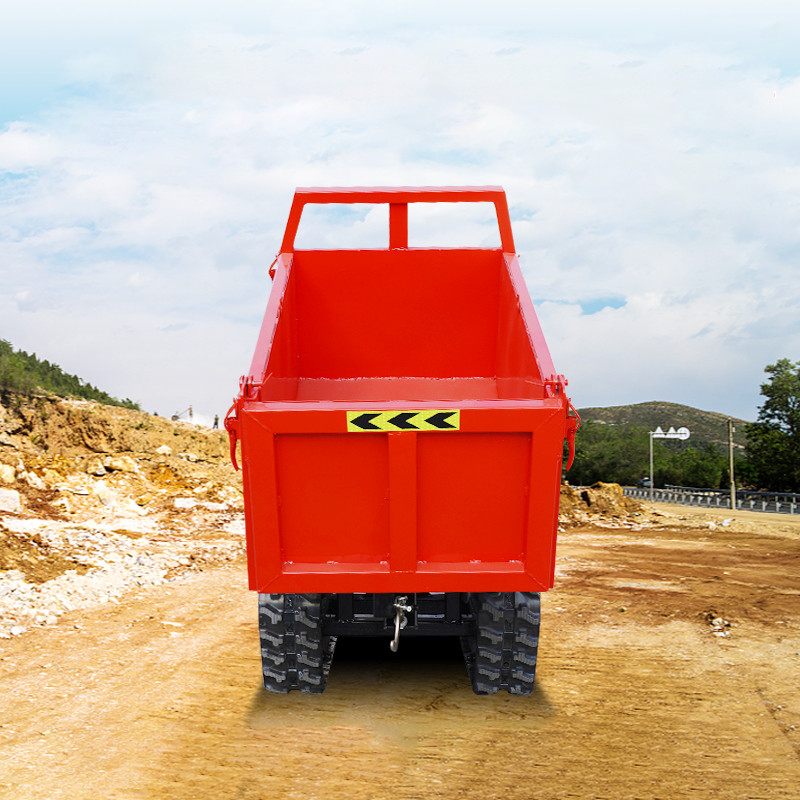

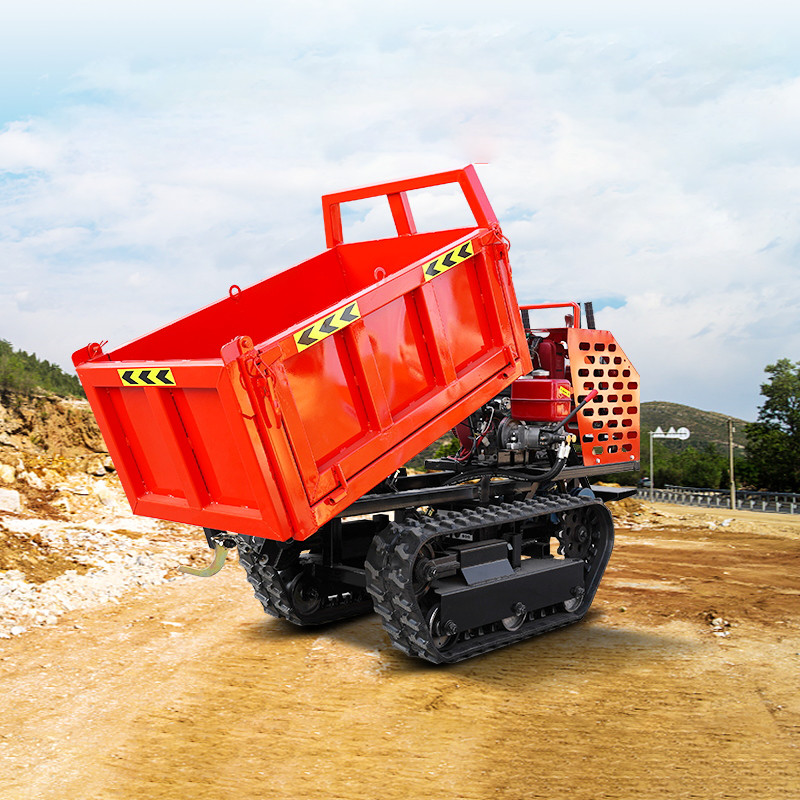

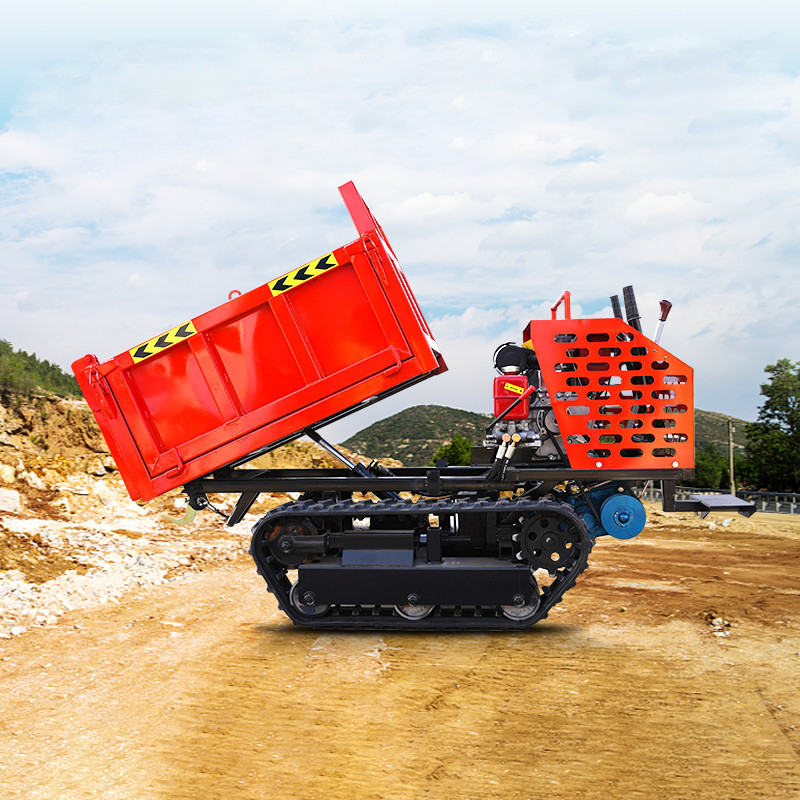

Product parameters of 1 Ton Crawler Dumper Truck
1. The current production quantity and variety of hand-held tracked transport vehicles are not large. Mainly used for short distance transportation of feed, fertilizers, fruits, flowers, and food containers, it is more flexible and convenient to use. 2, There are many manufacturers of passenger tracked transport vehicles, with dozens of product models. They have low ground pressure and can travel on roads such as paddy fields, slopes, wet and soft areas, and forests. This series also has tracked transport vehicles with hydraulic lifting brackets, which can lift the vehicle body and tilt it for unloading, making it easy to stack goods. In addition, it can be transformed into a fertilizer spreader or a rice harvester chassis using a tracked transport vehicle.
3. Tracked transport vehicles for orchards are mainly used for high-altitude operations in orchards and greenhouses. By raising the hydraulic oil cylinder and support worktable, people can perform tasks such as pruning, picking fruits, and packing on it.
4. Forestry tracked transport vehicles are mainly used for loading and unloading and transporting timber in forest areas, and can travel on harsh road surfaces and slopes. To load and unload trees, the vehicle is equipped with a hoist and a suspension rod. The winch pulls the trees to the side of the vehicle through a steel wire rope, and then uses a suspension rod to lift the trees onto the platform of the vehicle.
5. The tracked transport vehicle for agricultural engineering is a large tracked transport vehicle mainly used for loading, unloading, and transportation operations in agricultural construction, water conservancy engineering, and construction sites.
length*width*height | 2800*1200*1500mm |
Cargo box size | 1600*1200*500 bottom 2 sides 2 |
launch brand | Chang Chai |
engine model | ZS1105M |
Model model | Guli 18 |
gear | Top 3 lose 1 |
crawler | Steel rubber tracks |
Track model | 230*72*56mm |
Hydraulic dump function | Single top self-unloading (750*3 sections) |
Bearing weight | 2 tons |
Cargo box height from ground | 60cm |
uphill angle | 35 degrees |
Single wheel side system | Full 180 floating wheels |
Start mode | Electric start/hand pull |
Weight | 2200kg |
