Product parameters of 20Ton Underground Mining Dump Truck

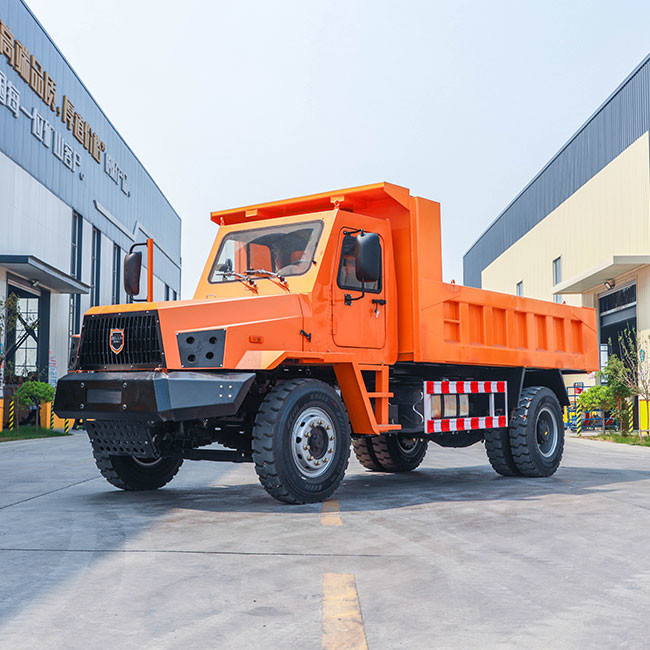

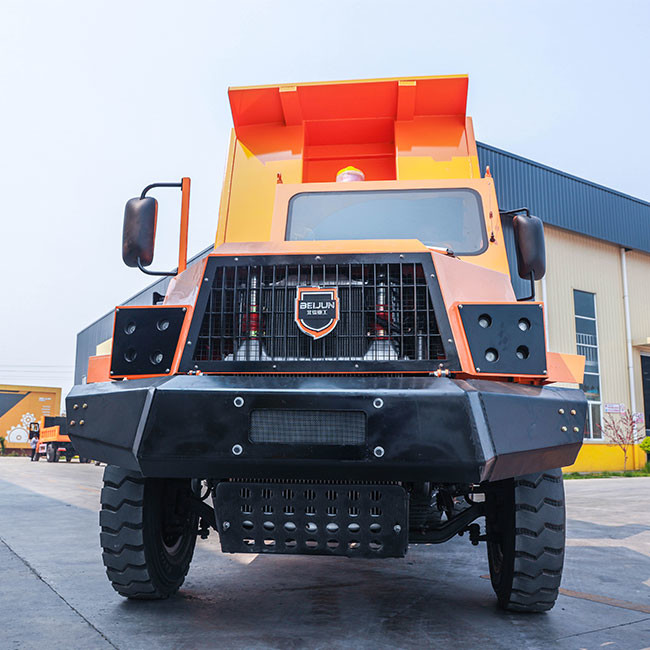

The Beijun underground tunnel dump truck is specifically designed for use in underground mining operations. Its compact structure and small turning radius make it highly maneuverable in narrow spaces, while its specialized features such as the cab, suspension frame, vehicle frame, cargo compartment, and lifting mechanism provide maximum flexibility.
One of the key design considerations for the truck is safety. The underground environment is often humid, poorly-lit, and has slippery road surfaces, which can pose significant risks to drivers. To mitigate these risks, the Beijun truck has been equipped with improved lamps and electrical components, as well as anti-slip tires and enhanced waterproofing and moisture-proofing capabilities.
In terms of performance, the Beijun underground tunnel dump truck is a strong performer. Its powerful torque, excellent grade, and starting capabilities make it well-suited for handling heavy loads and steep inclines. The truck's high bearing capacity, which is 1.5 times that of an ordinary road vehicle, further adds to its capabilities.
Overall, the Beijun underground tunnel dump truck is a well-engineered vehicle that is designed to meet the unique demands of underground mining operations. Its combination of maneuverability, safety features, and strong performance make it an ideal choice for mining companies looking to optimize their operations.
| Model | UQ-20 |
| Engine Model | YUCHAI Engine with Turbocharge |
| Engine Power | 290HP |
| Total Dimension | 6200*2400*2450mm |
| Transmission Model | FASITE 9JS118 |
| Transmission Gear | 8 Forward Gear, 1Back Gear,Rear High Speed Controller |
| Drive Mode | 4x2 |
| Front Axle Model | Styer Axle |
| Rear Axle Model | Styer Axle |
| Tire Model | 10.00-20 Radial steel tire, Rear Double Tyre One Side, |
| No.of Bottom Spring Plate | Front 11 PCS, Rear 12 PCS |
| Dimension of Bottom Spring Plate | Length 90mm, Width 16mm |
| Size of the Bucket:Length×width×height | 4500mm*2400mm*1000mm |
| Type of Bucket | U- Type |
| Thickness of Bucket Steel Plate | bottom 10mm side 8mm |
| Unloading Type | Hydraulic Double Top Dump |
| Steering Type | Hydraulic power steering |
| Braking Type | Air Brake |
| Cabin | Canopy |
| Driving Position | Left Hand Drive |
| Cooling sytem | Standard Water Cooling System |
| Loading Capacity | 20 Tons |
