Product parameters of Loading Capacity 15 tons Underground Mining Dump Truck

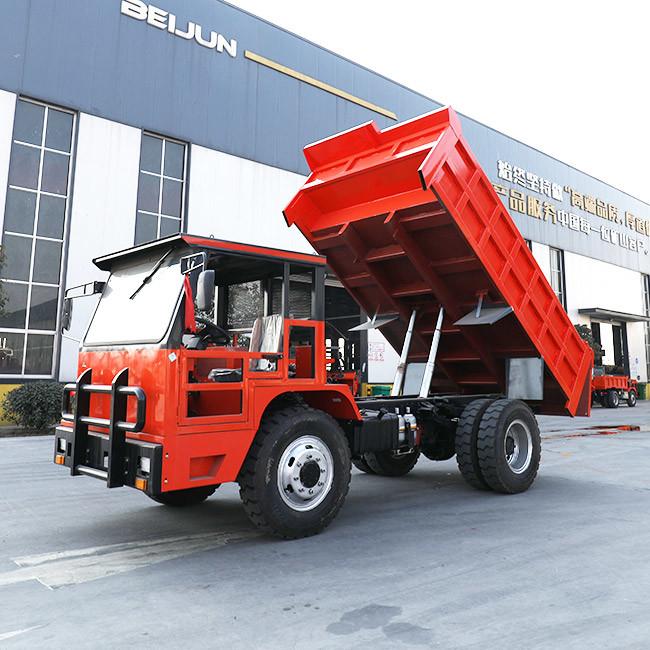

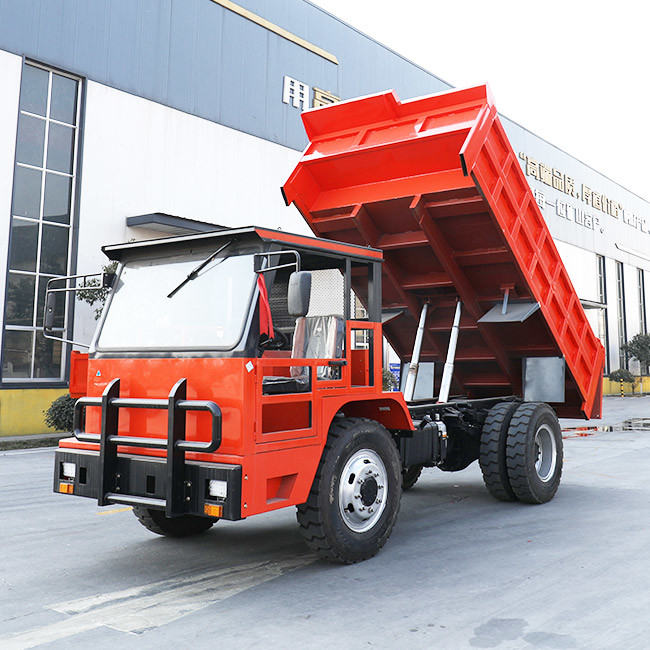

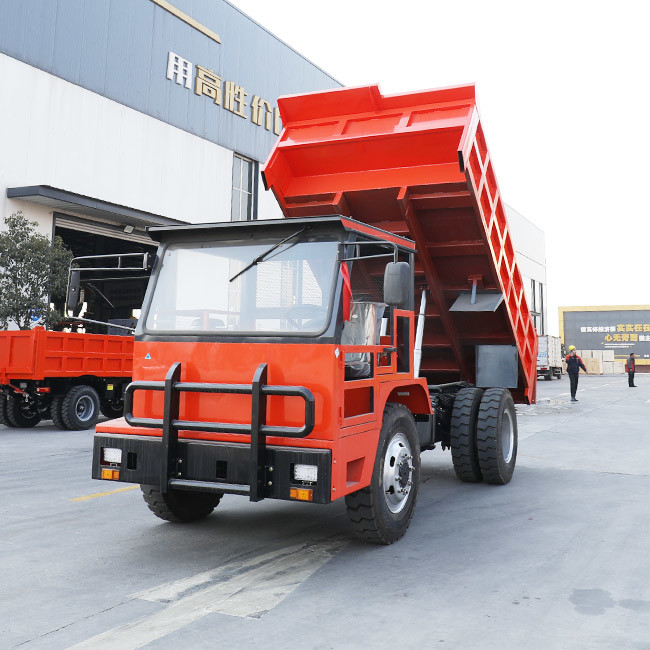

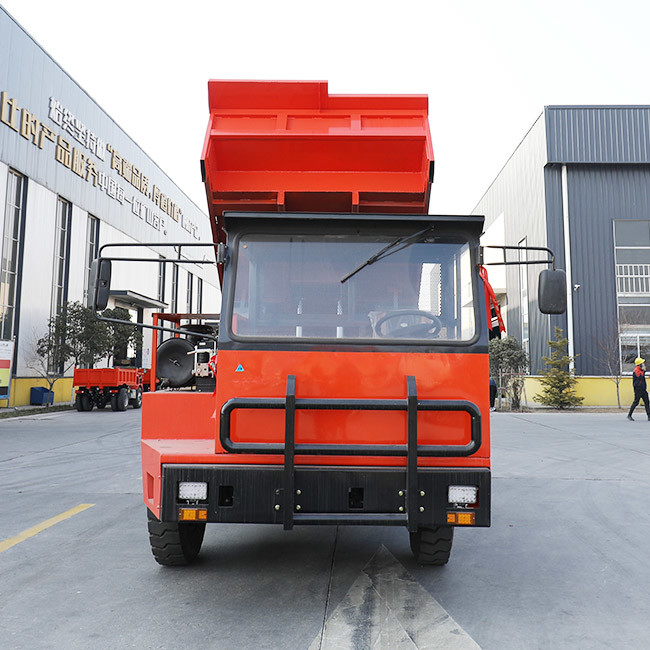

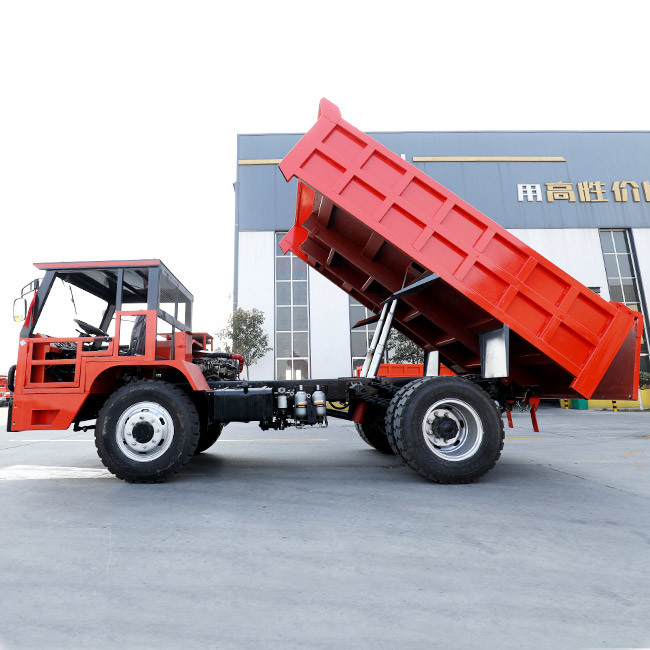

The Beijun underground tunnel dump truck is designed with excellent trafficability in mind, featuring a compact structure and small turning radius that allow it to easily navigate narrow spaces inside the roadway ramp. This makes it a reliable and flexible option for mining companies operating in confined underground areas.
Safety is a top priority for the Beijun truck, which is equipped with improved lamps and electrical components, waterproofing and moisture-proofing capabilities, and dedicated anti-slip tires. These features enable the truck to overcome obstacles and maintain high safety standards, even in the challenging underground environment.
The Beijun underground tunnel dump truck is powered by a high-performance engine, with large torque, excellent grade, and starting performances, that enables it to effortlessly handle heavy loads and steep inclines. This improves efficiency and productivity, allowing mining companies to optimize their operations and achieve higher levels of profitability.
The truck's scientific design and configuration, based on the mining vehicle design concept, ensures that it has a strong bearing capacity, 1.5 times that of an ordinary road vehicle. This makes it a reliable and cost-effective choice for transporting heavy loads in underground mining operations, improving overall efficiency and reducing operating costs. Additionally, the truck's rugged construction, including its lifting mechanism, cargo compartment, suspension frame, and vehicle frame, enhances its durability and reliability in the harsh underground environment. Moreover, the truck's spacious and comfortable cabin, along with its user-friendly controls, provide a comfortable and efficient working experience for operators, increasing their productivity and job satisfaction. Finally, the truck's advanced features, such as its telematics system and real-time monitoring capabilities, allow mining companies to track and optimize their operations, ensuring maximum efficiency and safety at all times.
| Model | UQ-15 |
| Engine Model | YUCHAI 4108 with Turbocharge |
| Engine Power | 118KW/160HP |
| Total Dimension | 5600*2300*2000mm |
| Transmission Model | FASITE 8JS118 |
| Transmission Gear | 8 Forward Gear, 1Back Gear,Rear High Speed Controller |
| Drive Mode | 4x2 |
| Front Axle Model | 1098 |
| Rear Axle Model | 153 |
| Tire Model | 825-16 Radial steel tire, Rear Double Tyre One Side, |
| No.of Bottom Spring Plate | Front 12 PCS, Rear 10PCS, Spare 8PCS |
| Dimension of Bottom Spring Plate | Length 90mm, Width 16mm |
| Size of the Bucket:Length×width×height | 4000mm*2200mm*800mm |
| Type of Bucket | U Type |
| Thickness of Bucket Steel Plate | bottom 10mm side 8mm |
| Unloading Type | Hydraulic Double Top Dump |
| Steering Type | Hydraulic power steering |
| Braking Type | Air Brake |
| Cabin | Canopy |
| Driving Position | Left Hand Drive |
| Cooling sytem | Standard Water Cooling System |
| Loading Capacity | 15 Tons |
