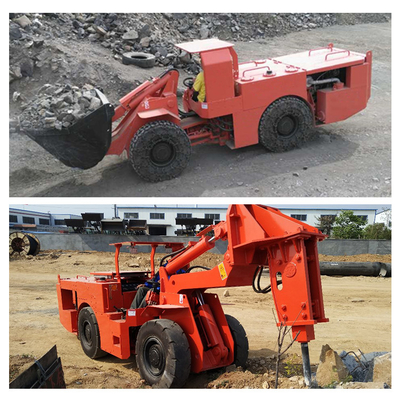

1cbm Underground Lhd Loader 1 Cubic Underground Loader,1.5 Cubic Yard Scooptram
1 YTO LR4A3Z-22 70KW / CUMMINS 4BTA3.9-C80 60KW 4 cylinders engine.
2 Integrated torque converter transmission.
3 Specifically tailored for the mine operation counter-shaft power-shift gearbox, YJ280 torque converter.
4 Air over hydraulic brake system, caliper brake system.Wet brake axle available.
5 Mine engineering machinery customization ZL25E wheel reduction axle, automatic bucket flat.
6 Over load protection system.Disc brake shield,LED front and rear light.Alarm lamp.
7 Water exhaust gas cleaning and oxidation catalyst device from Canada.
8 Optional:Joystick control;Wheel protection chains;Smooth anti puncture narrow tire. Side dumping bucket; Hydraulic hammer;Narrow bucket without teeth,DOC.
Model | BJCY-06 | BJCY-1A | BJCY-1A(Unloading Height 1.7 m) | BJCY-1A(Side Unloading) | BJCY-1D(Electric) |
Bucket capacily (m) | 0.6 | 1 | 1 | 1 | 1 |
Rated load (T) | 1.2 | 2 | 2 | 2 | 2 |
Operating weight (T) | 5.1 | 7 | 7 | 7 | 7.2 |
Speed (km/h) | 0-9.7 | 0-9.5 | 0-9.5 | 0-9.5 | 0-8 |
Forward gear (km/h) | I4.6 II9.7 | I0-5 II0-9.5 | I0-5 II 0-9.5 | 10-5 110-9.5 | |
Reverse gear (km/h) | I4.6 II9.7 | I0-5 II0-9.5 | I0-5 II 0-9.5 | 10-5 110-9.5 | |
Grade ability | 20° | 20° | 20° | 20° | 20° |
Overall length (mm) | 5,000 | 5,700 | 5,600 | 6,000 | 6,090 |
Overall width (mm) | 1,260 | 1,300 | 1,300 | 1,300 | 1,380 |
Overall height (mm) | 1,850 | 2,000 | 2,000 | 2,000 | 2,000 |
Min. ground dlearance | 180 | 210 | 210 | 210 | 210 |
Wheel base (mm) | 2,300 | 2,242 | 2,242 | 2,242 | 2,200 |
Wheel tread (mm) | 980 | 1,000 | 1,000 | 1,000 | 1,000 |
Max dumping height(mm) | 1,260/1,400 | 1,250 | 1,700/2,100 | 2,400 | 1,160 |
Dumping distance(mm) | 745 | 860 | 860 | 280 | 860 |
Engine model | YUNNEI YN33/CUMMINSQSF2.8 | YTO LR4A3Z-22/CUMMINS 4BTA3.9/DEUTZ BF4L913 | YTO LR4A3Z-22/CUMMINS 4BTA3.9/DEUTZ BF4L913 | YTO LR4A3Z-22/CUMMINS 4BTA3.9/DEUTZ BF4L913 | Y225-4 |
Rated power (kW) | 52/45 | 66. 2/60/68 | 66. 2/60/68 | 66. 2/60/68 | 45 |
Tyre model | 255/70D406 | 9.75-18 or 10.00-20 | 9.75- 18 or 10.00-20 | 9.75-18 or 10.00-20 | 10.00-20 |
