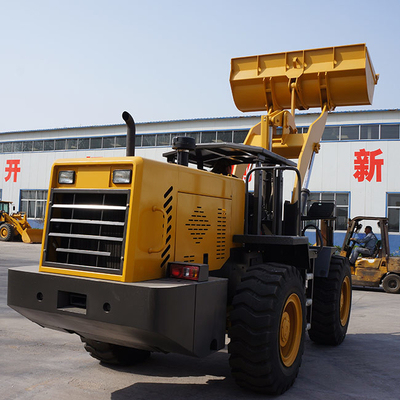

Low Price Mining Underground Wheel Loader
The engine options of YTO LR4A3Z-22 70KW and Cummins 4BTA3.9-C80 60KW both provide ample power for the loader, allowing it to perform effectively in mine operations.
The integrated torque converter transmission provides a smooth and reliable transmission system that is well-suited for mining operations.
The counter-shaft power-shift gearbox and YJ280 torque converter are specifically tailored for mine operations, providing enhanced performance in challenging environments.
The air over hydraulic brake system and caliper brake system, along with the option for a wet brake axle, offer reliable and efficient braking capabilities for the loader.
The ZL25E wheel reduction axle and automatic bucket flat are customized for mine engineering machinery, providing additional features that are well-suited for mining operations.
The overload protection system, disc brake shield, LED front and rear lights, and alarm lamp all contribute to the safety and functionality of the loader in mining environments.
The water exhaust gas cleaning and oxidation catalyst device from Canada is an environmentally friendly feature that reduces the loader's emissions.
Optional features like joystick control, wheel protection chains, smooth anti-puncture narrow tires, side dumping bucket, hydraulic hammer, and narrow bucket without teeth or DOC provide customization options for the loader to meet specific mining needs.
| Model | BJ918(Side Unloading) | BJ928(Sit sideways) | BJ935(Narrow 2.0 M) | BJ950 |
| Bucket capacity(m3) | 0.6 | 0.8 | 1.7 | 2.8 |
| Rated load (T) | 1.6 | 2 | 3 | 5 |
| Operating weight (T) | 4.7 | 6.5 | 10 | 17 |
| Speed (km/h) | 0-18 | 0-13 | 0-35 | 0-31 |
| Forward gear(km/h) | I0-8 II 0-18 | I0-5 II0-13 | I0-7.0 II0-12.5 III0-21 IV 0-35 |
I0-13.5 II 0-31 |
| Reverse gear(km/h) | I0-8 II 0-18 | I0-5 II0-13 | I0-14 II 0-25 | I10-17 |
| Grade ability | 20° | 20° | 20° | 20° |
| Overall length (mm) | 5,200 | 5,500 | 6,760 | 7,900 |
| Overall width (mm) | 1,600 | 1,870 | 2,000 | 3,030 |
| Overall height (mm) | 1,900 | 1,810 | 2,550 | 3,050 |
| Min. ground clearance (mm) | 180 | 200 | 250 | 534 |
| Wheel base (mm) | 2,502 | 2,700 | 2,700 | 3,100 |
| Wheel tread (mm) | 1 ,250 | 1,440 | 1,580 | 2,270 |
| Max. unloading height (mm) | 2,510 | 1,740/2,200 | 2,740 | 2,900 |
| Dumping distance(mm) | 100 | 945 | 1,200 | 1,350 |
| Engine model | YUNNEI YN38/CUMMINS 4BTA3.9 | YTO LR4A3Z-22/CUMMINS4BTA3.9 | YUCHAI YC6B125 |
WEICHAI WP10G220E343 |
| Rated power (kW) | 70/60 | 70/60 | 92 | 162 |
| Tyre model | 12-16.5 | 15/70-18 | 12.00-24 | 23.5-25 |
