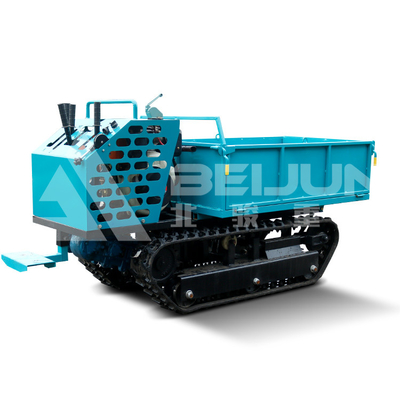

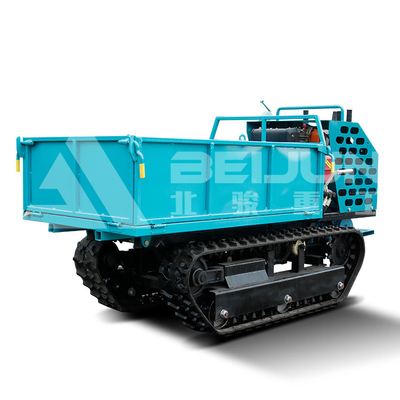

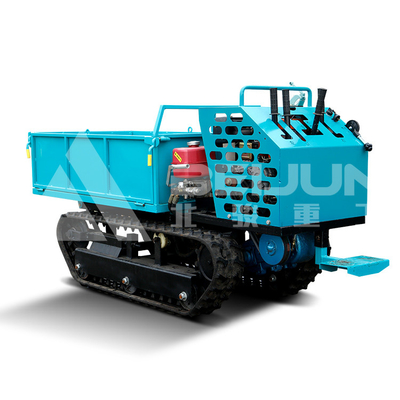

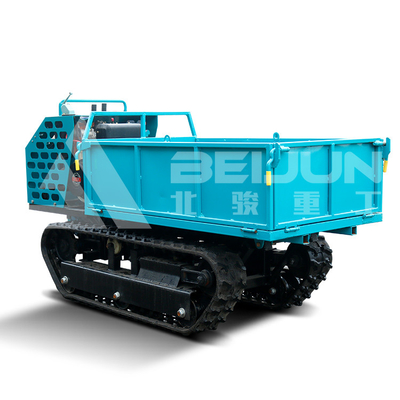

Product parameters of 0.8 Ton Crawler Dumper Truck
Mountainous environment use: mainly used for mountain climbing transportation (usually for pulling trees, pulling wood, or building materials, sand and stone materials, and concrete for road construction on the mountain). In this case, the crawler truck for pulling trees and wood is generally required to have a longer crawler cargo box, and the recommended crawler model is based on the length of the customer's transportation needs. Our vehicle length is generally around 2.5 meters, with a 6-10 ton container length of around 2.8 meters, and a typical container length of no more than 3 meters; Generally recommend 4-6 ton vehicle models;
Rice field environment use: Most of them are used for constructing water channels, water conservancy renovations, and constructing rice field dams. In this case, the most common use is for transporting concrete, building materials, sand and gravel, and it is generally recommended to use 4-5 ton vehicle models.
Desert environment use: used for material transportation and oil pipeline transportation, used for generator transportation work. Many customers in the desert pull generator sets, also known as tracked mobile power station vehicles in the industry (mobile power station vehicles are based on our tracked vehicles, which pull generators in the cargo box with a crane on top, used for engine lifting. Generally, one generator can handle 6 welding machines). It is generally recommended to use 8-10 ton models.
Orchard and vegetable greenhouse use: generally used for planting fruits in mountainous areas and plains, or for growing vegetables in greenhouses. This use is for small tonnage, limited in width and height, and does not require too much load-bearing capacity. Generally, 1-2.5 ton vehicle models are recommended.
Rivers and swamps: mainly used for sand transportation in rivers, usually recommended for 1-2.5 ton vehicles.
length*width*height | 4030*2060*2300mm |
Cargo box size | 2700*2000*550 (bottom 4 sides 3) |
launch brand | Weichai Jiaxin |
engine model | 4105 |
Model model | Dongfeng 145 |
gear | 5+1 gear |
crawler | Engineering rubber tracks |
Track model | 400*90*70mm |

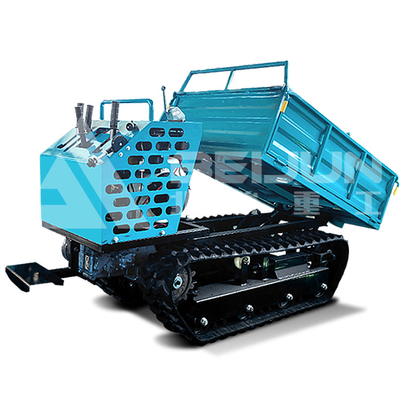

Hydraulic dump function | Double top dump |
Bearing weight | 8 tons |
Cargo box height from ground | 78mm |
uphill angle | 35 degrees |
Single wheel side system | Full 180 floating wheels |
Start mode | Electric start |
Weight | 2200kg |
