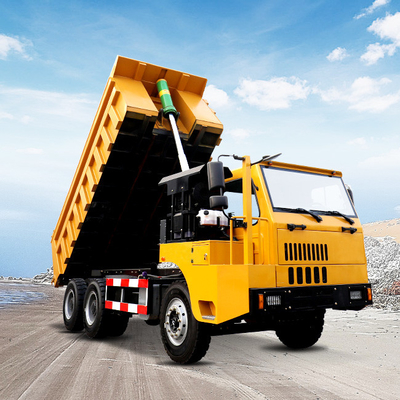

UQ-35 Underground Mining Truck 35 Tons High Technical Content And Low Consumption

1
MOQ
UQ-35 Underground Mining Truck  35 Tons High Technical Content And Low Consumption
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YC6L340-33
Engine Power: 243kW
Transmission Model: 10JS220
Drive Mode: 6x4
Size Of The Bucket:Length×width×height: 5400x2503x1350mm
Total Dimension: 8650x2503x2852mm
Tire Model: 12.00R20
Loading Capacity: 35 Tons
Dumper Lift Type: Front Cylinder
High Light:

35 Tons Underground Mining Truck

,

High Technical Underground Mining Truck

,

Low Consumption Underground Mining Truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-35
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7 - 16 days
Payment Terms: T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product Features of 35 Tons Underground Mining 6*4 Dump Truck



Mining dump trucks belong to non road dump trucks, mainly used for transporting materials from heavy construction sites, quarries, and mines. As the demand for payload capacity continues to expand, the size of mining dump trucks is also increasing. Due to the large volume of mining dump trucks, which can transport large amounts of materials, customers often prioritize using only one mining dump truck instead of a whole truck fleet because it is more economical. Mining dump trucks can transport hundreds of tons of materials at once, and they often work in pairs with mining excavators, filling the entire mining dump truck with just a few spoons. Non highway mining dump trucks mainly consist of an engine, chassis, control compartment (front), generator system, body (actuation system), and auxiliary power system. The characteristics of non highway mine dump trucks are: large tonnage, low consumption, high technical content, and expensive price.



Product parameters of 35 Tons Underground Mining 6*4 Dump Truck



Specification of UQ-35 35 tons Undergroud Dump Truck
Item parameter Item parameter
Dimensions (length x width x height) (mm) 8650x2500x2852 Minimum turning radius (outside) (mm) 12000
(The minimum optional height is 2721)
Curb weight (kg) 16500 Approach angle (°) 25
Car volume (m 3 ) 16 Gradeability (heavy load) (°) 14
Rated load (kg) 35000 Maximum lifting angle of carriage (°) 46
Maximum traction force (kN) 250 Car box lifting time (s) 35
Maximum height of the machine when unloading (mm) 6000 Carriage falling time (s) 15
Loading height (mm) 2800 Maximum forward speed (Km/h) 55
Minimum ground clearance (mm) 300 The maximum speed of retreating (Km/h) 12.5
Diesel engine brand Yuchai Engine Large frame type 300x80x(8+8+8) cold riveted frame
Diesel model YC6L340-33 Cabin Closed Cabin
Diesel engine power 243kW Air Conditioning System Heating and cooling air conditioner
Engine braking Exhaust brake Meter type LCD Gauge
Air filter purification Dry three-stage filtration radio With USB audio interface
Exhaust purification Water tank purification Cab dome light Built-in switch (24V)
Gearbox brand Shaanxi Fast Number of headlights 6
Transmission model 10JSD220 Front light function Far and near light switch
Transmission type 10 speed gearbox taillight Driving lights, turn signals
Drive axle brand Hand Axle   Reversing lights, brake lights
Drive axle model Hand Axle 20T Wiper Double wiper with high and low speed
Drive axle type Dual rear axle cut-off brakes Parking brake type Electronic parking
Front axle leaf spring 90x16 (11 pieces) Rear axle differential lock Standard (users activate by themselves)
Rear axle leaf spring 90x30 (12 pieces) Dumper type U-carriage
tire brand Chaoyang Tire Carriage size (mm) 5400x2500x1350
tire model 12.00R20 Dumper lift type Front cylinder



UQ-35 Underground Mining Truck  35 Tons High Technical Content And Low Consumption 0UQ-35 Underground Mining Truck  35 Tons High Technical Content And Low Consumption 1UQ-35 Underground Mining Truck  35 Tons High Technical Content And Low Consumption 2UQ-35 Underground Mining Truck  35 Tons High Technical Content And Low Consumption 3UQ-35 Underground Mining Truck  35 Tons High Technical Content And Low Consumption 4
