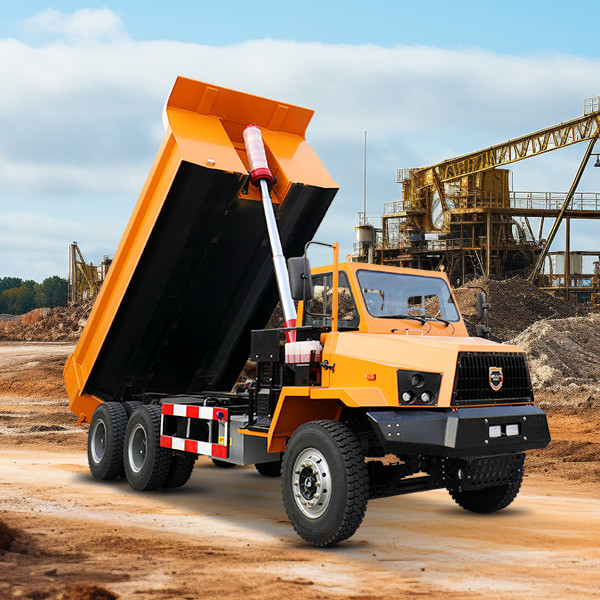

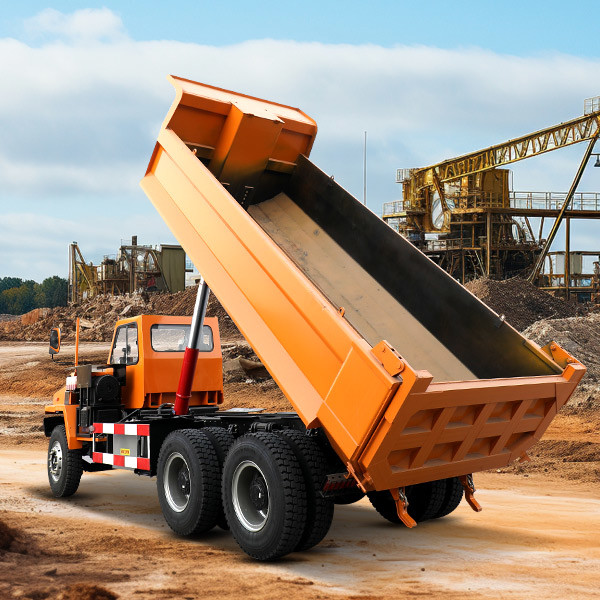

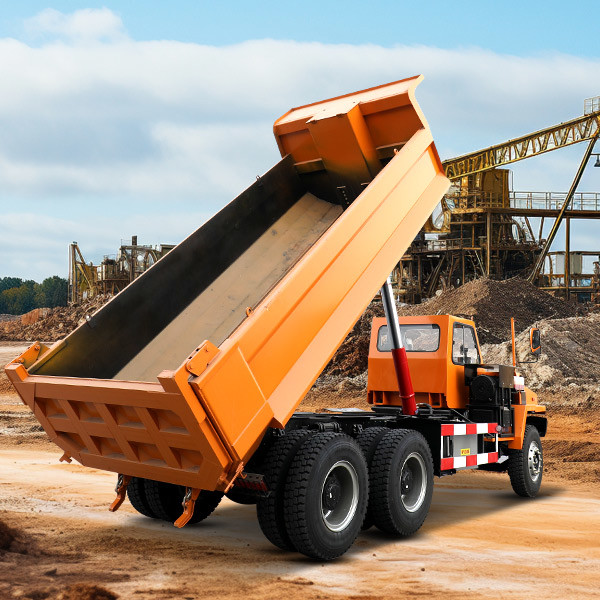

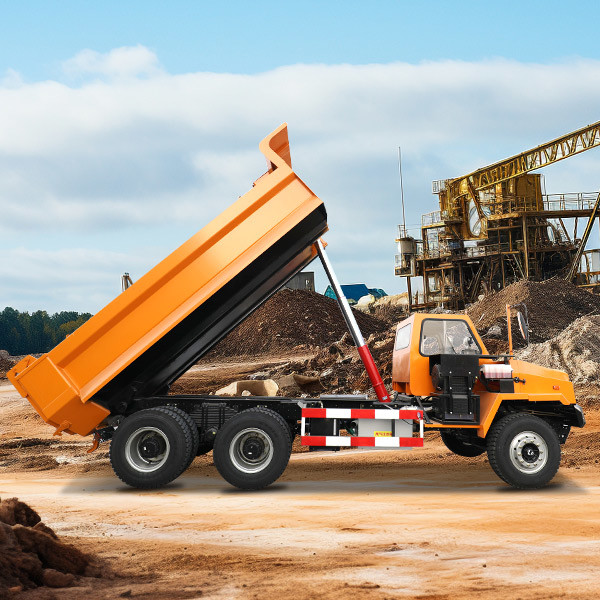

Product Features of 25 Ton Underground Mining Dump Truck
UQ-25 is long-wheelbase and large-tonnage axles, the best transmission shaft angle, and the reliability of the power transmission system is greatly improved.Tire intelligent management system can greatly improve tire reliability and greatly reduce maintenance costs. Front suspension main spring + rubber auxiliary spring structure + thrust rod structure: to meet the driving comfort of the whole machine, improve the reliability of the front suspension and the reliability of the leaf spring. Reinforced 25-ton straight front axle: large bearing capacity, high reliability, and ground clearance over 390.
Strong load-bearing capacity: The 25-ton mining truck has a large load-bearing capacity, which can meet the transportation needs of large quantities of materials in the mining site, improve work efficiency and production benefits.
Strong adaptability: The 25-ton mining truck has strong off-road and pass-through capabilities, can adapt to the complex terrain and environment in the mining area, and meet the needs of different working scenarios.
High reliability: The 25-ton mining truck has a sturdy and durable structure, can withstand heavy loads and high-intensity work in mining operations, and has good seismic and safety performance. It can operate for a long time in harsh working environments.
Easy maintenance: The design structure of the 25-ton mining truck is simple, easy to maintain and care, reducing the failure rate and maintenance costs.
Cost advantage: Compared with other types of mining vehicles, the 25-ton mining truck has a relatively low price, has a good cost performance, and can save costs for mining enterprises.
Product parameters of 25 Ton Underground Mining Dump Truck
Model | UQ-25 |
Engine Model | Yuchai YC6L340-33 |
Engine Power | 243KW |
Total Dimension | 7900x2420x2720mm |
Transmission Model | FASITE RT11509C |
Transmission Gear | 10 Forward Gear, 2Back Gear,Rear High Speed Controller |
Drive Mode | 6x4 |
Front Axle Model | Styer Axle |
Rear Axle Model | Styer Axle |
Tire Model | 1100R20 Radial steel tire, Rear Double Tyre One Side, |
No.of Bottom Spring Plate | Front 11 PCS, Rear 12 PCS |
Dimension of Bottom Spring Plate | Front 90*16 Rear 90*24 |
Size of the Bucket:Length×width×height | 5000x2300x1200mm |
Type of Bucket | Right Angle Type |
Thickness of Bucket Steel Plate | bottom 10mm side 8mm |
Unloading Type | Hydraulic Double Top Dump |
Steering Type | Hydraulic power steering |
Braking Type | Air Brake |
Cabin | Closed Cabin with A/C |
Driving Position | Left Hand Drive |
Cooling sytem | Standard Water Cooling System |
Loading Capacity | 25 Tons |
