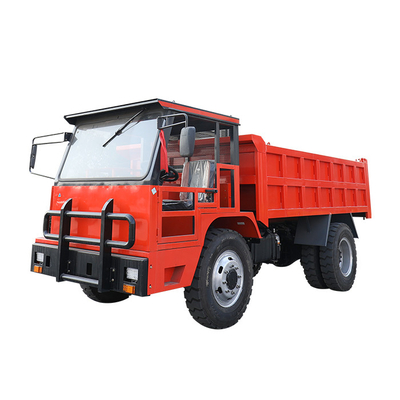

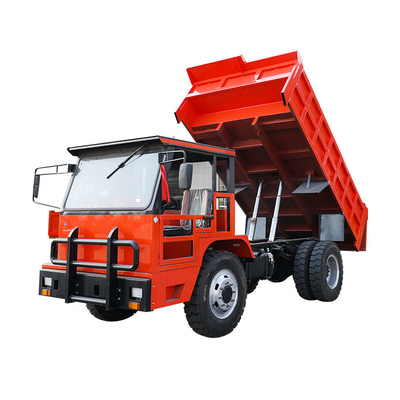

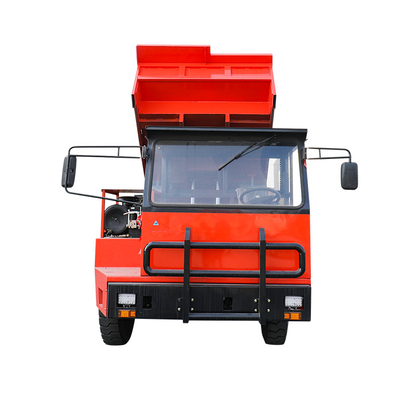

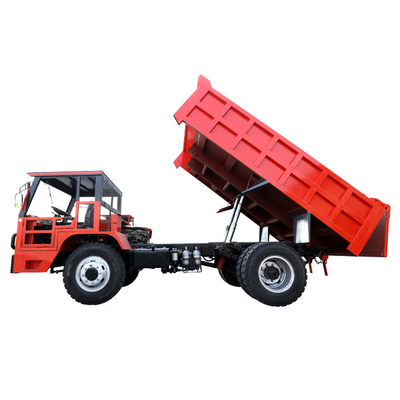

Product parameters of 15 tons Underground Mining Dump Truck
We have been a brand manufacturer specializing in mining machinery manufacturing and production for 20 years, with a professional research and development team, continuously optimizing and upgrading vehicle models, and producing on assembly lines. Vehicles undergo strict quality testing before leaving the factory.
Cooperate with multiple brands of engines such as Yuchai, Yunnei, and Changchai, providing strong power, stability, and efficiency, and nationwide joint guarantee.
The rear axle adopts a low-speed ratio, with high torque, strong load-bearing capacity, and stable quality. Hydraulic self unloading, high strength and low center of gravity, stable operation, and high transportation efficiency.
Model | UQ-15 |
Engine Model | YUCHAI 4108 with Turbocharge |
Engine Power | 118KW/160HP |
Total Dimension | 5601*2301*2001mm |
Transmission Model | FASITE 8JS118 |
Transmission Gear | 8 Forward Gear, 1Back Gear,Rear High Speed Controller |
Drive Mode | 4x2 |
Front Axle Model | 1098 |
Rear Axle Model | 153 |
Tire Model | 825-16 Radial steel tire, Rear Double Tyre One Side, |
No.of Bottom Spring Plate | Front 12 PCS, Rear 10PCS, Spare 8PCS |
Dimension of Bottom Spring Plate | Length 90mm, Width 16mm |
Size of the Bucket:Length×width×height | 4000mm*2201mm*801mm |
Type of Bucket | U Type |
Thickness of Bucket Steel Plate | bottom 10mm side 8mm |
Unloading Type | Hydraulic Double Top Dump |
Steering Type | Hydraulic power steering |
Braking Type | Air Brake |
Cabin | Canopy |
Driving Position | Left Hand Drive |
Cooling sytem | Standard Water Cooling System |
Loading Capacity | 15 Tons |
