Orange 20 Tone Underground Mining Truck Transport Diesel Powered

1
MOQ
Orange 20 Tone Underground Mining Truck Transport Diesel Powered
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUCHAI Engine With Turbocharge
Engine Power: 290HP
Transmission Model: FASITE 9JS118
Drive Mode: 4x2
Dimension Of Bottom Spring Plate: Length 90mm, Width 16mm
Cabin: Canopy
Type Of Bucket: U Type
Fuel Type: Diesel
Condition: New
High Light:

Mining Truck Transport Diesel Powered

,

Underground Mining Truck Diesel Powered

,

20 Tone Underground Mining Truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-20
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of 20 Tons Diesel Underground Mine Dump Truck



Compact and Agile Design: The Beijun underground tunnel dump truck is designed to be compact and agile, with a small turning radius and specially designed cab, suspension frame, and cargo compartment. This allows it to operate efficiently in narrow spaces, such as underground roadways and ramps, where maneuverability is essential.



Enhanced Safety Features: The dump truck is equipped with improved lamps and electrical components that are waterproof and moisture-proof, as well as dedicated anti-slippery tires. These features enhance its obstacle-crossing capability and ensure high safety in the underground environment, which can be hazardous due to poor lighting, slippery surfaces, and other factors.



Powerful Performance: The Beijun underground tunnel dump truck has a powerful engine with large torque, excellent grade, and starting performance, making it capable of transporting heavy loads efficiently in the underground environment. Its high-performance features also enable it to handle challenging terrain with ease.



High Bearing Capacity and Durability: The dump truck is designed and configured according to mining vehicle design concepts, with a bearing capacity that is 1.5 times that of ordinary road vehicles. Its sturdy construction and components ensure its durability in harsh underground conditions, making it a reliable and efficient choice for businesses and organizations that require a robust and practical vehicle for underground mining or construction operations.



Model UQ-20
Engine Model YUCHAI Engine with Turbocharge
Engine Power 290HP
Total Dimension 6200*2400*2450mm
Transmission Model FASITE 9JS118
Transmission Gear 8 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model Styer Axle
Rear Axle Model Styer Axle
Tire Model 10.00-20 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 11 PCS, Rear 12 PCS
Dimension of Bottom Spring Plate Length 90mm, Width 16mm
Size of the Bucket:Length×width×height 4500mm*2400mm*1000mm
Type of Bucket U- Type
Thickness of Bucket Steel Plate bottom 10mm side 8mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 20 Tons

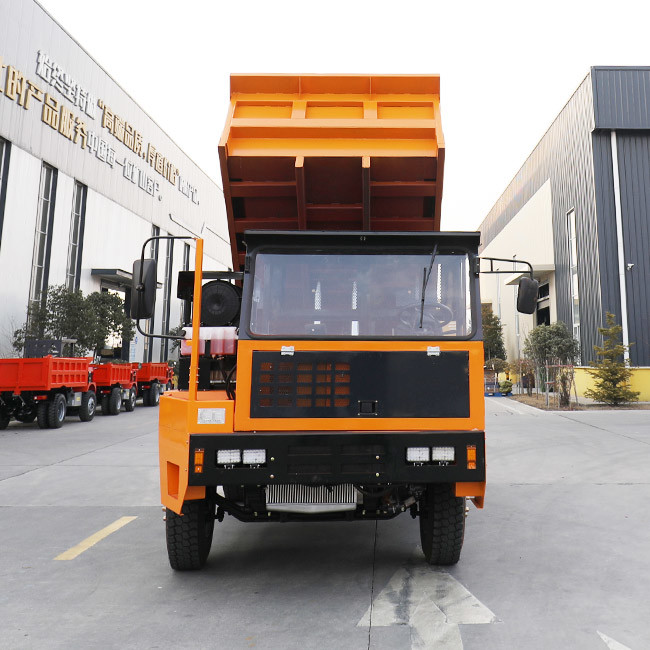

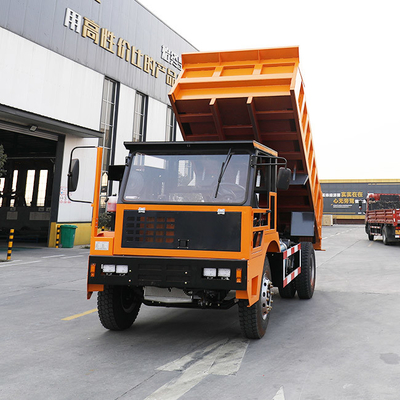

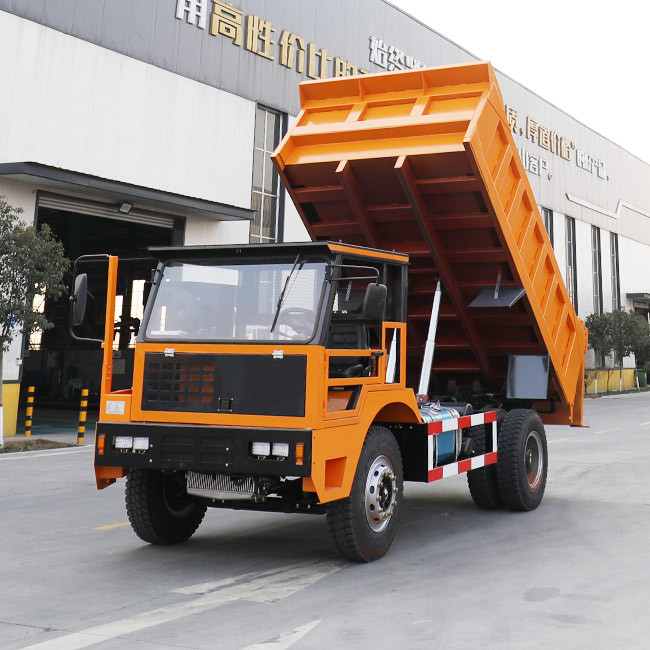

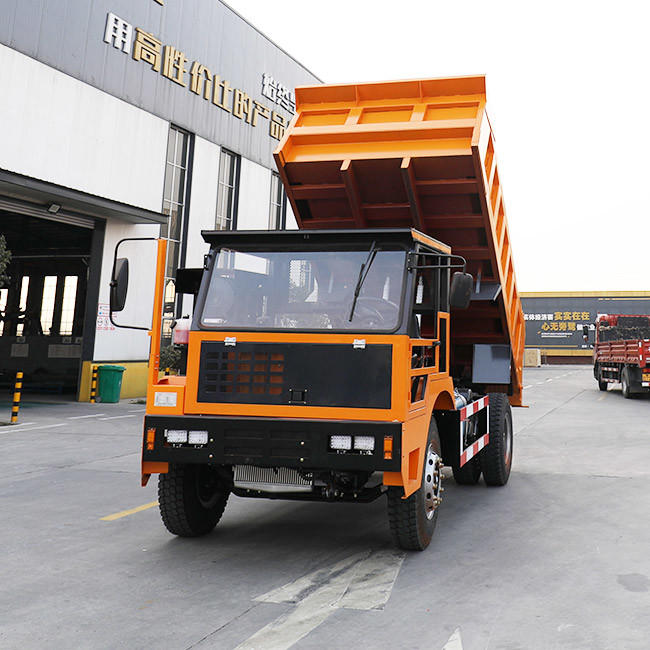

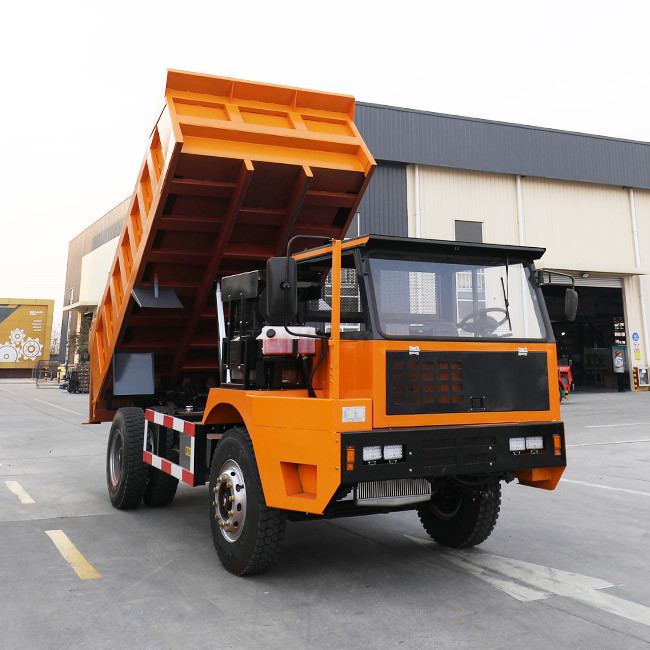

Orange 20 Tone Underground Mining Truck Transport Diesel Powered 0Orange 20 Tone Underground Mining Truck Transport Diesel Powered 1Orange 20 Tone Underground Mining Truck Transport Diesel Powered 2Orange 20 Tone Underground Mining Truck Transport Diesel Powered 3Orange 20 Tone Underground Mining Truck Transport Diesel Powered 4
