Advantages
1. Small volume. Small occupation,easy to move,good at samll crosssection tunnel,large cross section tunnel,multi-steps operation.
2. Crawling type,can running in difficult working sites and great climbing capacity.
3. Shotcrete system and pumping system seperated design. The pumping trailer can be far away from the working sites,easy for concrete conveying.
4. Full remote controlling+local operation type. Each type can operate all moves,and can switch each other,safe and convienent.
5. Simplify arm structure. More freely,easy to operate.
6. Diesel engine+electric engine double power type design. Can switch easily,avoid the effects by power off .

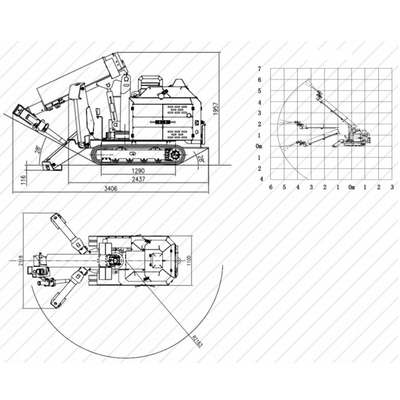

Complete machine | (L*W*H)mm | mm | 4100x1400x2540 |
Total Weight | kg | 4600+500 | |
Rated power of electrical motor | kW | 11 | |
Rated power of diesel engine | kW | 27 | |
chassis | diesel engine model | 4TNV88 | |
Max traveling speed | Km/h | 2.5/4.3 | |
Max. climbing capacity | ° | 25 | |
Boom | type of boom structure | telescopic | |
Maximum vertical spaying height | m | 8 | |
Maximum horizontal spaying width | m | 2×6.5 | |
Spraying depth | m | 2.5 | |
Boom pitching angle | ° | -35~+60 | |
Boom telescopic | mm | 2900 | |
Nozzle rotary angel | ° | 360 | |
Nozzle swing angel ° | ° | 240 | |
electrical system | External power supply | 380V/50HZ | |
mode of operation | Wireless remote control |
