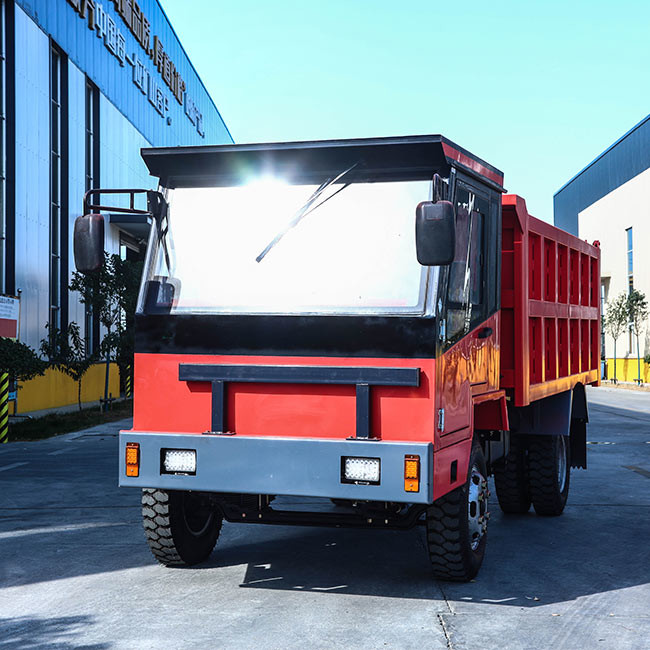

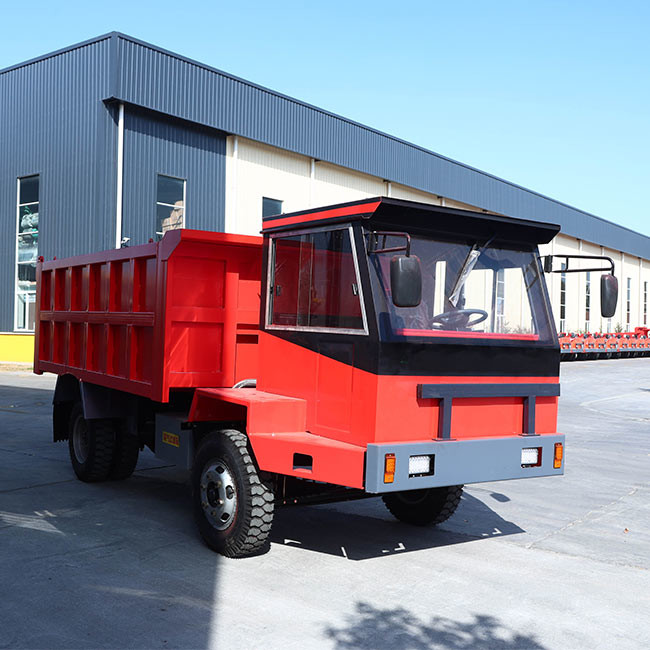

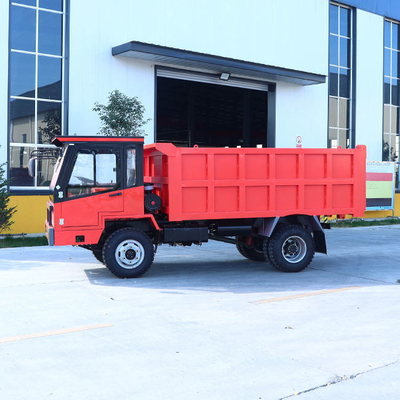

12 tons 4x2 Underground Mining 81KW Dump Trucks

12 tons 4x2 Underground Mining 81KW Dump Trucks
Features Gallery Product Description Request A Quote
Engine Model: YUNEI 4102 With Turbocharge
Engine Power: 81KW/110HP
Transmission Model: Wanliyang 545
Drive Wheel: 4x2
Dimension Of Bottom Spring Plate: Length 70mm, Width 10mm
Color: Customer's Request
Capacity (load): 1 - 12t
Type: Dumping Truck
Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-12
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of 12 tons Underground Mining Dump Truck


Maneuverability in Tight Spaces: Small dump trucks are highly maneuverable and can easily navigate through tight spaces and narrow roads, making them ideal for use on smaller job sites or areas with limited access. This can help to save time and increase productivity, as well as reduce the risk of accidents or damage to property.


Fuel Efficiency and Cost Savings: Small dump trucks are generally more fuel-efficient than larger dump trucks, which can result in lower fuel costs and reduced environmental impact. This can provide significant cost savings for businesses that operate a fleet of vehicles, and also help to reduce their carbon footprint.


Versatility for a Variety of Tasks: Small dump trucks can be used for a variety of tasks, including landscaping, excavation, and construction. They are also suitable for use in a range of industries, from agriculture and mining to transportation and waste management. This versatility makes them a valuable asset for businesses that require a reliable and adaptable vehicle for their operations.


Lower Initial Cost and Maintenance Expenses: Small dump trucks have a lower initial purchase price than larger dump trucks, which can make them more affordable for businesses with limited budgets. They also have lower maintenance costs, which can help to reduce the overall cost of ownership over time.


Overall, small dump trucks offer a range of advantages over larger dump trucks, including increased maneuverability in tight spaces, improved fuel efficiency and cost savings, versatility for a variety of tasks, and lower initial cost and maintenance expenses. These benefits make them a practical and cost-effective choice for businesses and organizations of all sizes.


Model UQ-12

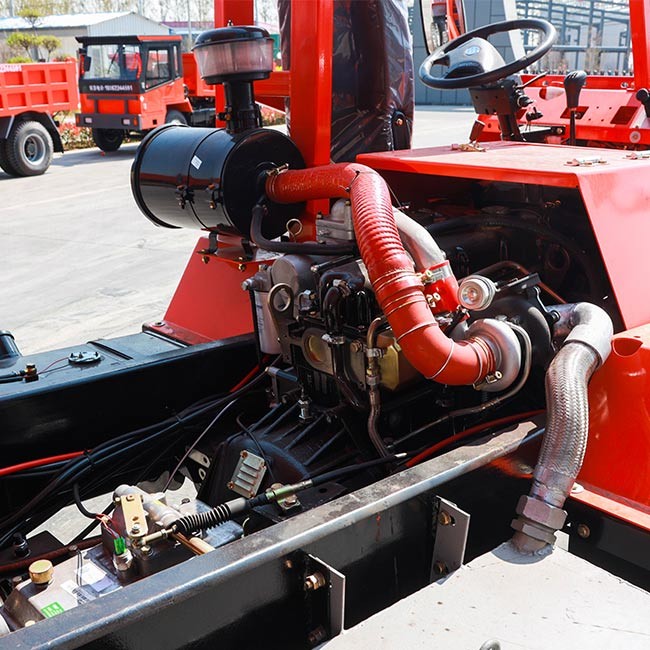

Engine Model YUCHAI 4102 with Turbocharge
Engine Power 81KW/110HP
Total Dimension 5000*2000*1700mm
Transmission Model Wanliyang 545
Transmission Gear 5 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 1098
Tire Model 825-16 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 10 PCS, Rear 10 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 10mm
Size of the Bucket:Length×width×height 3400mm*2000mm*700mm
Type of Bucket U-type
Thickness of Bucket Steel Plate bottom 8mm side 6mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 12 Tons

12 tons 4x2 Underground Mining 81KW Dump Trucks 012 tons 4x2 Underground Mining 81KW Dump Trucks 112 tons 4x2 Underground Mining 81KW Dump Trucks 212 tons 4x2 Underground Mining 81KW Dump Trucks 312 tons 4x2 Underground Mining 81KW Dump Trucks 4
