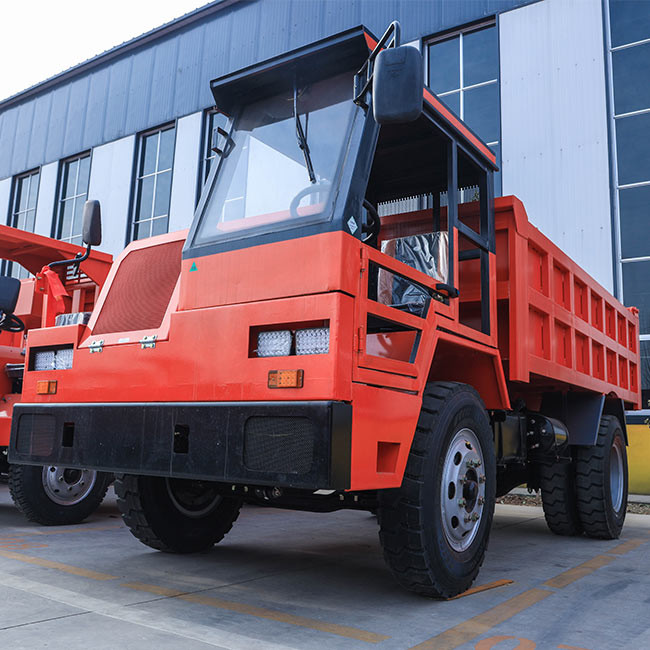

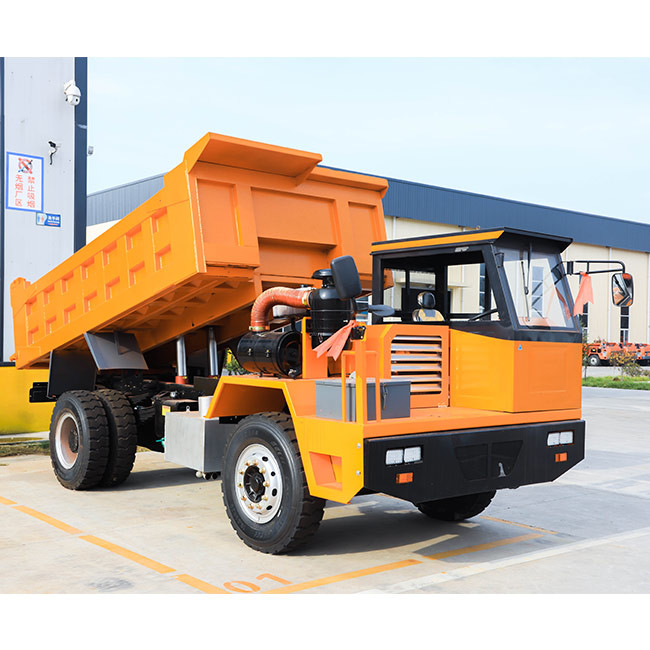

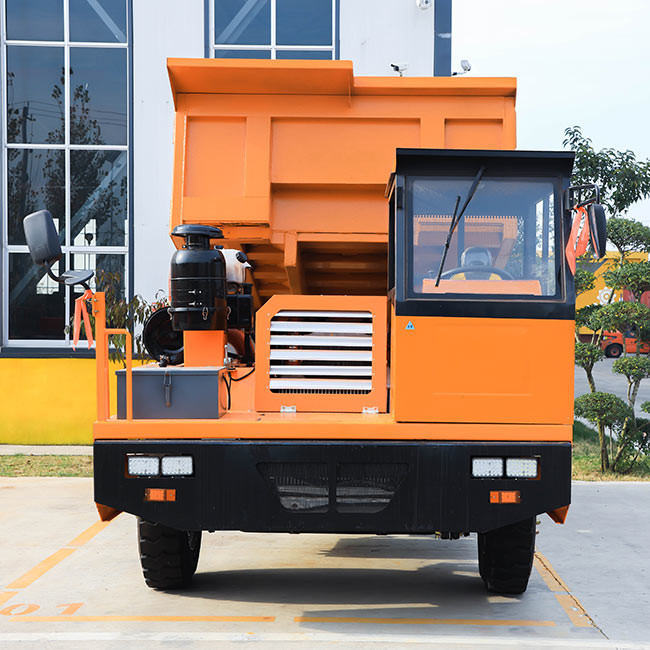

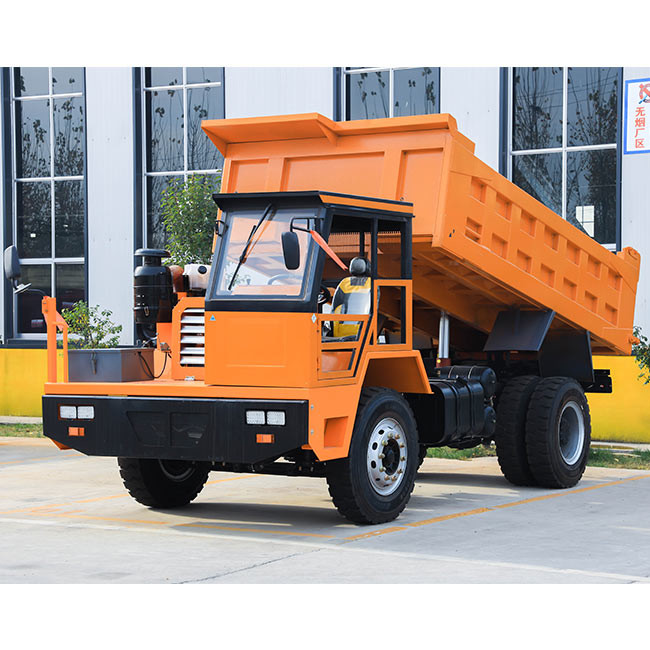

Product parameters of 15 tons Underground Mining Dump Truck
All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity.
Safety is a key consideration in the design of the Beijun truck, given the challenging conditions present in underground environments. To ensure driver safety, the truck has been equipped with improved lamps and electrical components, as well as anti-slip tires and enhanced waterproofing and moisture-proofing capabilities.
In terms of performance, the Beijun underground tunnel dump truck is a powerful vehicle. Its strong torque, excellent grade, and starting capabilities enable it to handle heavy loads and steep inclines with ease. The truck's high bearing capacity, which is 1.5 times that of a regular road vehicle, further adds to its capabilities.
Overall, the Beijun underground tunnel dump truck is a well-designed vehicle that is ideal for use in underground mining operations. Its combination of maneuverability, safety features, and strong performance make it a valuable asset for mining companies looking to boost their efficiency and productivity.
Model | UQ-15 |
Engine Model | YUCHAI 4108 with Turbocharge |
Engine Power | 118KW/160HP |
Total Dimension | 5600*2300*2000mm |
Transmission Model | FASITE 8JS118 |
Transmission Gear | 8 Forward Gear, 1Back Gear,Rear High Speed Controller |
Drive Mode | 4x2 |
Front Axle Model | 1098 |
Rear Axle Model | 153 |
Tire Model | 825-16 Radial steel tire, Rear Double Tyre One Side, |
No.of Bottom Spring Plate | Front 12 PCS, Rear 10PCS, Spare 8PCS |
Dimension of Bottom Spring Plate | Length 90mm, Width 16mm |
Size of the Bucket:Length×width×height | 4000mm*2200mm*800mm |
Type of Bucket | U Type |
Thickness of Bucket Steel Plate | bottom 10mm side 8mm |
Unloading Type | Hydraulic Double Top Dump |
Steering Type | Hydraulic power steering |
Braking Type | Air Brake |
Cabin | Canopy |
Driving Position | Left Hand Drive |
Cooling sytem | Standard Water Cooling System |
Loading Capacity | 15 Tons |
