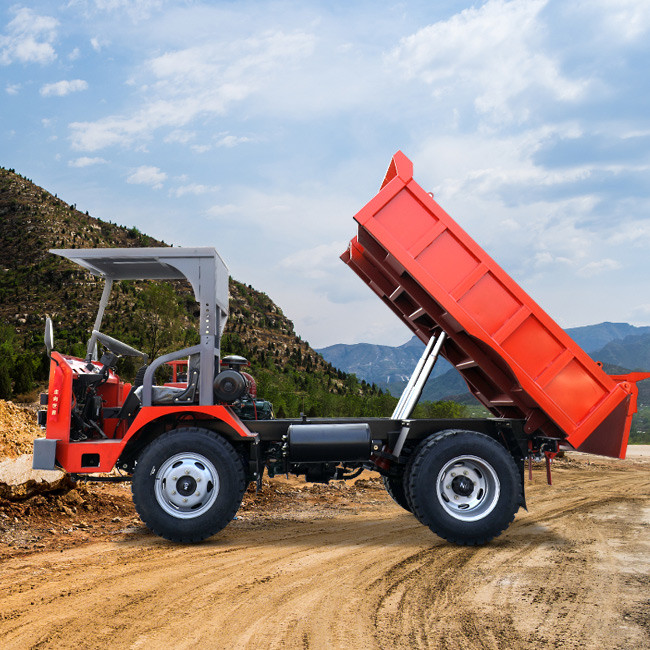

3.5 Tons Underground Mining Truck Xichai Yuchai And Yunnei Engines Used

1
MOQ
3.5 Tons Underground Mining Truck Xichai Yuchai And Yunnei Engines Used
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: CHANGCHAI 490
Engine Power: 63 HP
Transmission Model: Ningjing 130
Drive Mode: 4x4
Dimension Of Bottom Spring Plate: Length 70mm, Width 11mm
Loading Capacity: 3 Tons
Type Of Bucket: U Type Bucket
Thickness Of Bucket Steel Plate: Bottom 6mm Side 4mm
High Light:

Xichai Engine Underground Mining Truck

,

Yunnei Engines Underground Mining Truck

,

3.5 tons Underground Mining Truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-3
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 9 - 22 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of 3 Ton Dump Truck



Dump trucks are our star product. We are very familiar with it and have ten years of experience exporting heavy trucks. We attach great importance to the quality and performance of trucks.We have rich export experience. Our products are exported to many countries in Africa, Southeast Asia, and South America, and our customers are also very satisfied with our products and services. We have the ability to solve any problems you may encounter.



1. Anti-skid: Prevent the driving wheels from idling when driving on slippery roads such as snow, so that the vehicle can start and accelerate smoothly. Especially on snowy or muddy roads, the traction control system can ensure smooth acceleration performance and prevent the vehicle from drifting or drifting due to slippage of the driving wheels.
2. Flexibility: The car train has better maneuverability when towing cars.
3. Reliable work: ensure reliable, convenient and rapid detachment of the tractor and trailer.
4. Smooth: The traction force can be smoothly transmitted to the trailer, which has a certain buffering effect on impact loads.



Model UQ-3
Engine Model CHANGCHAI 490
Engine Power 63 HP
Transmission Model Ningjing 130
Transmission Gear 4 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x4
Front Axle Model CHITONG ISUZU Axle
Rear Axle Model CHITONG ISUZU Axle
Tire Model 700x16 Line Tire,
Rear Single Tyre One Side,
No.of Bottom Spring Plate Front 7 PCS, Rear 8 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 10mm
Size of the Bucket:Length×width×height 2400mm*1300mm*450mm
Type of Bucket U type Bucket
Thickness of Bucket Steel Plate bottom 6mm side 4mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 3 Tons
