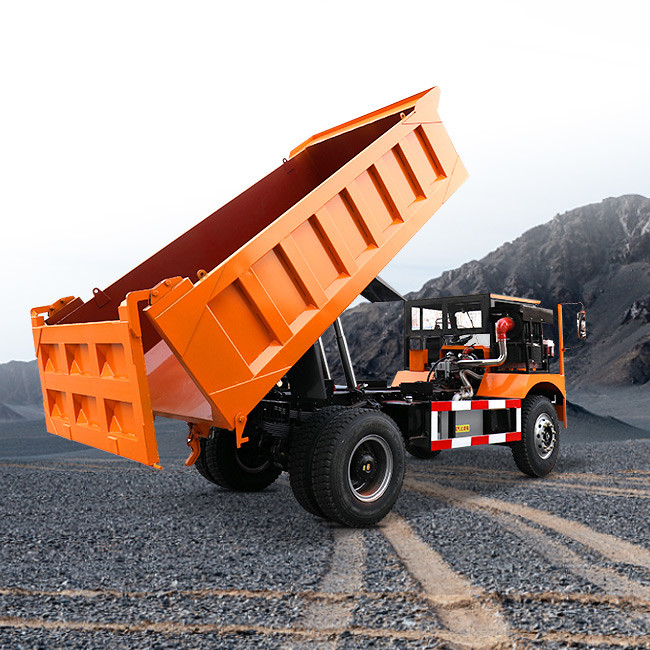

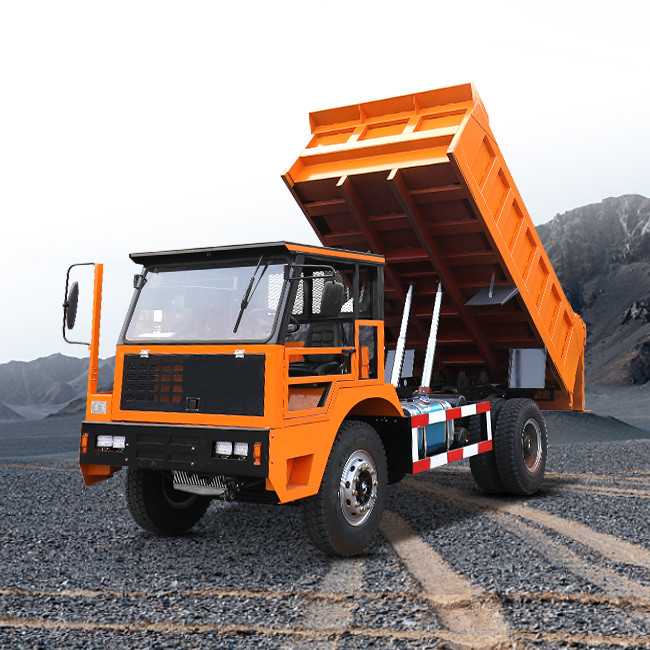

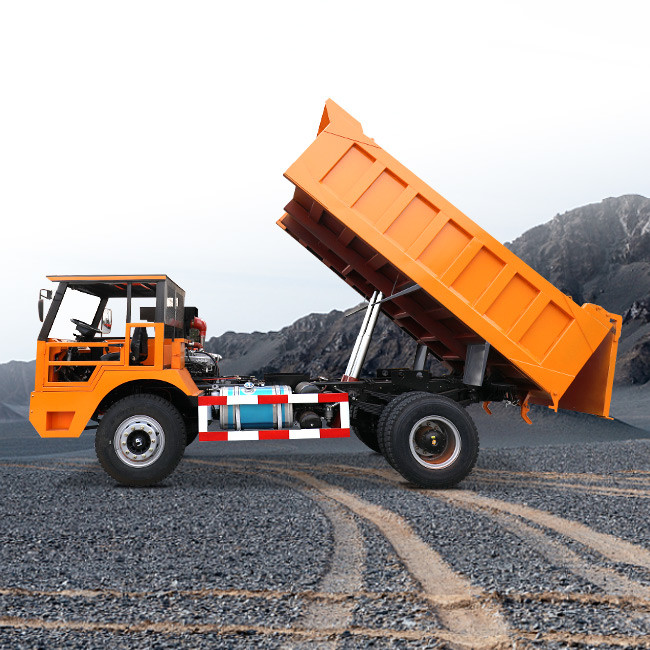

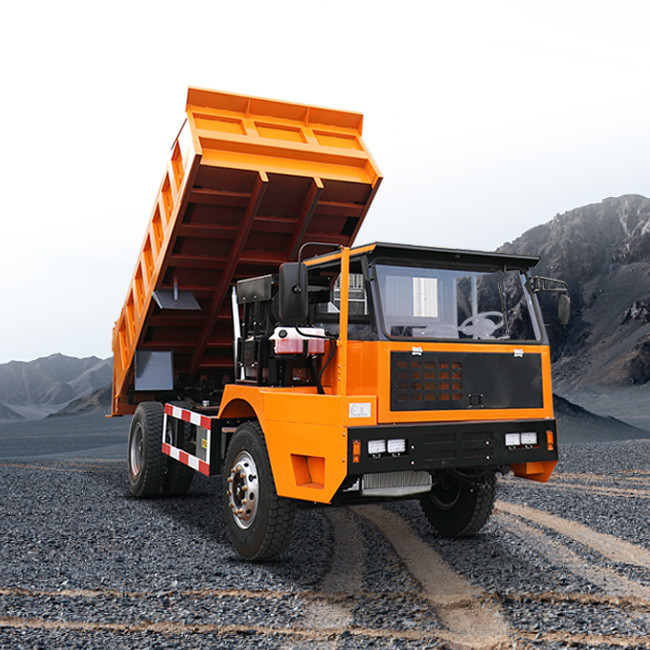

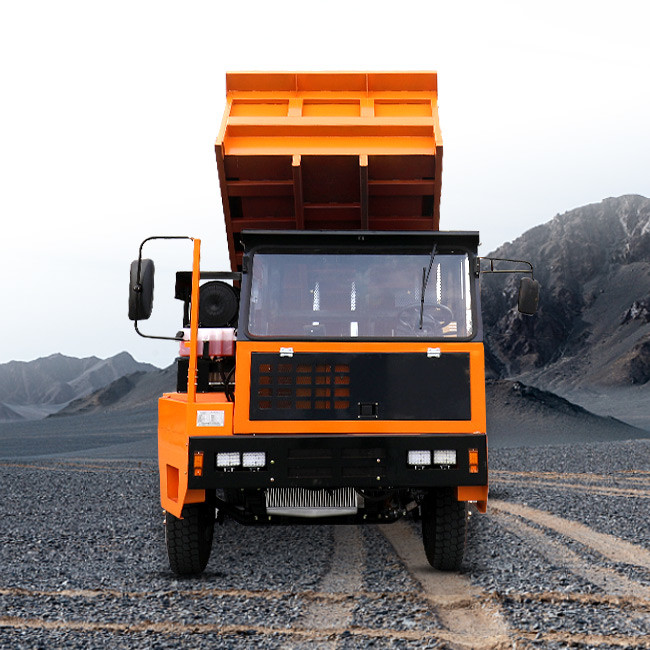

Product parameters of 20Ton Underground Mining Dump Truck
If the mining four-wheeled vehicle has not been used for more than half a month, the engine must be started once every 15 days and run for a period of time to charge the battery; if the shutdown time exceeds one month, please remove the battery and charge it with a charger. It is necessary to properly move the mining four-wheeled vehicle to change the pressure-receiving part of the tire to prevent the tire from being deformed; if the vehicle needs to be parked for more than two months, the battery negative pole must be disconnected or removed. In cold regions, the fuel should be -35# light diesel oil, and the engine oil of diesel engine should be CF grade. When the temperature is below 0 °C, the antifreeze concentration should be checked regularly, and untreated water is prohibited as the engine coolant.
| Model | UQ-20 |
| Engine Model | YUCHAI Engine with Turbocharge |
| Engine Power | 290HP |
| Total Dimension | 6200*2400*2450mm |
| Transmission Model | FASITE 9JS118 |
| Transmission Gear | 8 Forward Gear, 1Back Gear,Rear High Speed Controller |
| Drive Mode | 4x2 |
| Front Axle Model | Styer Axle |
| Rear Axle Model | Styer Axle |
| Tire Model | 10.00-20 Radial steel tire, Rear Double Tyre One Side, |
| No.of Bottom Spring Plate | Front 11 PCS, Rear 12 PCS |
| Dimension of Bottom Spring Plate | Length 90mm, Width 16mm |
| Size of the Bucket:Length×width×height | 4500mm*2400mm*1000mm |
| Type of Bucket | U- Type |
| Thickness of Bucket Steel Plate | bottom 10mm side 8mm |
| Unloading Type | Hydraulic Double Top Dump |
| Steering Type | Hydraulic power steering |
| Braking Type | Air Brake |
| Cabin | Canopy |
| Driving Position | Left Hand Drive |
| Cooling sytem | Standard Water Cooling System |
| Loading Capacity | 20 Tons |
