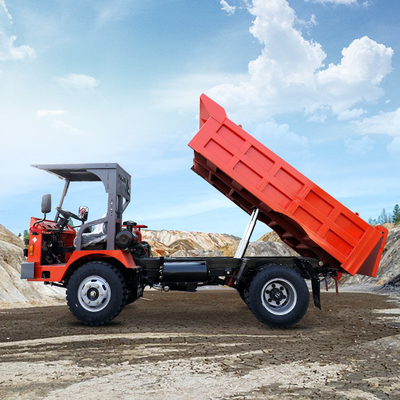

Beijun 1-5 Tons Underground Dump Truck Mini Mining High Performance

1
MOQ
Beijun 1-5 Tons Underground Dump Truck Mini Mining High Performance
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: FAW - 4DW92-73
Engine Power: 54KW/73HP
Transmission Model: WANLIYANG 530
Drive Mode: 4x2
Dimension Of Bottom Spring Plate: Length 70mm, Width 99mm
Loading Capacity: 5 Tons
Type Of Bucket: U Type Bucket
Thickness Of Bucket Steel Plate: Bottom 9mm Side 6mm
High Light:

5 Ton underground dump truck

,

Mini High Performance underground dump truck

,

1 Ton underground mining dump truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-5
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 6-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of Mini Underground Mining Dump Truck with Loading Capacity 1ton to 5 tons



A 5-ton mining transport vehicle, also known as a 5-ton underground transport vehicle, a 5-ton underground dump truck, a 5-ton underground dump truck, a 5-ton mining dump truck, a 5-ton mining four different type vehicle, a 5-ton underground mining transport vehicle, and a 5-ton ore transport vehicle, is a transport vehicle driven by a diesel engine. Mainly used for transportation vehicles in various mining tunnels, construction sites, tunnels, and other places, with self unloading function. The carriages use their own gravity and hydraulic control to reset. By obtaining the UQ-5, UQ-8, UQ-12, and UQ-25 mining safety standard qualification certificates, we can customize mining transport vehicles suitable for your specific driving roads, such as tunnels, mines, level tunnels, and inclined shafts. Mining dump trucks can only operate within a limited mining area, and their external dimensions are not limited. In order to increase the transportation volume of each vehicle, the compartment volume should be increased as much as possible in its usage environment, and the overall dimensions of the vehicle should be widened and raised.



The 5-ton mining transport vehicle is specifically designed for harsh working environments, heavy loads, and high-intensity usage needs, with very strict requirements for the overall quality of the body. The 5-ton mining transport vehicle is equipped with a low-speed high torque engine, special transmission, speed ratio to the driving axle, reliable performance, and high efficiency and energy saving. The box has a wide body beam with a strong cross-section, which is sturdy and durable. Specially designed suspension systems and large diameter engineering tires ensure that they have super load carrying capacity. Mining transportation vehicles are located in mining areas with high labor intensity and good condition, ensuring the production needs of customers.



Model UQ-5
Engine Model FAW - 4DW92-73
Engine Power 54KW/73HP
Transmission Model WANLIYANG 530
Transmission Gear 5 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1069
Rear Axle Model 1069
Tire Model 700x16 Line Tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 10 PCS, Rear 10 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 100mm
Size of the Bucket:Length×width×height U type Bucket 2800mm*1600mm*550mm
Type of Bucket
Thickness of Bucket Steel Plate bottom 8mm side 6mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy with Glass and Rain Bush
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 6 Tons



Beijun 1-5 Tons Underground Dump Truck Mini Mining High Performance 0Beijun 1-5 Tons Underground Dump Truck Mini Mining High Performance 1Beijun 1-5 Tons Underground Dump Truck Mini Mining High Performance 2Beijun 1-5 Tons Underground Dump Truck Mini Mining High Performance 3Beijun 1-5 Tons Underground Dump Truck Mini Mining High Performance 4Beijun 1-5 Tons Underground Dump Truck Mini Mining High Performance 5
