UQ-10 4x2 Driven Underground Trucks Mining 5 Speed Gearbox 10 Tons Capacity

1
MOQ
UQ-10 4x2 Driven Underground Trucks Mining 5 Speed Gearbox 10 Tons Capacity
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUNEI 4102 With Turbocharge
Engine Power: 70KW/95HP
Transmission Model: Wanliyang 545
Drive Mode: 4x2
Dimension Of Bottom Spring Plate: Length 71mm, Width 12mm
Loading Capacity: 10 Tons
Type: Underground Mining Dump Truck
Application: Mine
High Light:

4x2 Underground Trucks Mining

,

10 Tons Capacity Underground Trucks Mining

,

10Tons Capacity Underground Mining Dump Truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-10
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 9-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of 10 Tons Mine Dump Trucks



Dump truck is also called dumper truck, tipper truck, dump truck tipper, tipper etc.The overall designing of the vehicles is fashionable and pleasing to the eyes. The vehicle frame is molded by stamping and this guarantees the strength of the crossbeams. The dump trucks adopts is consisted of dump truck chassis, tipping box, hydraulic cylinder for dump truck The axle technique unique to vehicles boasts of features such as high reliability, fuel economy, high attendance rate, strengthened structure, large cargo capacity, all making it suitable for engineering projects such as road and bridge construction, water conservancy projects, as well as transportation of various heavy goods.. The dump truck is mainly used for transport sands, stone, gravels, etc.



Dump semi trailer adopt advanced design concept. For the tipper trailer box, we adopt high strength steel to make it durable when load the sand or small stones or rocks, especially under the off road condition.Chassis adopts special chassis produced by various chassis manufacturers, with advanced technology and reliable performance. The advanced software optimizes the design of the products to meet the individual needs of customers. The process tooling of flow operation ensures the excellent quality of products.



The use of low-lying operating platforms effectively reduces the overall height of the vehicle, making it flexible to use in alleyways. Although many manufacturers on the market also produce low-lying operating platforms, they first appeared in our company. Adopting a fully enclosed dust-free welding workshop, it effectively prevents insufficient air protection caused by air convection, thereby ensuring that the weld seam is not porous or prone to breakage.



Model UQ-10
Engine Model YUNEI 4102 with Turbocharge
Engine Power 70KW/95HP
Total Dimension 4800*1800*1600mm
Transmission Model Wanliyang 545
Transmission Gear 5 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 1098
Tire Model 750-16 Line Tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 10 PCS, Rear 10 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 10mm
Size of the Bucket:Length×width×height 3200mm*1800mm*600mm
Type of Bucket U type Bucket
Thickness of Bucket Steel Plate bottom 8mm side 6mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 10 Tons

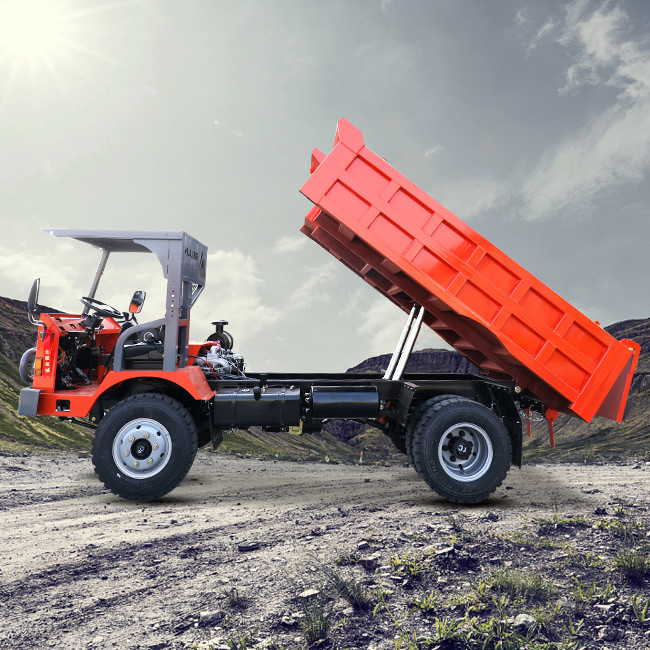

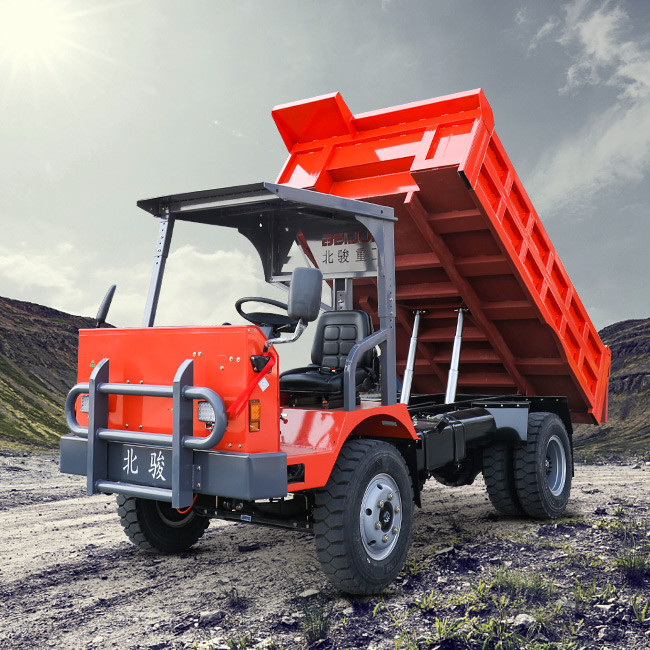

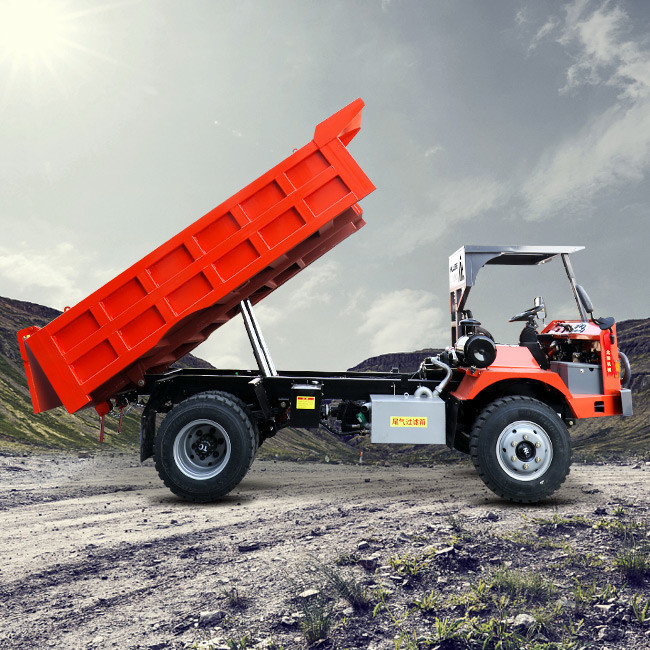

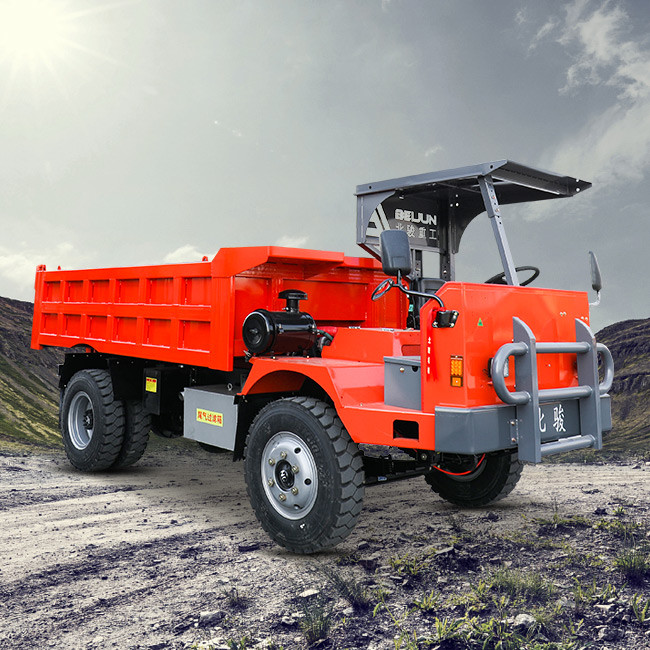

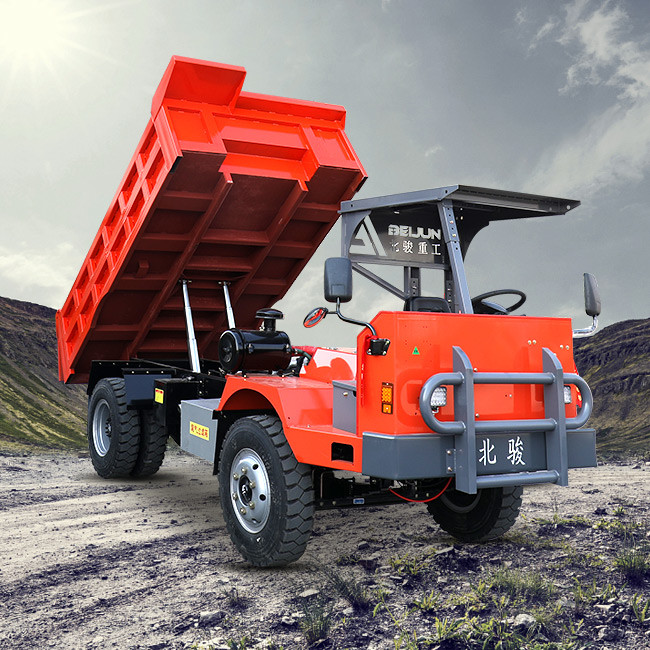

UQ-10 4x2 Driven Underground Trucks Mining 5 Speed Gearbox 10 Tons Capacity 0UQ-10 4x2 Driven Underground Trucks Mining 5 Speed Gearbox 10 Tons Capacity 1UQ-10 4x2 Driven Underground Trucks Mining 5 Speed Gearbox 10 Tons Capacity 2UQ-10 4x2 Driven Underground Trucks Mining 5 Speed Gearbox 10 Tons Capacity 3UQ-10 4x2 Driven Underground Trucks Mining 5 Speed Gearbox 10 Tons Capacity 4
