15 Ton Underground Dump Truck Mine 118KW / 160HP YUCHAI Engine

1
MOQ
USD 5000-10000 Set
Price
15 Ton Underground Dump Truck Mine 118KW / 160HP YUCHAI Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUCHAI 4108 With Turbocharge
Engine Power: 118KW/160HP
Transmission Model: FASITE 8JS118
Front Axle Model: 1010
Dimension Of Bottom Spring Plate: Length 90mm, Width 17mm
Unloading Type: Hydraulic Double Top Dump
Type Of Bucket: U Type
Thickness Of Bucket Steel Plate: Bottom 10mm Side 9mm
High Light:

15 Ton Underground Dump Truck

,

160HP Underground Dump Truck

,

YUCHAI Engine Dump Truck Underground

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-15
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 9-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of Loading Capacity 15 tons Underground Mining Dump Truck



UQ-15 Certified to mine safety standards. It have the characteristics of large traction, good climbing performance and strong transportation capacity. The truck Dimension is small, Suitable for working in narrow mine tunnel. Exhaust gas treatment is Water filter purifier, reducing air pollution when working in underground mines. UQ-15 is suitable for a variety of complex and harsh road conditions such as agriculture, forestry orchard transportation, freight yard loading, water conservancy construction, infrastructure engineering, mines and other places.



Adopting a gear shift sleeve protection can effectively increase the rebound force and service life of the flexible shaft, making the gear position clearer and more flexible. It also prevents rainwater, dust and other stains from entering the inner core of the gear line, and avoids the phenomenon of being unable to shift due to ice formation in the inner core of the gear line in winter. The use of shock absorption seats is mainly to cushion the vibration from the entire vehicle, improve comfort, and make driving more comfortable for mining drivers. The key parts of the entire vehicle are equipped with flange self-locking bolts, all of which are grade 10.9 or above, effectively avoiding the loosening and detachment of screws.



Model UQ-15
Engine Model YUCHAI 4108 with Turbocharge
Engine Power 118KW/160HP
Total Dimension 5600*2300*2000mm
Transmission Model FASITE 8JS118
Transmission Gear 8 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 153
Tire Model 825-16 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 12 PCS, Rear 10PCS, Spare 8PCS
Dimension of Bottom Spring Plate Length 90mm, Width 16mm
Size of the Bucket:Length×width×height 4000mm*2200mm*800mm
Type of Bucket U Type
Thickness of Bucket Steel Plate bottom 10mm side 8mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 15 Tons

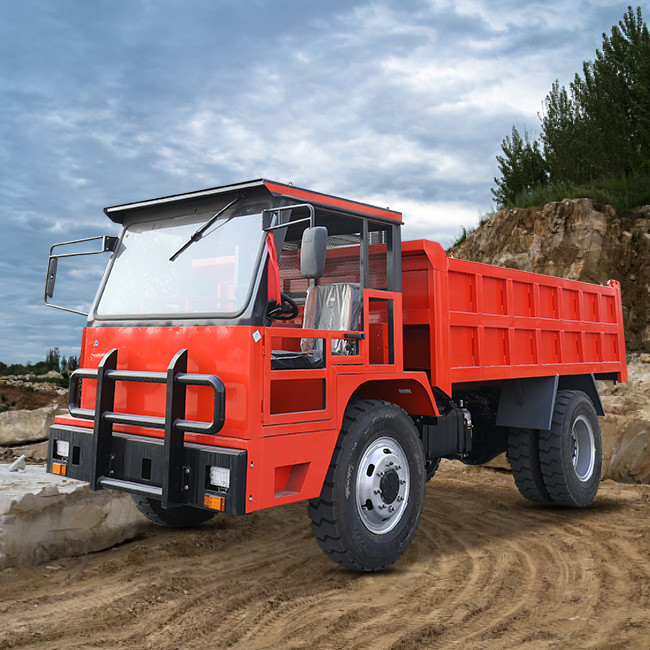

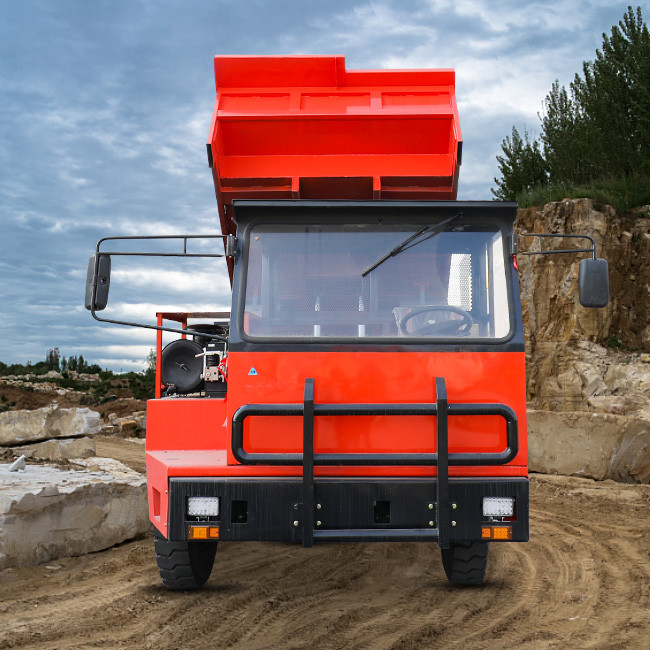

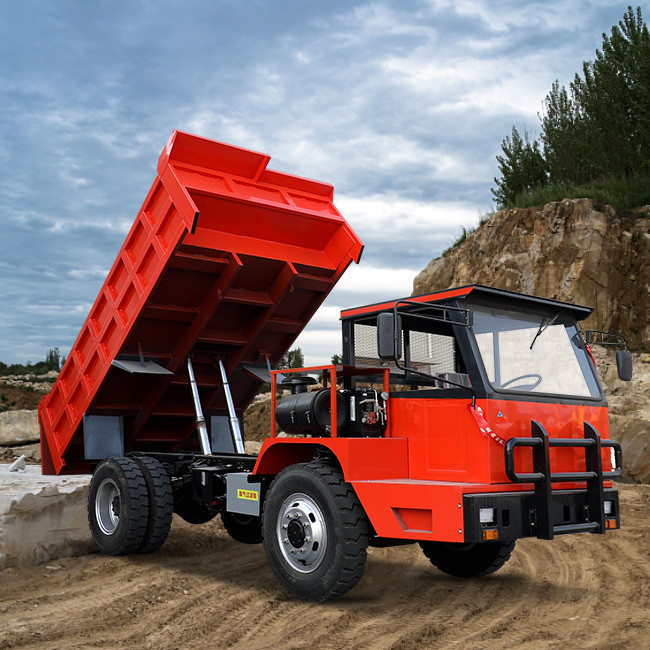

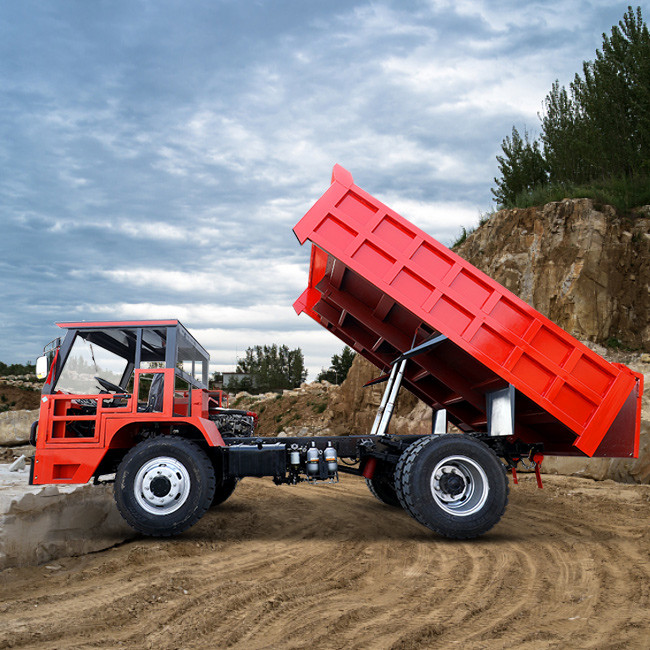

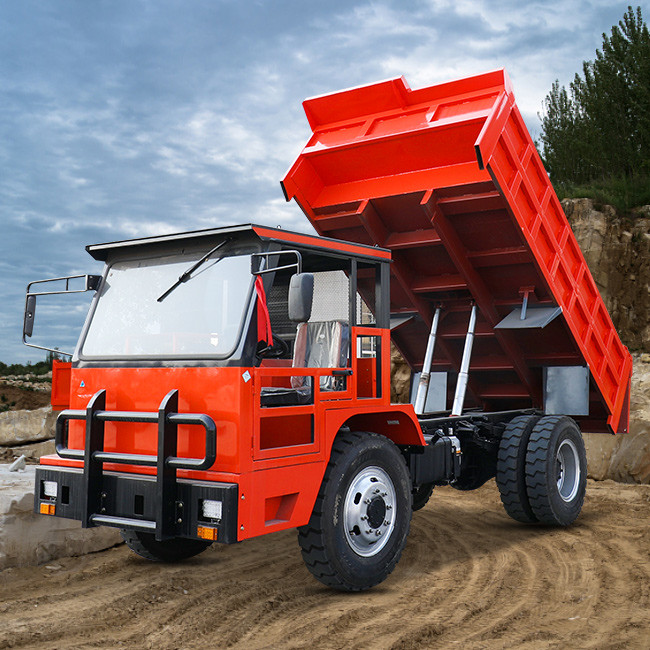

15 Ton Underground Dump Truck Mine 118KW / 160HP YUCHAI Engine 015 Ton Underground Dump Truck Mine 118KW / 160HP YUCHAI Engine 115 Ton Underground Dump Truck Mine 118KW / 160HP YUCHAI Engine 215 Ton Underground Dump Truck Mine 118KW / 160HP YUCHAI Engine 315 Ton Underground Dump Truck Mine 118KW / 160HP YUCHAI Engine 4
