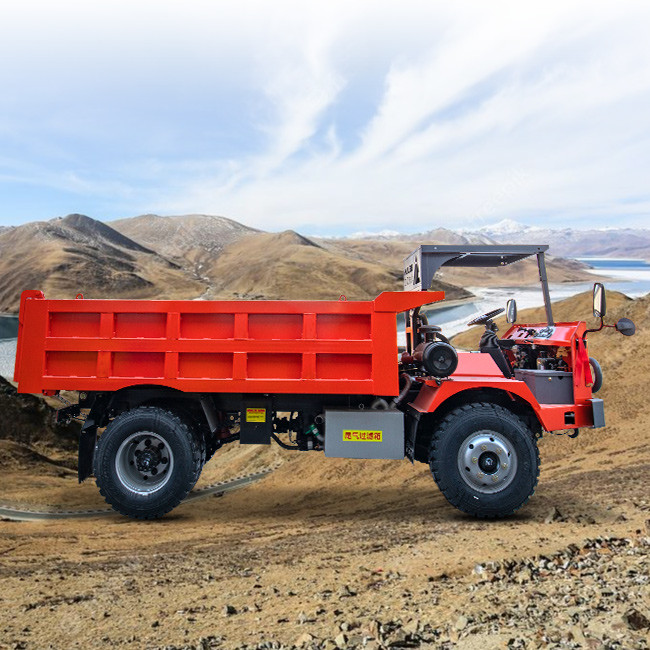

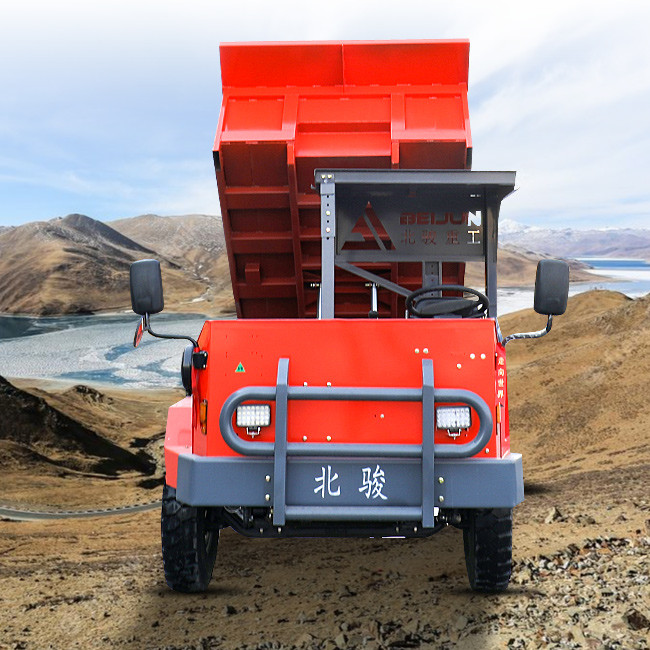

Product parameters of 7 Ton Mining Dump Truck
UQ-7 has passed the national mining product safety certification, with reliable and stable performance, flexible and convenient operation, large driving force, strong clim ability, stable operation, small tuming radius, safe and reliable. This model can be customized. Our UQ-7 wheel dumper truck is suitable for a variety of complex and harsh road conditions such as agriculture, forestry orchard transportation, freight yard loading, water conservancy construction, infrastructure engineering, mines and other places. Dump truck is a heavy goods vehicle used to transport and unload bulk materials. It has a liftable or tiltable cargo box or bucket for quick and efficient dumping. It is often used in construction sites and mines to transport soil, sand, ore, etc. The dump truck is composed of a powerful engine and a solid chassis, and the operation is controlled by a professional driver. It is an essential tool in the construction engineering and mining industries, providing convenience and efficiency.
Beijun has complete processing equipment, including bending machines, shearing machines, rotary machines, plasma laser cutting machines, CNC laser cutting machines, and other processing equipment. High equipment precision, fast efficiency, no need for outsourcing in the processing of ordinary steel, strong production capacity. Spraying has strong rust removal ability. In order to improve the adhesion of the paint surface, the carriage needs to be pickled with acid pickling phosphating solution before spraying to make the sprayed paint surface more shiny.
Beijun Heavy Industry's products have been distributed throughout the country, and the company has also established its own foreign trade team. The products have also been exported to numerous foreign markets. The product quality of Beijun Heavy Industry has been deeply recognized by mining security inspection units and has been awarded eight safety standards certificates. In addition, we also have multiple production qualifications such as trackless vehicles, articulated mining trucks, explosion-proof vehicles, etc., becoming the most qualified underground dump truck manufacturer in China.
Model | UQ-7 |
Engine Model | YUNEI 4102 |
Engine Power | 70KW/95HP |
Total Dimension | |
Transmission Model | Wanliyang 545 |
Transmission Gear | 5 Forward Gear, 1Back Gear,Rear High Speed Controller |
Drive Mode | 4x2 |
Front Axle Model | 1098 |
Rear Axle Model | 1098 |
Tire Model | 750x-6 Line Tire, Rear Double Tyre One Side, |
No.of Bottom Spring Plate | Front 10 PCS, Rear 10 PCS, Spare 6PCS |
Dimension of Bottom Spring Plate | Length 70mm, Width 10mm |
Size of the Bucket:Length×width×height | 3000mm*1800mm*600mm |
Type of Bucket | U type Bucket |
Thickness of Bucket Steel Plate | bottom 8mm side 6mm |
Unloading Type | Hydraulic Double Top Dump |
Steering Type | Hydraulic power steering |
Braking Type | Air Brake |
Cabin | Canopy |
Driving Position | Left Hand Drive |
Cooling sytem | Standard Water Cooling System |
Loading Capacity | 7 Tons |
