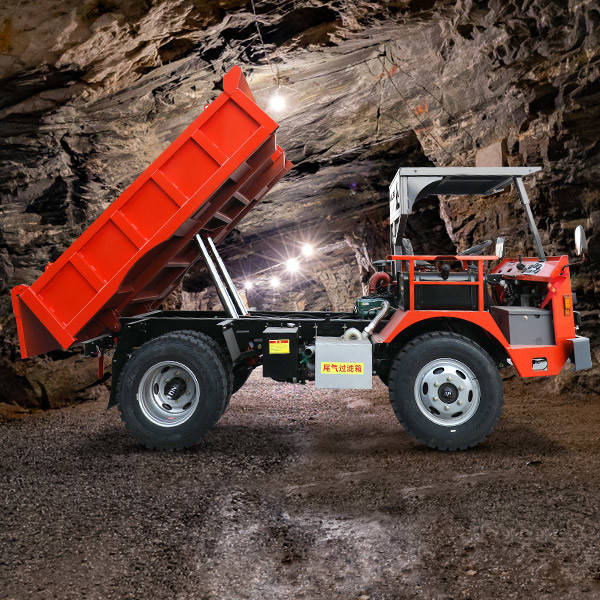

3 Ton Underground Articulated Truck Diesel Portable 4x4 Wheel

1
MOQ
3 Ton Underground Articulated Truck Diesel Portable 4x4 Wheel
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: CHANGCHAI 490
Engine Power: 63 HP
Transmission Model: Ningjing 130
Drive Mode: 4x4
Dimension Of Bottom Spring Plate: Length 71mm, Width 12mm
Loading Capacity: 3 Tons
Type Of Bucket: U Type Bucket
Thickness Of Bucket Steel Plate: Bottom 6mm Side 5mm
High Light:

3 ton underground haul truck

,

4x4 underground haul truck

,

diesel underground mining truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-3
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 6 - 10 days
Payment Terms: L/C, T/T
Supply Ability: 500 Set/Sets per Month
Product Description

Product parameters of 3 Ton Mini Wheel Dumper Truck Use Vehicle Hydraulic Diesel Underground Mine Small Dump Truck For Mining



Our mining truck tires are made of high-quality compounds, which are resistant to chipping and chipping. Our truck tires prevent rock damage and can withstand rough use. Long tire life, cost-effectiveness and operator safety are significantly improved. We provide customers with first-class services, including product selection, on-site service and training, claims, technical support, continuous improvement of design and quality, and tire retreading. Please feel free to contact us for consultation. Because the trucks dump horizontally, as opposed to vertically like a normal dump truck, the trucks can backfill waste material in the underground voids up to the hanging wall. The trucks are very stable, even on side slopes and can even dump while moving.



Because of their usefulness and versatility, dump trucks play an important role in various applications, carrying heavy loads across dirt, mud, rock and gravel. Articulated dump trucks are built for mobility in smaller areas and less than ideal terrain, making them more common on construction sites and sites that require severe service. Beijun dump trucks have both a cab and trailer component that can move separately, offering more maneuverability. With a tighter turn radius and increased off-road capabilities, articulated dump trucks perform well in tight spaces like construction sites or mines. These advantages place them in challenging environments that require high traction and resistance to cuts, punctures, wear and heat. Overseas customers can enjoy after-sale service and dispatching service. There is also components storage of this mining dumper lorry to provide optimal service.



Model UQ-3
Engine Model CHANGCHAI 490
Engine Power 63 HP
Transmission Model Ningjing 130
Transmission Gear 4 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x4
Front Axle Model CHITONG ISUZU Axle
Rear Axle Model CHITONG ISUZU Axle
Tire Model 700x16 Line Tire,
Rear Single Tyre One Side,
No.of Bottom Spring Plate Front 7 PCS, Rear 8 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 10mm
Size of the Bucket:Length×width×height 2400mm*1300mm*450mm
Type of Bucket U type Bucket
Thickness of Bucket Steel Plate bottom 6mm side 4mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 3 Tons



3 Ton Underground Articulated Truck Diesel Portable 4x4 Wheel 0

3 Ton Underground Articulated Truck Diesel Portable 4x4 Wheel 1

3 Ton Underground Articulated Truck Diesel Portable 4x4 Wheel 2

3 Ton Underground Articulated Truck Diesel Portable 4x4 Wheel 3

3 Ton Underground Articulated Truck Diesel Portable 4x4 Wheel 4

3 Ton Underground Articulated Truck Diesel Portable 4x4 Wheel 5
