Product parameters of 20Ton Underground Mining Dump Truck
Dump trucks are heavy machinery used to transport large amounts of loose materials such as dirt, sand, ore, gravel and demolition waste in mining, civil or large construction sites. If your next construction or mining project needs to transport bulk materials, you will most likely need a dump truck.Dump trucks, also called dump trucks or dump trucks, are used to collect construction coal (such as sand, gravel or demolition waste) and coal. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic tappets to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck Place of delivery.

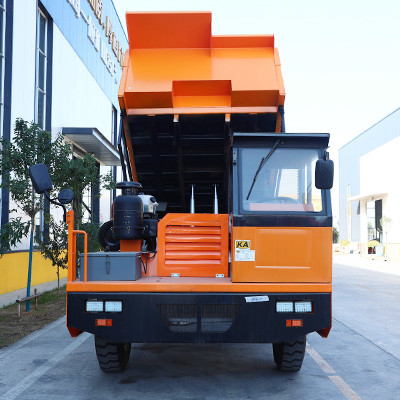

UQ-20 dumper trucks are mainly used in underground non-coal mines, mainly for transporting mine materials after blasting, but also for roads, railroads and other narrow, low, harsh environment of the tunnel project. The core parts of this series of trucks are all international famous brand products, with compact structure design, strong power and stable performance. It is comfortable to drive and efficient in transportation.
Design
Our underground mining dump trucks have a sturdy and simple design that can cope with challenging environments and conditions. They are robust, productive and efficient equipment.
Excellent mobility
Through compact size, short turning radius, articulated frame and steering control device. The ergonomically designed cab provides maximum comfort with full control.
Constantly upgrading
Over the years, design and manufacturing have been continuously upgraded to meet the most demanding requirements of the underground mining industry. All selected components, parts and components meet and exceed strict standards, aiming to simplify maintenance, reduce downtime, reduce operating costs and increase productivity.
| Model | UQ-20 |
| Engine Model | YUCHAI Engine with Turbocharge |
| Engine Power | 290HP |
| Total Dimension | 6200*2400*2450mm |
| Transmission Model | FASITE 9JS118 |
| Transmission Gear | 8 Forward Gear, 1Back Gear,Rear High Speed Controller |
| Drive Mode | 4x2 |
| Front Axle Model | Styer Axle |
| Rear Axle Model | Styer Axle |
| Tire Model | 10.00-20 Radial steel tire, Rear Double Tyre One Side, |
| No.of Bottom Spring Plate | Front 11 PCS, Rear 12 PCS |
| Dimension of Bottom Spring Plate | Length 90mm, Width 16mm |
| Size of the Bucket:Length×width×height | 4500mm*2400mm*1000mm |
| Type of Bucket | U- Type |
| Thickness of Bucket Steel Plate | bottom 10mm side 8mm |
| Unloading Type | Hydraulic Double Top Dump |
| Steering Type | Hydraulic power steering |
| Braking Type | Air Brake |
| Cabin | Canopy |
| Driving Position | Left Hand Drive |
| Cooling sytem | Standard Water Cooling System |
| Loading Capacity | 20 Tons |
