3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel

1
MOQ
3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: CHANGCHAI 490
Engine Power: 63 HP
Transmission Model: Ningjing 130
Drive Mode: 4x4
Dimension Of Bottom Spring Plate: Length 71mm, Width 9mm
Loading Capacity: 3 Tons
Type Of Bucket: U Type Bucket
Thickness Of Bucket Steel Plate: Bottom 6mm Side 5mm
High Light:

3ton underground dump truck

,

tunnel underground dump truck

,

3 ton dump truck underground

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-3
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 8-16 days
Payment Terms: L/C, T/T
Supply Ability: 1500 Set/Sets per Month
Product Description

Product parameters of 3 Ton Mini Wheel Dumper Truck Use Vehicle Hydraulic Diesel Underground Mine Small Dump Truck For Mining



Underground trucks are also known as underground mining trucks, underground dump trucks. BEIJUN underground mining trucks are designed to transport rock material safely, efficiently and reliably in extreme conditions. The underground trucks are rugged, compact and powerful, offering payloads from 3 to 60 tons, and operating at a low cost per tonne. A reliable, hard-working dump truck specifically designed for underground conditions. With a highly efficient power and drive-train combined with low rolling resistance Superior fuel efficiency.



UQ-3 underground mining trucks are designed for high production, low cost-per-ton hauling in underground mining applications. Rugged construction and simplified maintenance guarantee long life with low operating costs. It is designed for high production, low cost-per-ton hauling in smaller underground mining applications. Rugged construction and easy maintenance guarantee long life with low operating costs. Engineered for performance, designed for comfort, built to last.



Model UQ-3
Engine Model CHANGCHAI 490
Engine Power 63 HP
Transmission Model Ningjing 130
Transmission Gear 4 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x4
Front Axle Model CHITONG ISUZU Axle
Rear Axle Model CHITONG ISUZU Axle
Tire Model 700x16 Line Tire,
Rear Single Tyre One Side,
No.of Bottom Spring Plate Front 7 PCS, Rear 8 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 10mm
Size of the Bucket:Length×width×height 2400mm*1300mm*450mm
Type of Bucket U type Bucket
Thickness of Bucket Steel Plate bottom 6mm side 4mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 3 Tons

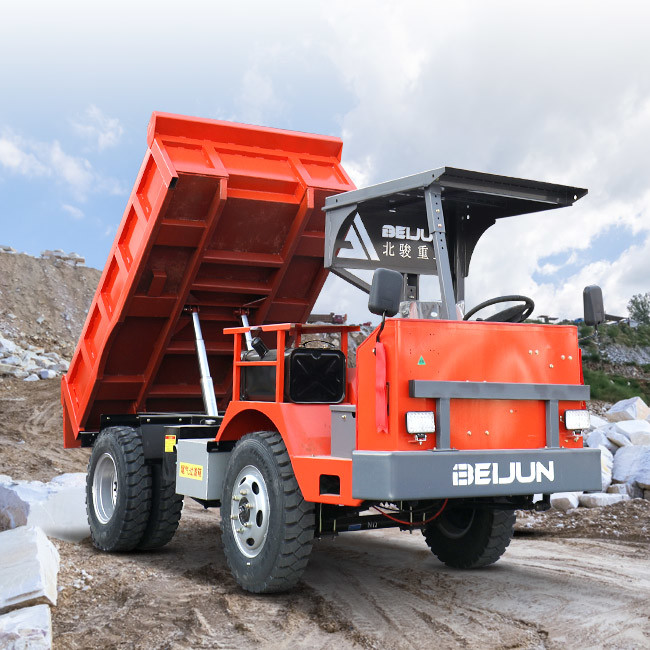

3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel 0

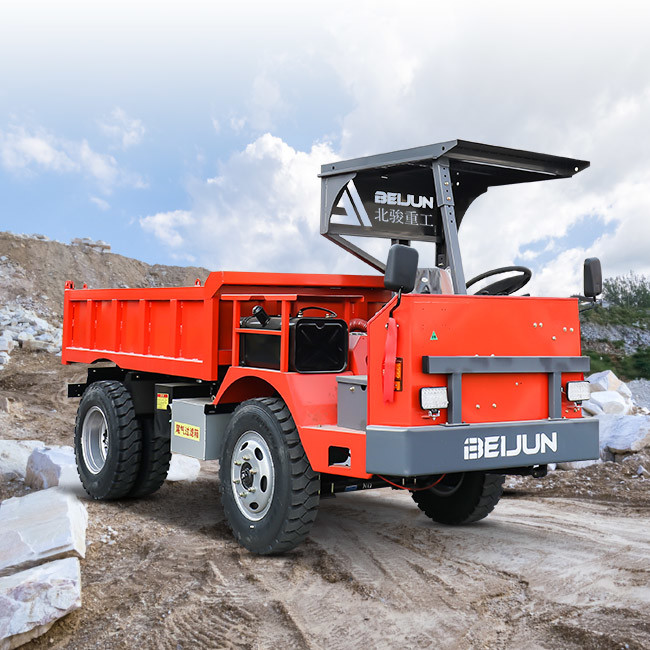

3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel 1

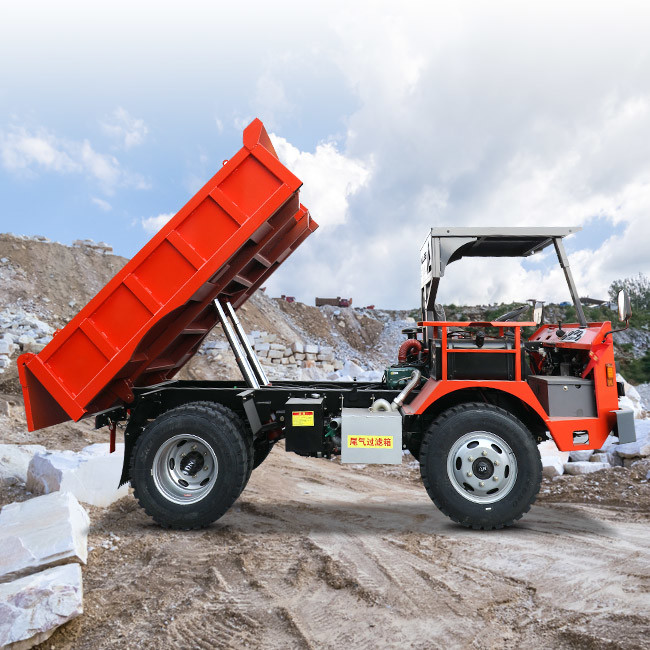

3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel 2

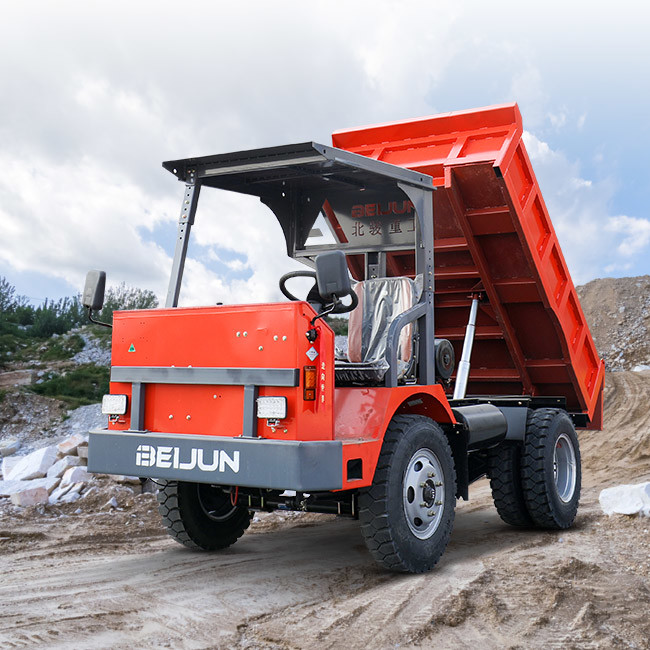

3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel 3

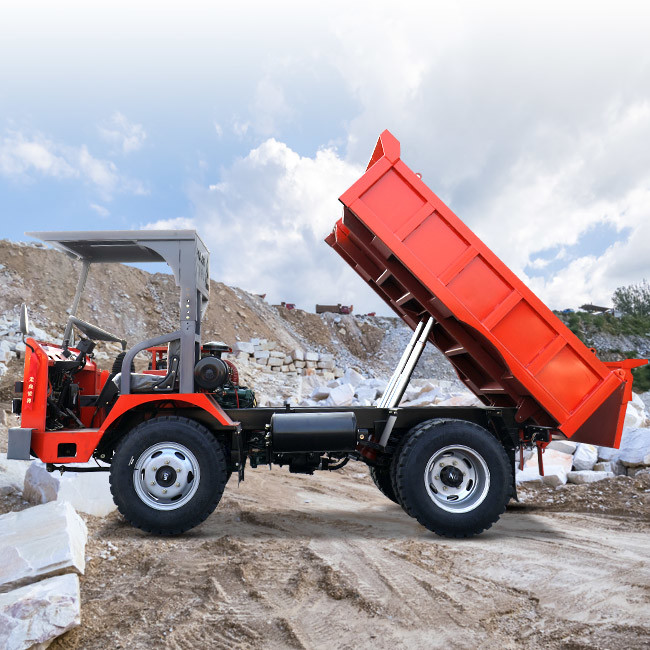

3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel 4

3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel 5
