Product parameters of 10 Tons Underground Mining Truck

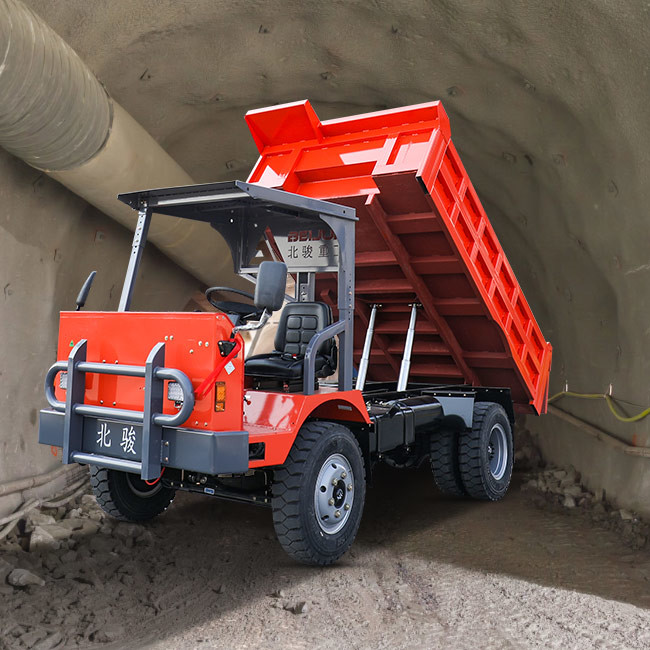

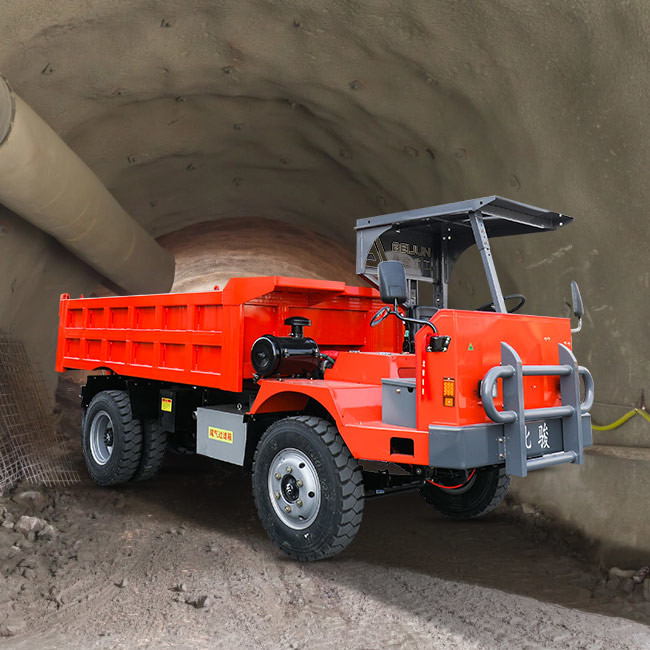

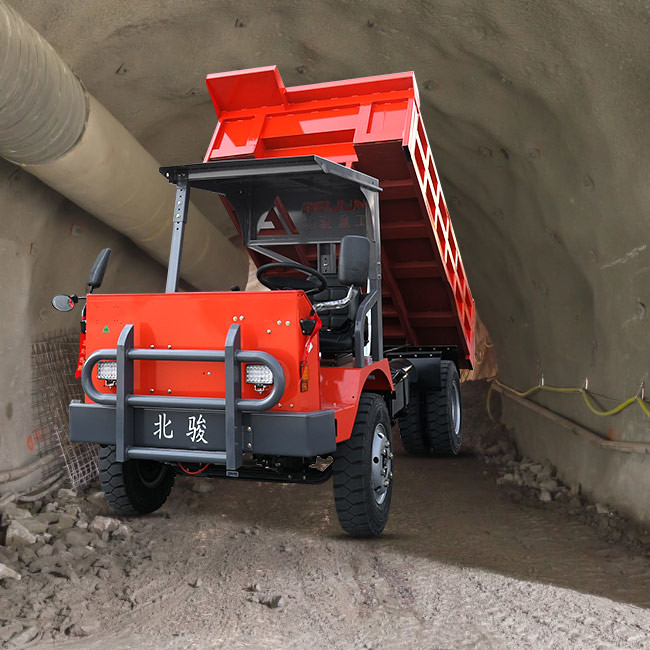

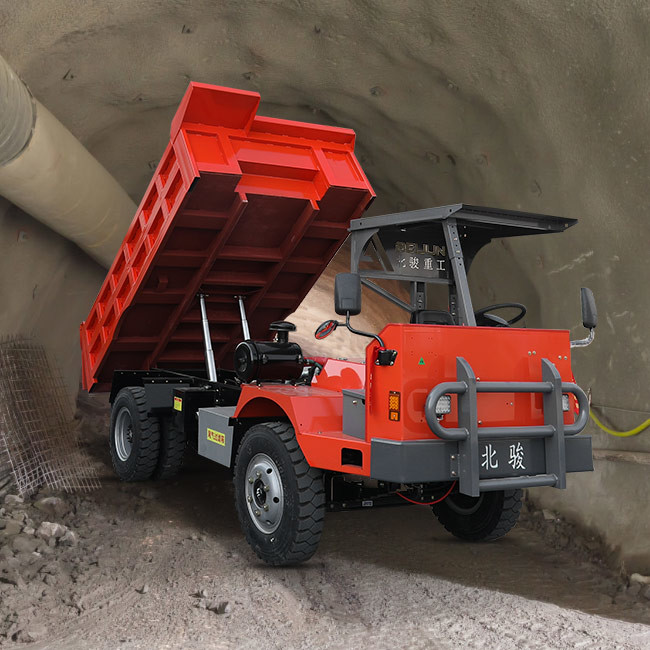

UQ-10 Underground Mining Truck with superior waterproof performance, high-level waterproof sealing treatment is adopted for vehicle lines and electrical appliances, which effectively avoids the phenomenon of electric leakage due to excessive water in the roadway. Large angle steering, smaller turning radius, more suitable for complex road conditions with narrow and curved roadways. Domestically used regular steel frames for automobiles are more tough than traditional riveted and welded frames, and they remain intact after heavy pressing. Mini crawler dumper has heavy duty bucket suitable for various work; Rubber tracks offer the best of low ground pressure. Mini crawler dumper is small machine with strong power,suitable for different working condition,such as home,garden,golf course,waste treatment plant,small construction, road maintenance,mining.
1. Transport vehicles can operate freely in mud and icy roads.
2. Self-unloading design, tracked walking, motor walking, greatly extended the use aility.
3. The specific size can be customized accordling to the requirements.
4. Strong carrying capacity, large climbing ability.
5. Simple structure in linear type, higher reliability.
6. Running in a high automatization and intellectualization, no pollution.
7. With small turning Radius, flexible operating.
Our company focus on the export and service of all kinds of heavy duty trucks, machinery and original spare parts. As a professional supplier and manufacturer, the best truck and service will be provided for you all. High quality, reasonable price, professional service team, we will be the best business partner for you! Warmly welcome the friends from all over the world to visit our company and cooperate with us.
Model | UQ-10 |
Engine Model | YUNEI 4102 with Turbocharge |
Engine Power | 70KW/95HP |
Total Dimension | 4800*1800*1600mm |
Transmission Model | Wanliyang 545 |
Transmission Gear | 5 Forward Gear, 1Back Gear,Rear High Speed Controller |
Drive Mode | 4x2 |
Front Axle Model | 1098 |
Rear Axle Model | 1098 |
Tire Model | 750-16 Line Tire, Rear Double Tyre One Side, |
No.of Bottom Spring Plate | Front 10 PCS, Rear 10 PCS, Spare 6PCS |
Dimension of Bottom Spring Plate | Length 70mm, Width 10mm |
Size of the Bucket:Length×width×height | 3200mm*1800mm*600mm |
Type of Bucket | U type Bucket |
Thickness of Bucket Steel Plate | bottom 8mm side 6mm |
Unloading Type | Hydraulic Double Top Dump |
Steering Type | Hydraulic power steering |
Braking Type | Air Brake |
Cabin | Canopy |
Driving Position | Left Hand Drive |
Cooling sytem | Standard Water Cooling System |
Loading Capacity | 10 Tons |
