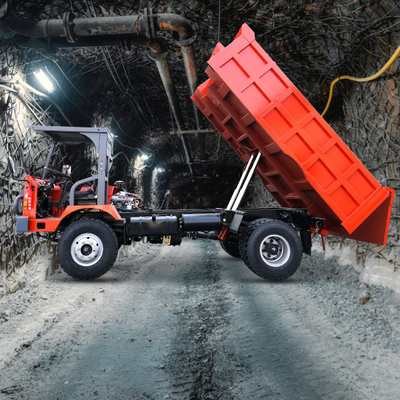

Uq-12 Underground Trucks Mining Hydraulic Diesel 12 Ton 4*2 Wheel Drive

1
MOQ
Uq-12 Underground Trucks Mining Hydraulic Diesel 12 Ton 4*2 Wheel Drive
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUNEI 4102 With Turbocharge
Engine Power: 81KW/110HP
Transmission Model: Wanliyang 545
Drive Wheel: 4x2
Dimension Of Bottom Spring Plate: Length 71mm, Width 9mm
Color: Customer's Request
Capacity (load): 1 - 12 Ton
Type: Dumping Truck
High Light:

4*2 wheel drive underground trucks mining

,

12 ton underground trucks mining

,

12 ton underground truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-12
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 8 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of 12 tons Underground Mining Dump Truck



A dump truck is a vehicle that unloads goods by itself through hydraulic or mechanical lifting. Also known as dump truck. It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and force taking device.



UQ-12 is a compact underground mining truck with a carrying capacity of 12 tons. UQ-12 mining dump trucks have the characteristics of large traction, good climbing performance and strong transportation capacity. It is suitable for complex road conditions such as mines, underground mines, mining areas, Construction site, muddy roads, project construction, swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice, etc. UQ-12 not only improves production efficiency, but also improves safety, maintainability and operator comfort in underground transportation, mining and construction operations.



Each vehicle has been strictly tested before delivery, and the vehicle parts are weighed and counted at the factory, striving to provide customers with the most satisfactory service vehicles. At the same time, we are also equipped with a small three-wheel dumper truck, which can be used in conjunction with a four-wheel diesel dumper truck, providing great convenience for your mining heavy cargo transportation and other work. Our mining dump trucks are built with safety and ease of operation in mind. Standard safety features and comfortable work conditions adds to increased production.



Over the years, we have been adhering to the business philosophy of "Quality First, Customer First". Beijun Products are exported to African, South American, and Southeast Asian markets.



Model UQ-12
Engine Model YUCHAI 4102 with Turbocharge
Engine Power 81KW/110HP
Total Dimension 5000*2000*1700mm
Transmission Model Wanliyang 545
Transmission Gear 5 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 1098
Tire Model 825-16 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 10 PCS, Rear 10 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 10mm
Size of the Bucket:Length×width×height 3400mm*2000mm*700mm
Type of Bucket U-type
Thickness of Bucket Steel Plate bottom 8mm side 6mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 12 Tons


Uq-12 Underground Trucks Mining Hydraulic Diesel 12 Ton 4*2 Wheel Drive 0Uq-12 Underground Trucks Mining Hydraulic Diesel 12 Ton 4*2 Wheel Drive 1Uq-12 Underground Trucks Mining Hydraulic Diesel 12 Ton 4*2 Wheel Drive 2Uq-12 Underground Trucks Mining Hydraulic Diesel 12 Ton 4*2 Wheel Drive 3Uq-12 Underground Trucks Mining Hydraulic Diesel 12 Ton 4*2 Wheel Drive 4
