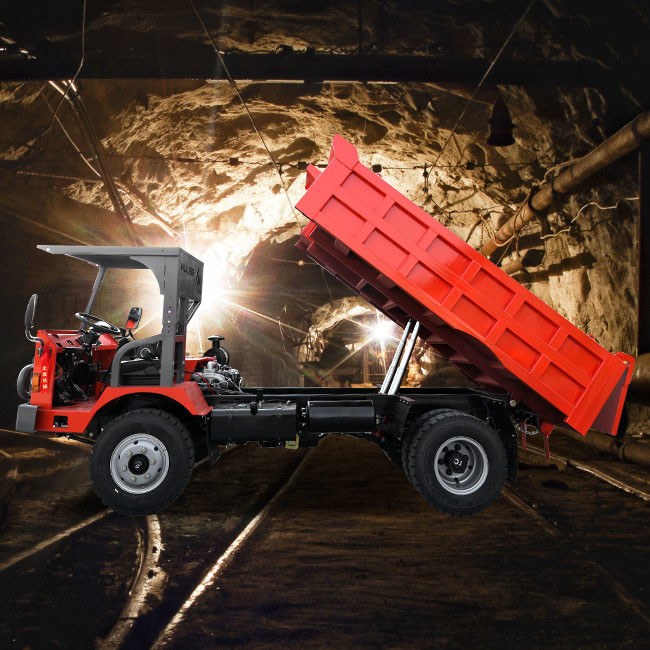

Product parameters of 10 Tons Dump Trucks
Through the perfect combination of wide body car and rigid mine car, a cost-effective mine car designed for carrying large-scale open pit mines with heavy demand and bad working conditions.The advantages of 10 tons dump trucks are maximizing efficiency in material handling, cost-effectiveness in heavy-duty operations and versatility in handling diverse loads and terrains.The front and rear suspension adopt multi-stage shock absorption, which effectively prolongs the service life of the leaf spring and has strong impact resistance.
Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of foreign service department, will be better to serve the global customers.
| Model | UQ-10 |
| Engine Model | YUNEI 4102 with Turbocharge |
| Engine Power | 70KW/95HP |
| Total Dimension | 4800*1800*1600mm |
| Transmission Model | Wanliyang 545 |
| Transmission Gear | 5 Forward Gear, 1Back Gear,Rear High Speed Controller |
| Drive Mode | 4x2 |
| Front Axle Model | 1098 |
| Rear Axle Model | 1098 |
| Tire Model | 750-16 Line Tire, Rear Double Tyre One Side, |
| No.of Bottom Spring Plate | Front 10 PCS, Rear 10 PCS, Spare 6PCS |
| Dimension of Bottom Spring Plate | Length 70mm, Width 10mm |
| Size of the Bucket:Length×width×height | 3200mm*1800mm*600mm |
| Type of Bucket | U type Bucket |
| Thickness of Bucket Steel Plate | bottom 8mm side 6mm |
| Unloading Type | Hydraulic Double Top Dump |
| Steering Type | Hydraulic power steering |
| Braking Type | Air Brake |
| Cabin | Canopy |
| Driving Position | Left Hand Drive |
| Cooling sytem | Standard Water Cooling System |
| Loading Capacity | 10 Tons |
