Capacity 12 Tons Underground Mining Truck 4x2 Drive

1
MOQ
Capacity 12 Tons Underground Mining Truck 4x2 Drive
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUNEI 4102 With Turbocharge
Engine Power: 81KW/110HP
Transmission Model: Wanliyang 545
Drive Wheel: 4x2
Dimension Of Bottom Spring Plate: Length 70mm, Width 11mm
Color: Customer's Request
Capacity (load): 1 - 12t
Type: Dumping Truck
High Light:

12 tons underground mining truck

,

4x2 drive underground mining truck

,

12 tons underground truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-12
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7-15days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description



Product parameters of 12 tons Underground Mining Truck



1. Improved design of main structure like two and half beam to assure large load and security;
2. Improved design of power supply and distribution system to achieve lower fuel consumption and more driving force;
3. Best diesel engine and battery group supplier to assure a robost performance;
4. Clutch lock is used for Rear axle and no resistance gear makes it easy to operate.
5. Large capacity is put to use for fuel tank, driving mileage is long.
6. Electrophoretic coating process is used for the vehicle cover panel. Corrosion and aging resistance, non-fading.



Model UQ-12
Engine Model YUCHAI 4102 with Turbocharge
Engine Power 81KW/110HP
Total Dimension 5000*2000*1700mm
Transmission Model Wanliyang 545
Transmission Gear 5 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 1098
Tire Model 825-16 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 10 PCS, Rear 10 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 10mm
Size of the Bucket:Length×width×height 3400mm*2000mm*700mm
Type of Bucket U-type
Thickness of Bucket Steel Plate bottom 8mm side 6mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 12 Tons

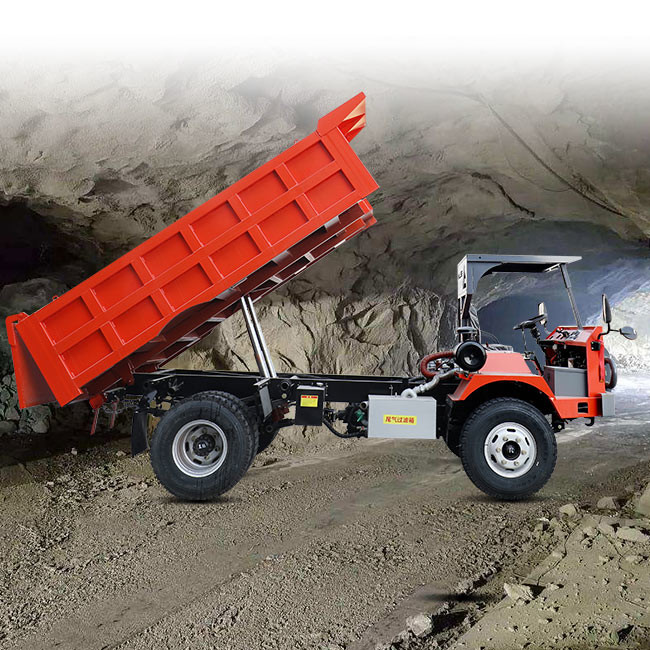

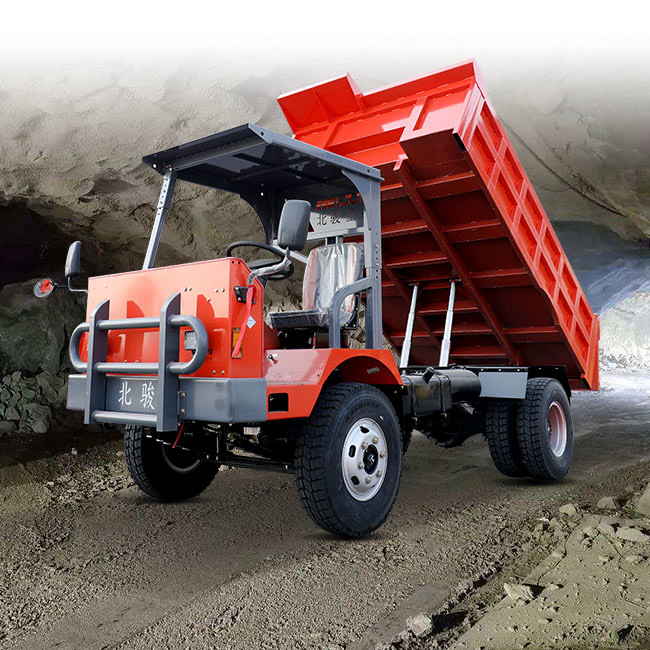

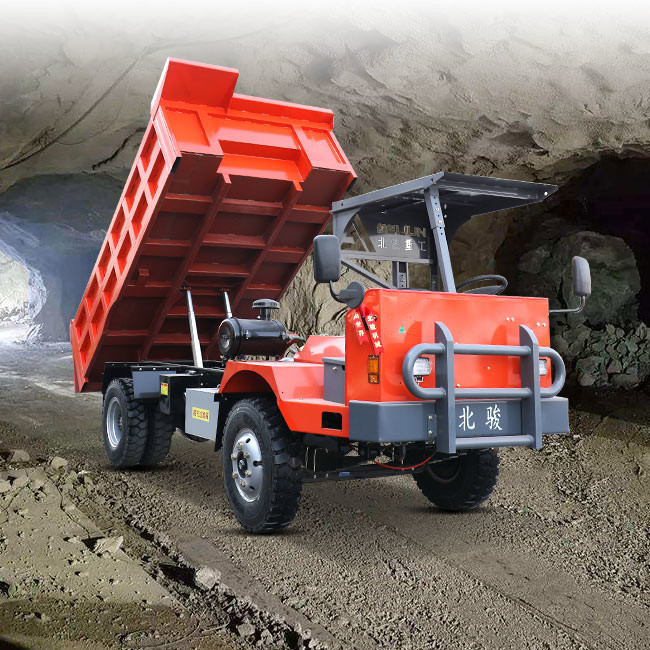

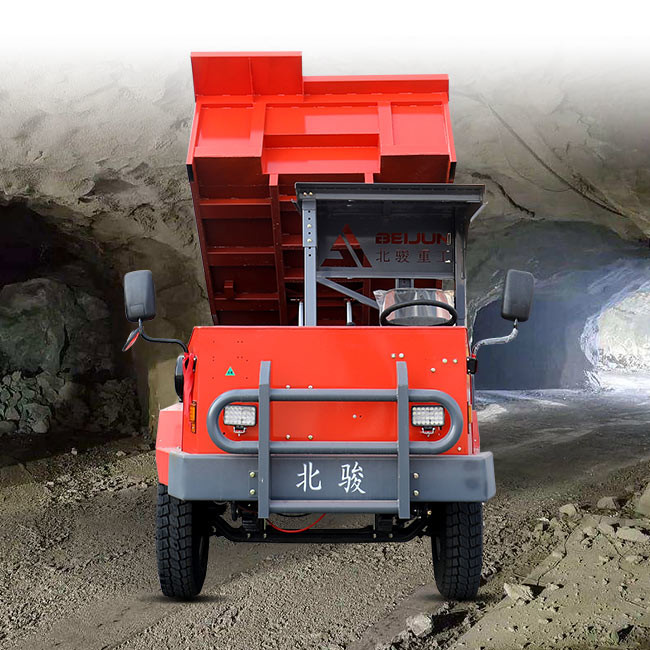

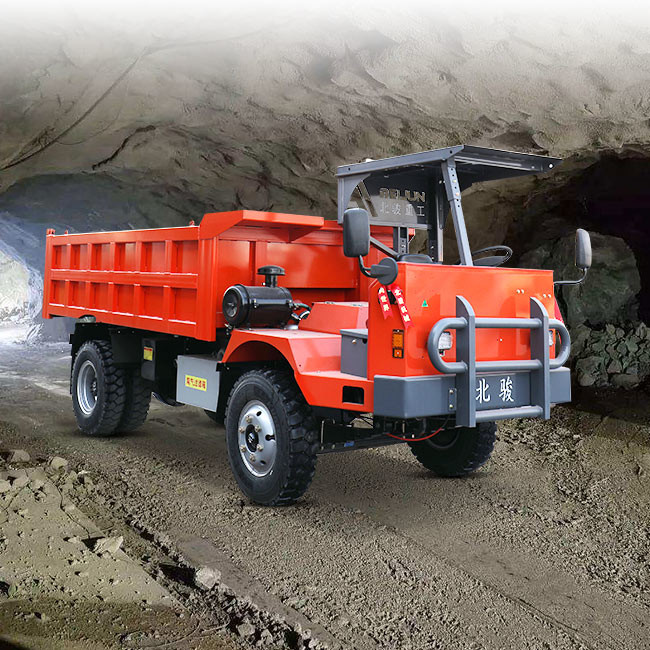

Capacity 12 Tons Underground Mining Truck 4x2 Drive 0Capacity 12 Tons Underground Mining Truck 4x2 Drive 1Capacity 12 Tons Underground Mining Truck 4x2 Drive 2Capacity 12 Tons Underground Mining Truck 4x2 Drive 3Capacity 12 Tons Underground Mining Truck 4x2 Drive 4
