Product parameters of 10 Tons Underground Mining Truck

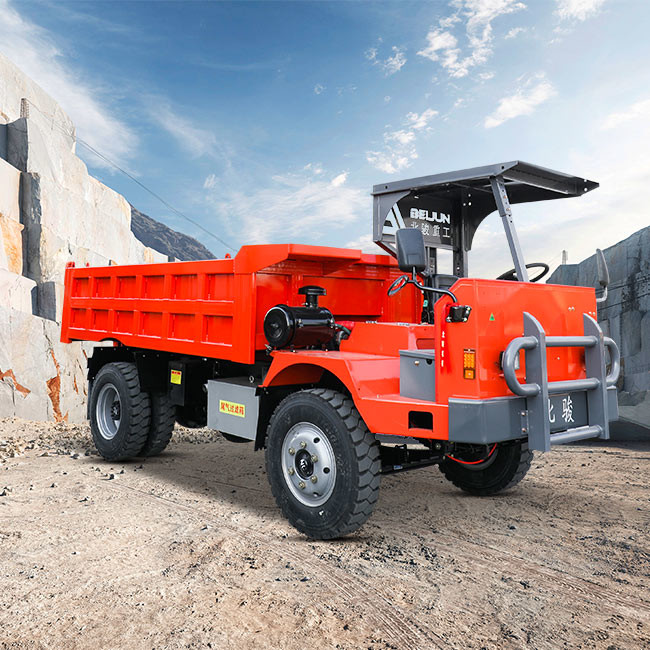

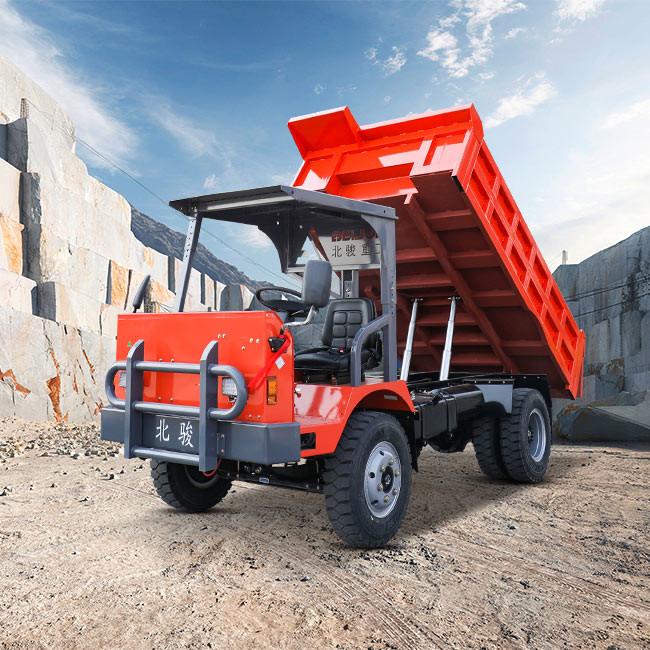

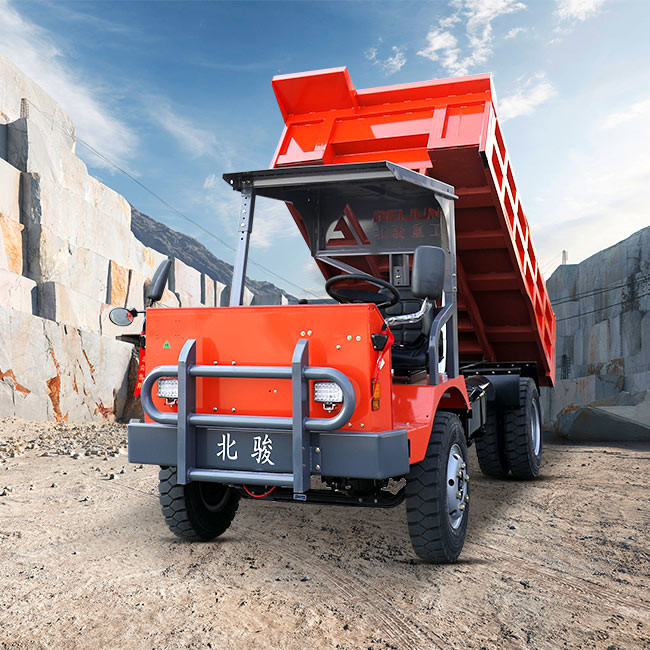

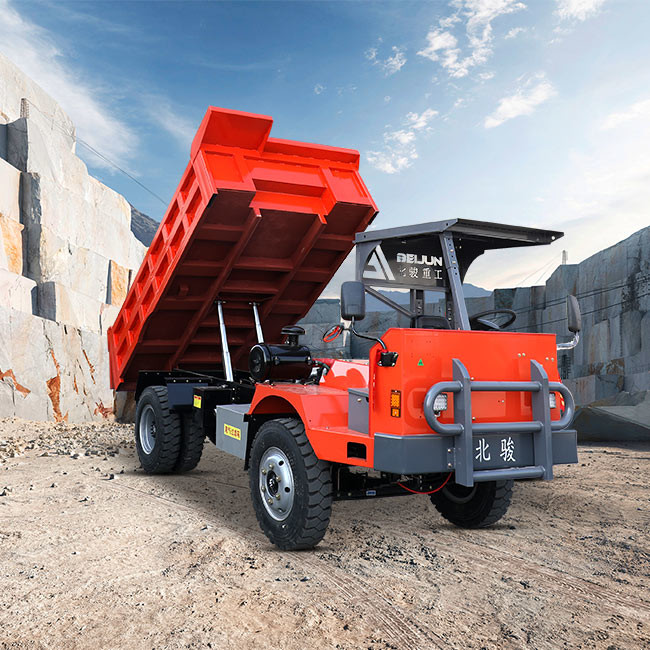

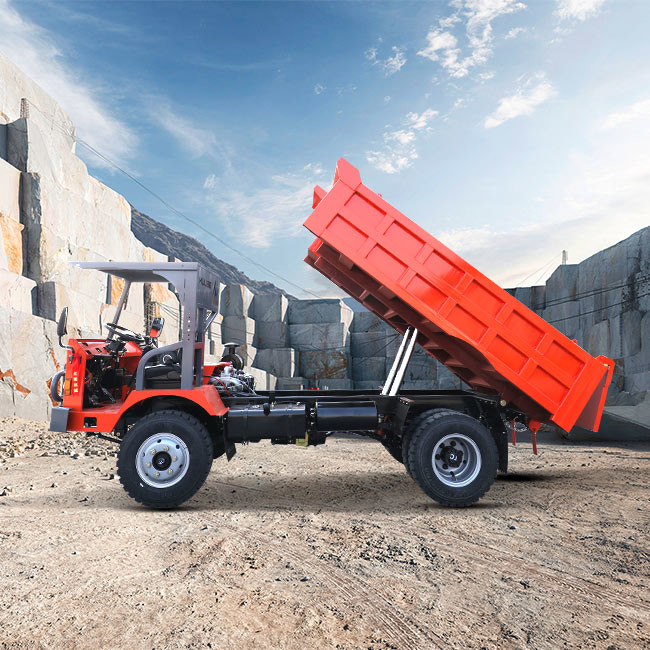

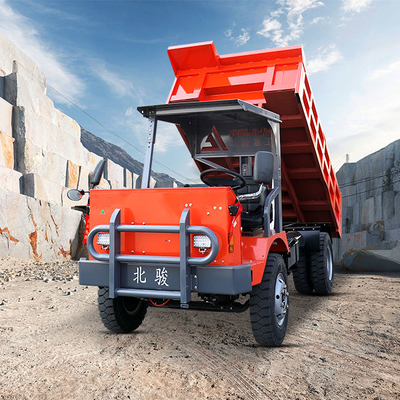

UQ-10 is an underground mining trucks with 10 ton payload for small scale mine and it suitable for small and medium underground operations and development work. Best payload to own weight ratio in its class. It is full of features to help mines maximize tons and minimize costs. Our mining dump trucks are built with safety and ease of operation in mind. Standard safety features and comfortable work conditions adds to increased production.
Model | UQ-10 |
Engine Model | YUNEI 4102 with Turbocharge |
Engine Power | 70KW/95HP |
Total Dimension | 4800*1800*1600mm |
Transmission Model | Wanliyang 545 |
Transmission Gear | 5 Forward Gear, 1Back Gear,Rear High Speed Controller |
Drive Mode | 4x2 |
Front Axle Model | 1098 |
Rear Axle Model | 1098 |
Tire Model | 750-16 Line Tire, Rear Double Tyre One Side, |
No.of Bottom Spring Plate | Front 10 PCS, Rear 10 PCS, Spare 6PCS |
Dimension of Bottom Spring Plate | Length 70mm, Width 10mm |
Size of the Bucket:Length×width×height | 3200mm*1800mm*600mm |
Type of Bucket | U type Bucket |
Thickness of Bucket Steel Plate | bottom 8mm side 6mm |
Unloading Type | Hydraulic Double Top Dump |
Steering Type | Hydraulic power steering |
Braking Type | Air Brake |
Cabin | Canopy |
Driving Position | Left Hand Drive |
Cooling sytem | Standard Water Cooling System |
Loading Capacity | 10 Tons |
