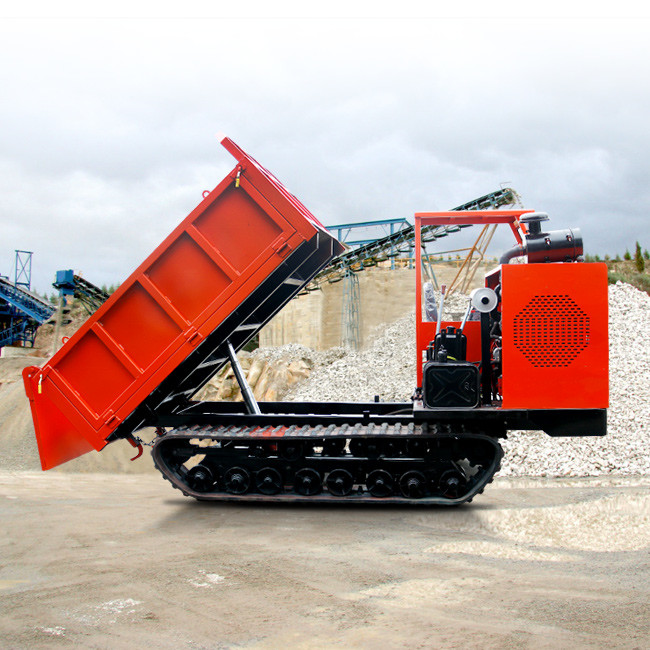

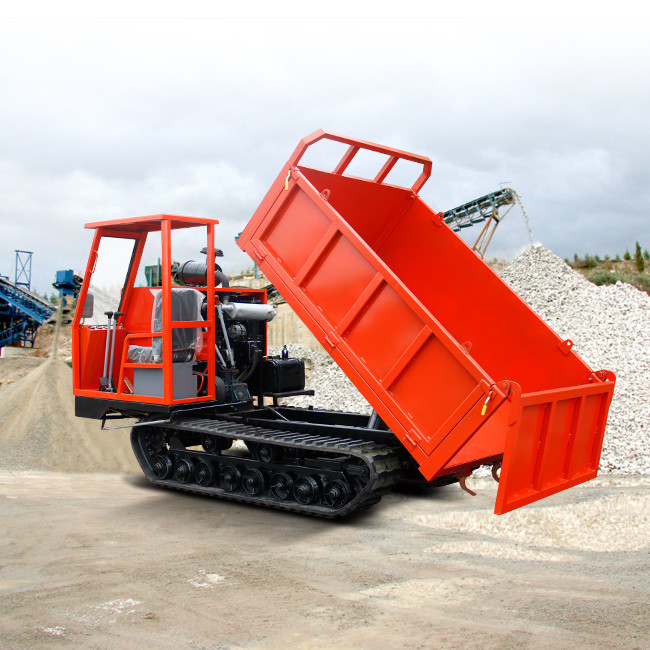

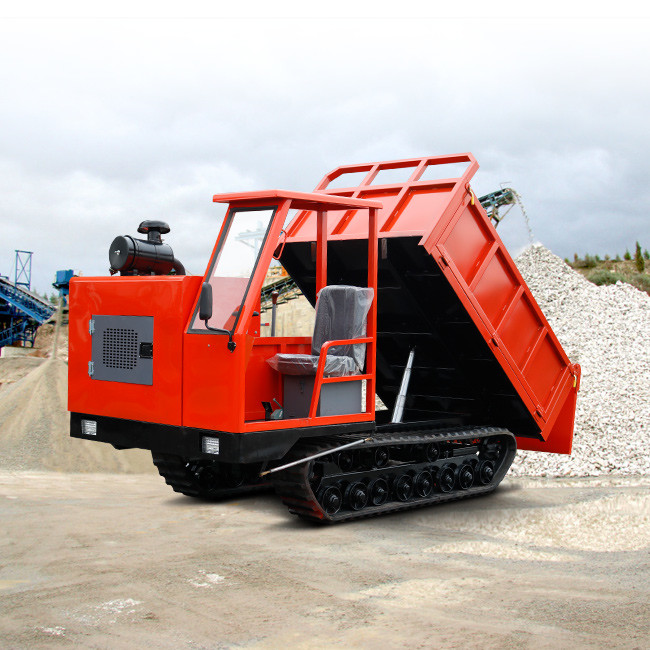

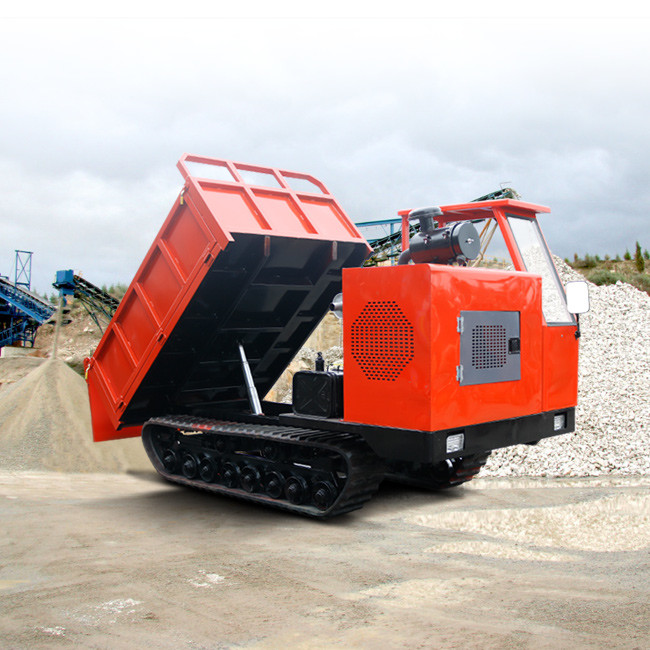

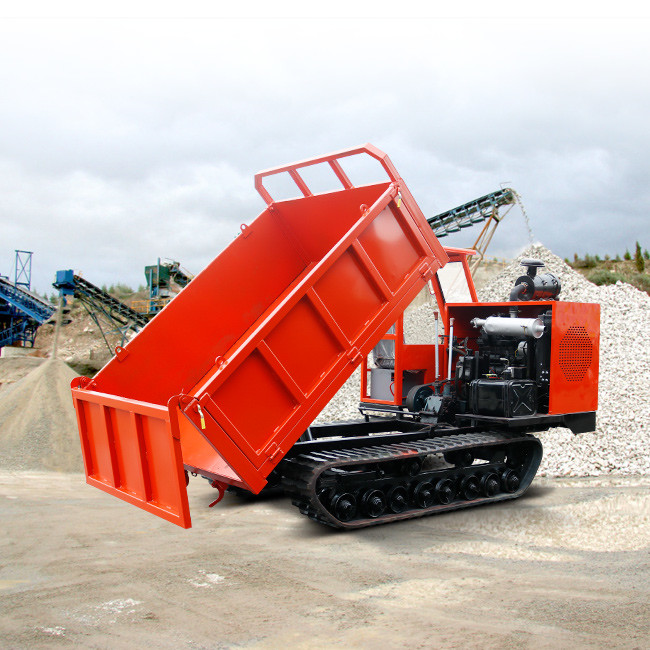

Product parameters of 5 Ton Crawler Dumper Truck
Free crawler transporter in mud, icy roads, dump design, crawler walking, motor to walk, a great deal of extended use power.Specific size can be customized according to demand. Carrying capacity is strong, climbing ability, simplicity of operator,maintenance easy.
Main Features:
1) Simple structure in linear type ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automation and Intelligent ,no pollution.
length*width*height | 3500*1700*2050mm |
Cargo box size | 2200*1500*600 bottom 2 sides 2 |
launch brand | Weichai |
engine model | 4105 |
Model model | Guli 23 |
gear | Top 3 inverted 1 high and low speed |
crawler | Engineering rubber tracks |
Track model | 320*90*56mm |
Hydraulic dump function | Single top dump |
Bearing weight | 5 tons |
Cargo box height from ground | 58cm |
uphill angle | 35 degrees |
Single wheel side system | Full 180 floating wheels |
Start mode | Electric start |
Weight | 2350kg |
