YC6MK375-T300 Engine 35t Underground Mining Truck Coal Mining Vehicle UQ-35Q

1
MOQ
YC6MK375-T300 Engine 35t Underground Mining Truck Coal Mining Vehicle  UQ-35Q
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YC6MK375-T300
Engine Power: 276kW
Transmission Model: 10JS220
Drive Mode: 6x4
Size Of The Bucket:Length×width×height: 5401x2501x1351mm
Total Dimension: 7750x2501x2701
Front Axle Model: Styer Axle
Loading Capacity: 35 Tons
Braking Type: Air Brake
High Light:

35t Underground Mining Truck

,

35t Coal Mining Vehicle

,

YC6MK375-T300 Underground Mine Truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-35Q
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 8-11 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product Features of 35 Tons Underground Mining 6*4 Dump Truck



Mining dump truck is a heavy-duty dump truck used in open-pit mines to complete the tasks of rock and earth stripping and ore transportation.
In the mining and quarrying industry, mining trucks are the key to efficient, productive operations. Mining dump trucks work closely with other mining equipment and are required to work multiple days in a single operation. Under such difficult working conditions, mining trucks are required to operate stably and reliably.



Product parameters of 35 Tons Underground Mining 6*4 Dump Truck



Model UQ-35Q
Engine Model YC6MK375-T300
Engine Power 276kW
Total Dimension 7748x2500x2700
Transmission Model 10JS220
Transmission Gear 10 Forward Gear, 2Back Gear,Rear High Speed Controller
Drive Mode 6x4
Front Axle Model Styer Axle
Rear Axle Model Styer Axle
Tire Model 12.00R20
No.of Bottom Spring Plate Front 11 PCS, Rear 12 PCS
Dimension of Bottom Spring Plate Front 90*16
Rear 90*24
Size of the Bucket:Length×width×height 5400x2500x1350mm
Type of Bucket Right Angle Type
Thickness of Bucket Steel Plate bottom 10mm side 8mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Closed Cabin
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 35 Tons

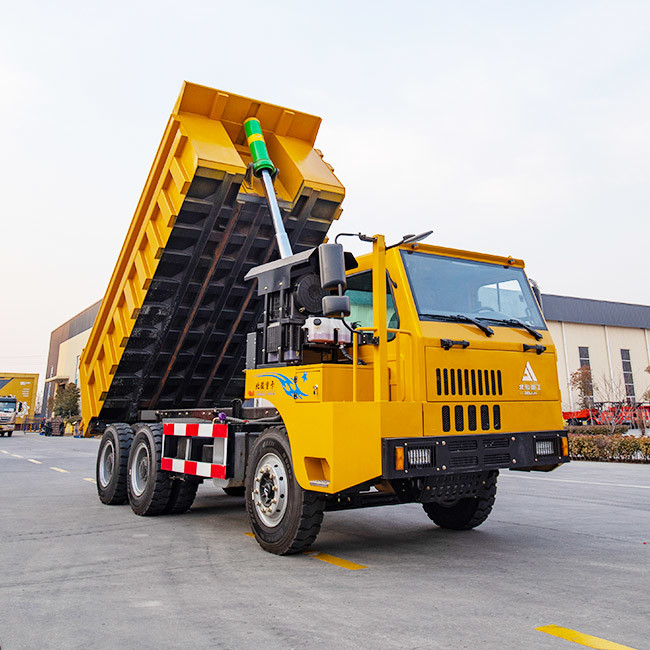

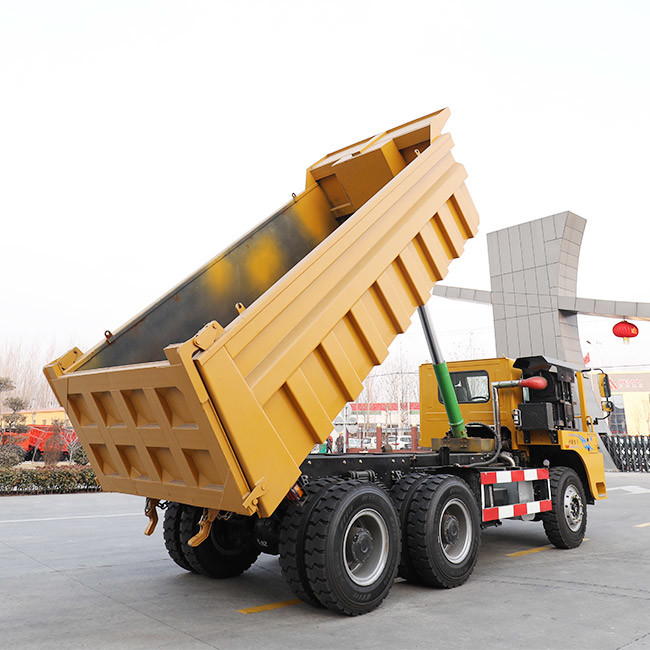

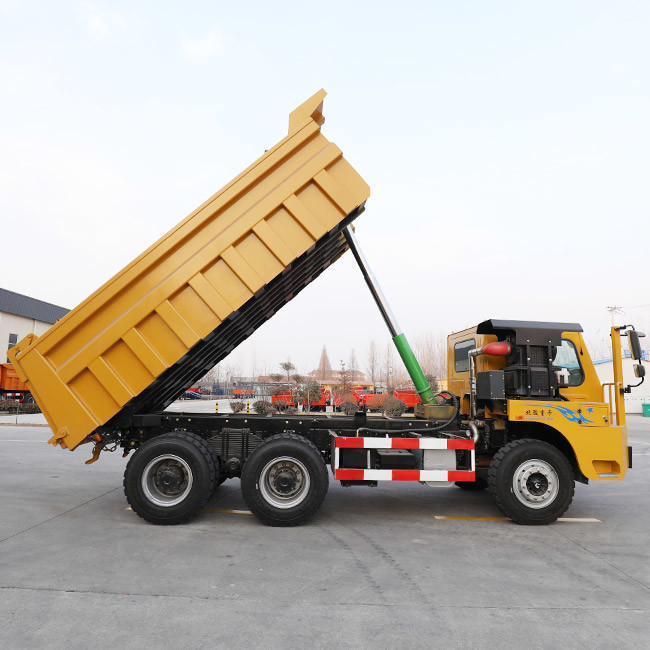

 YC6MK375-T300 Engine 35t Underground Mining Truck Coal Mining Vehicle  UQ-35Q 0YC6MK375-T300 Engine 35t Underground Mining Truck Coal Mining Vehicle  UQ-35Q 1YC6MK375-T300 Engine 35t Underground Mining Truck Coal Mining Vehicle  UQ-35Q 2
