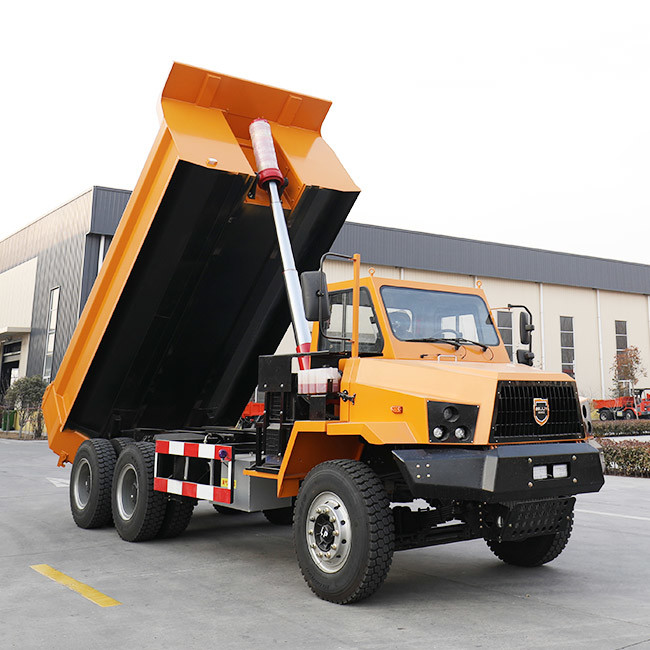

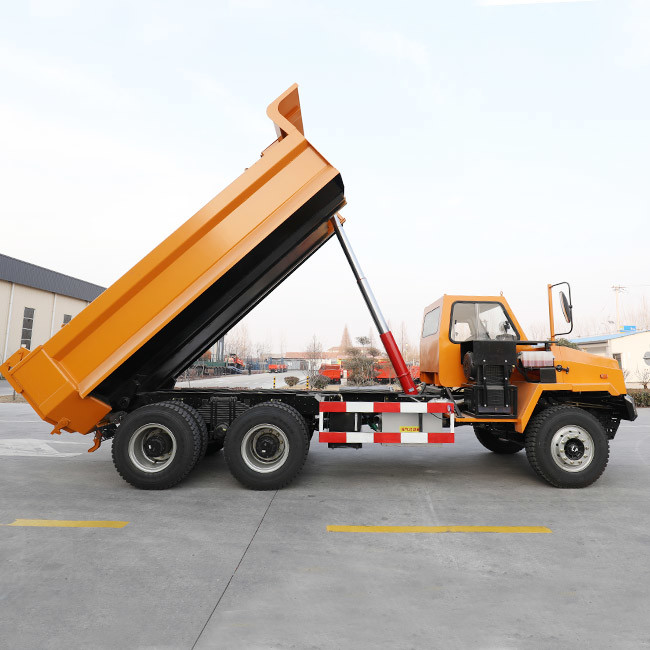

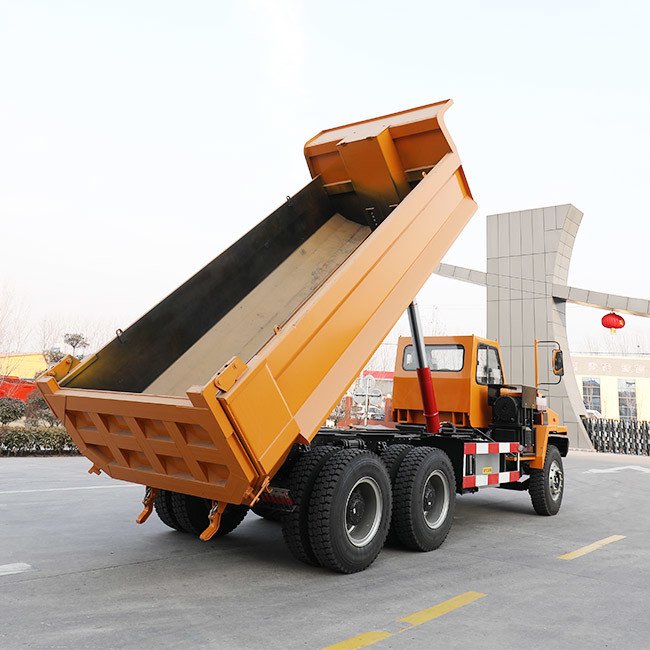

Product Features of 25 Ton Mining Underground Dump Truck Tipper Truck
Compact and Efficient Design: The Beijun underground tunnel dump truck is designed to be compact and efficient, with a small turning radius, specially designed cab, suspension frame, and cargo compartment. This allows it to operate seamlessly in narrow spaces, such as underground roadways and ramps, where space is limited.
Improved Safety Features: The dump truck is equipped with improved lamps and electrical components that are waterproof and moisture-proof, as well as dedicated anti-slippery tires. These features enhance its obstacle-crossing capability and ensure high safety in the underground environment, which can be hazardous due to poor lighting, slippery surfaces, and other factors.
Powerful Performance: The Beijun underground tunnel dump truck has a powerful engine with large torque, excellent grade, and starting performance, making it capable of transporting heavy loads efficiently in the underground environment. Its high-performance features also enable it to handle challenging terrain with ease.
High Bearing Capacity and Durability: The dump truck is designed according to mining vehicle design concepts, with a bearing capacity that is 1.5 times that of ordinary road vehicles. Its sturdy construction and components ensure its durability in harsh underground conditions, making it a reliable and efficient choice for businesses and organizations that require a robust and practical vehicle for underground mining or construction operations.
Product parameters of 25 Ton Mining Underground 25 Ton Dump Truck Tipper Truck
| Model | UQ-25 |
| Engine Model | Yuchai YC6L340-33 |
| Engine Power | 243KW |
| Total Dimension | 7900x2420x2720mm |
| Transmission Model | FASITE RT11509C |
| Transmission Gear | 10 Forward Gear, 2Back Gear,Rear High Speed Controller |
| Drive Mode | 6x4 |
| Front Axle Model | Styer Axle |
| Rear Axle Model | Styer Axle |
| Tire Model | 1100R20 Radial steel tire, Rear Double Tyre One Side, |
| No.of Bottom Spring Plate | Front 11 PCS, Rear 12 PCS |
| Dimension of Bottom Spring Plate | Front 90*16 Rear 90*24 |
| Size of the Bucket:Length×width×height | 5000x2300x1200mm |
| Type of Bucket | Right Angle Type |
| Thickness of Bucket Steel Plate | bottom 10mm side 8mm |
| Unloading Type | Hydraulic Double Top Dump |
| Steering Type | Hydraulic power steering |
| Braking Type | Air Brake |
| Cabin | Closed Cabin with A/C |
| Driving Position | Left Hand Drive |
| Cooling sytem | Standard Water Cooling System |
| Loading Capacity | 25 Tons |
