118KW/160HP Off Highway Mining Dump Truck Payload 15 Tonne Dumper

1
MOQ
USD 5000-10000 Set
Price
118KW/160HP Off Highway Mining Dump Truck Payload 15 Tonne Dumper
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUCHAI 4108 With Turbocharge
Engine Power: 118KW/160HP
Transmission Model: FASITE 8JS118
Front Axle Model: 1098
Dimension Of Bottom Spring Plate: Length 90mm, Width 16mm
Unloading Type: Hydraulic Double Top Dump
Type Of Bucket: U Type
Thickness Of Bucket Steel Plate: Bottom 10mm Side 8mm
High Light:

160HP Mining Dump Truck

,

Off Highway Mining Dump Truck

,

Off Highway 15 Tonne Dumper

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-15
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

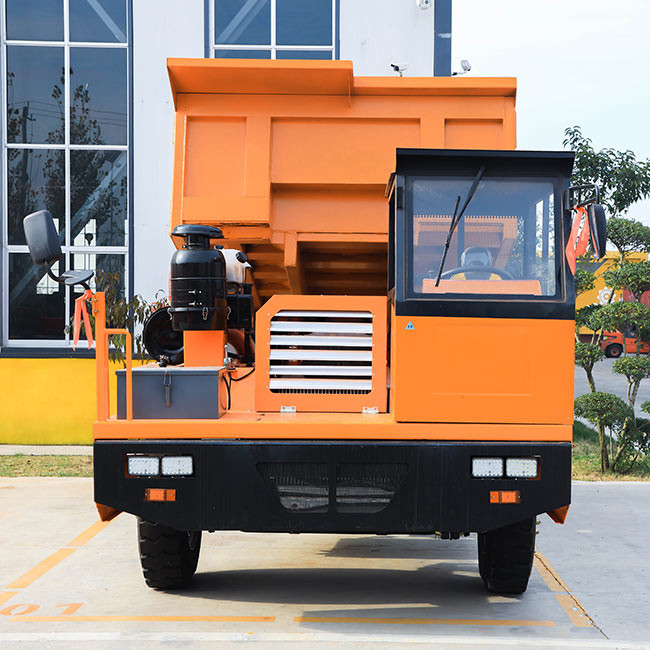

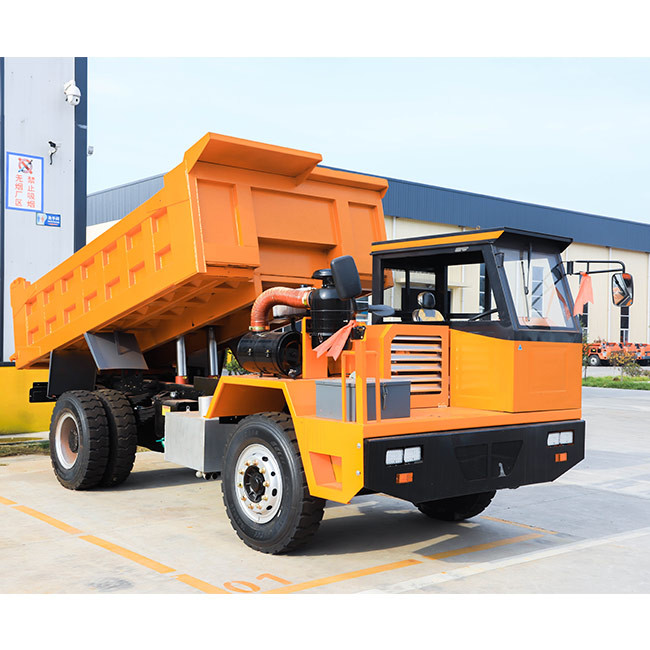

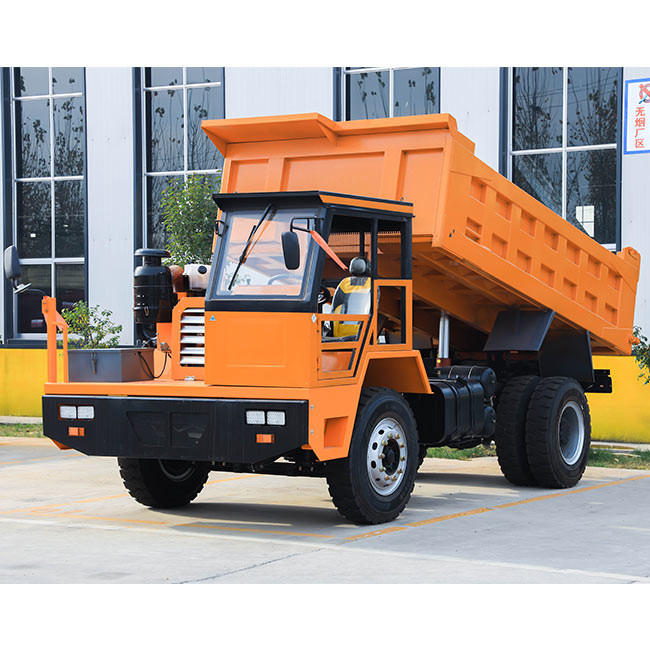

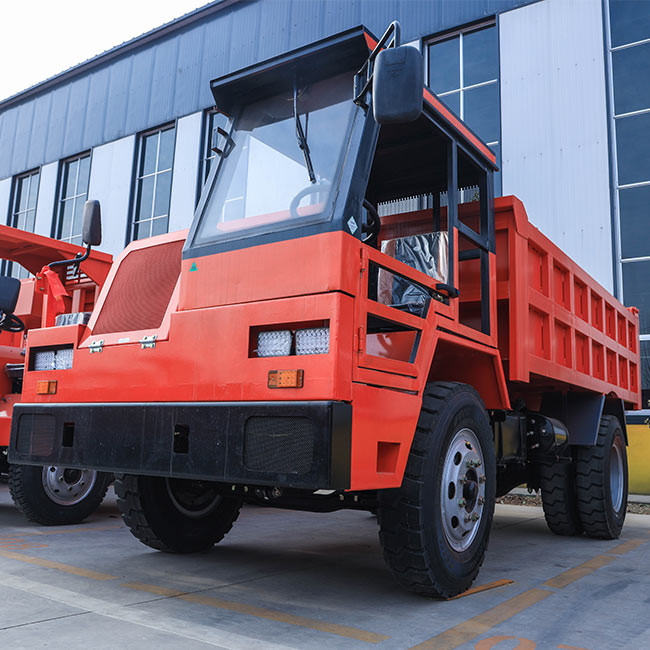

Product parameters of 15 tons Underground Mining Dump Truck



Compact and Agile Design: The Beijun underground tunnel dump truck is designed to be compact and agile, with a small turning radius and specially designed cab, suspension frame, and cargo compartment. This allows it to operate efficiently in narrow spaces, such as underground roadways and ramps, where maneuverability is essential.



Enhanced Safety Features: The dump truck is equipped with improved lamps and electrical components that are waterproof and moisture-proof, as well as dedicated anti-slippery tires. These features enhance its obstacle-crossing capability and ensure high safety in the underground environment, which can be hazardous due to poor lighting, slippery surfaces, and other factors.



Powerful Performance: The Beijun underground tunnel dump truck has a powerful engine with large torque, excellent grade, and starting performance, making it capable of transporting heavy loads efficiently in the underground environment. Its high-performance features also enable it to handle challenging terrain with ease.



High Bearing Capacity and Durability: The dump truck is designed and configured according to mining vehicle design concepts, with a bearing capacity that is 1.5 times that of ordinary road vehicles. Its sturdy construction and components ensure its durability in harsh underground conditions, making it a reliable and efficient choice for businesses and organizations that require a robust and practical vehicle for underground mining or construction operations.



Model UQ-15
Engine Model YUCHAI 4108 with Turbocharge
Engine Power 118KW/160HP
Total Dimension 5600*2300*2000mm
Transmission Model FASITE 8JS118
Transmission Gear 8 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 153
Tire Model 825-16 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 12 PCS, Rear 10PCS, Spare 8PCS
Dimension of Bottom Spring Plate Length 90mm, Width 16mm
Size of the Bucket:Length×width×height 4000mm*2200mm*800mm
Type of Bucket U Type
Thickness of Bucket Steel Plate bottom 10mm side 8mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 15 Tons


118KW/160HP Off Highway Mining Dump Truck Payload 15 Tonne Dumper 0118KW/160HP Off Highway Mining Dump Truck Payload 15 Tonne Dumper 1118KW/160HP Off Highway Mining Dump Truck Payload 15 Tonne Dumper 2118KW/160HP Off Highway Mining Dump Truck Payload 15 Tonne Dumper 3118KW/160HP Off Highway Mining Dump Truck Payload 15 Tonne Dumper 4
