Powerful Performance 4x2 Dump Truck Side Driving 12 Tonne Tipper Truck

1
MOQ

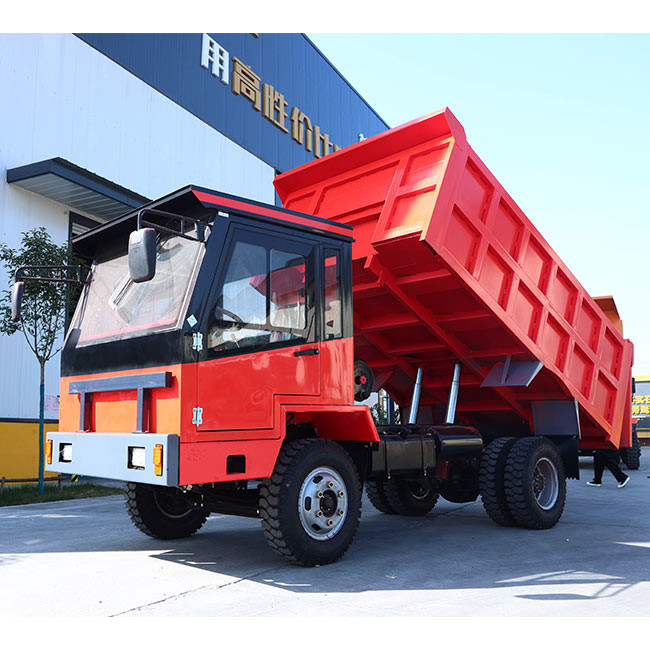

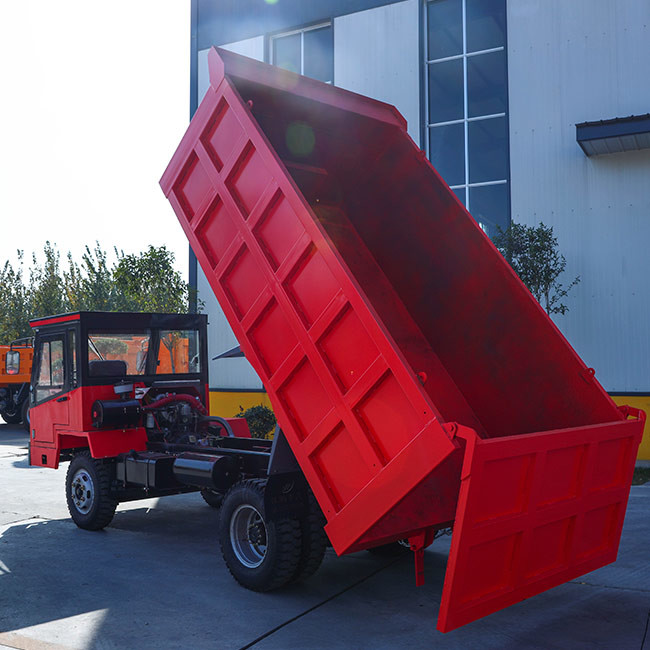

Powerful Performance 4x2 Dump Truck Side Driving 12 Tonne Tipper Truck
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUNEI 4102 With Turbocharge
Engine Power: 81KW/110HP
Transmission Model: Wanliyang 545
Drive Wheel: 4x2
Dimension Of Bottom Spring Plate: Length 70mm, Width 10mm
Color: Customer's Request
Capacity (load): 1 - 12t
Type: Dumping Truck
High Light:

Side Driving 12 Tonne Tipper Truck

,

4x2 Dump Truck Side Driving

,

Powerful Performance 4x2 Dump Truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-12
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of 12 tons Underground Mining Dump Truck 12 tons



Compact and Agile Design: The Beijun underground tunnel dump truck is designed to be compact and agile, with a small turning radius and specially designed cab, suspension frame, and cargo compartment. This allows it to operate efficiently in narrow spaces, such as underground roadways and ramps, where maneuverability is essential.



Enhanced Safety Features: The dump truck is equipped with improved lamps and electrical components that are waterproof and moisture-proof, as well as dedicated anti-slippery tires. These features enhance its obstacle-crossing capability and ensure high safety in the underground environment, which can be hazardous due to poor lighting, slippery surfaces, and other factors.



Powerful Performance: The Beijun underground tunnel dump truck has a powerful engine with large torque, excellent grade, and starting performance, making it capable of transporting heavy loads efficiently in the underground environment. Its high-performance features also enable it to handle challenging terrain with ease.



High Bearing Capacity and Durability: The dump truck is designed and configured according to mining vehicle design concepts, with a bearing capacity that is 1.5 times that of ordinary road vehicles. Its sturdy construction and components ensure its durability in harsh underground conditions, making it a reliable and efficient choice for businesses and organizations that require a robust and practical vehicle for underground mining or construction operations.



Model UQ-12
Engine Model YUCHAI 4102 with Turbocharge
Engine Power 81KW/110HP
Total Dimension 5000*2000*1700mm
Transmission Model Wanliyang 545
Transmission Gear 5 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 1098
Tire Model 825-16 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 10 PCS, Rear 10 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 10mm
Size of the Bucket:Length×width×height 3400mm*2000mm*700mm
Type of Bucket U-type
Thickness of Bucket Steel Plate bottom 8mm side 6mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 12 Tons


Powerful Performance 4x2 Dump Truck Side Driving 12 Tonne Tipper Truck 0Powerful Performance 4x2 Dump Truck Side Driving 12 Tonne Tipper Truck 1Powerful Performance 4x2 Dump Truck Side Driving 12 Tonne Tipper Truck 2Powerful Performance 4x2 Dump Truck Side Driving 12 Tonne Tipper Truck 3Powerful Performance 4x2 Dump Truck Side Driving 12 Tonne Tipper Truck 4
