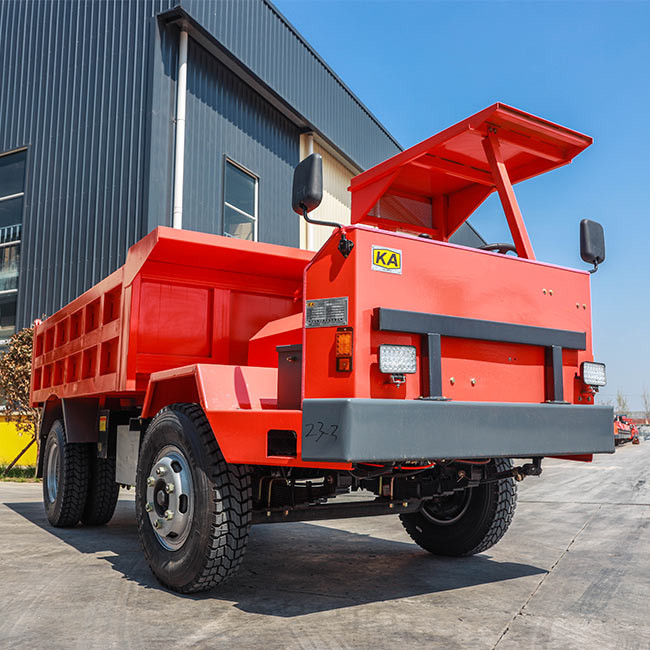

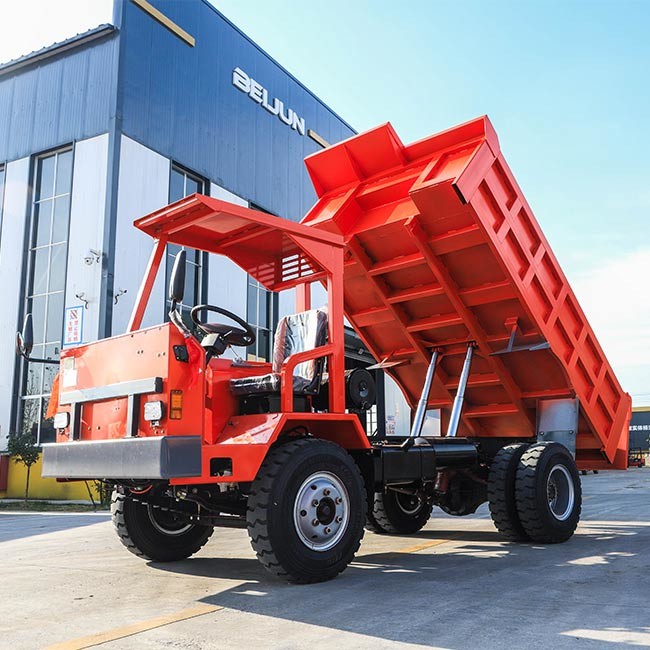

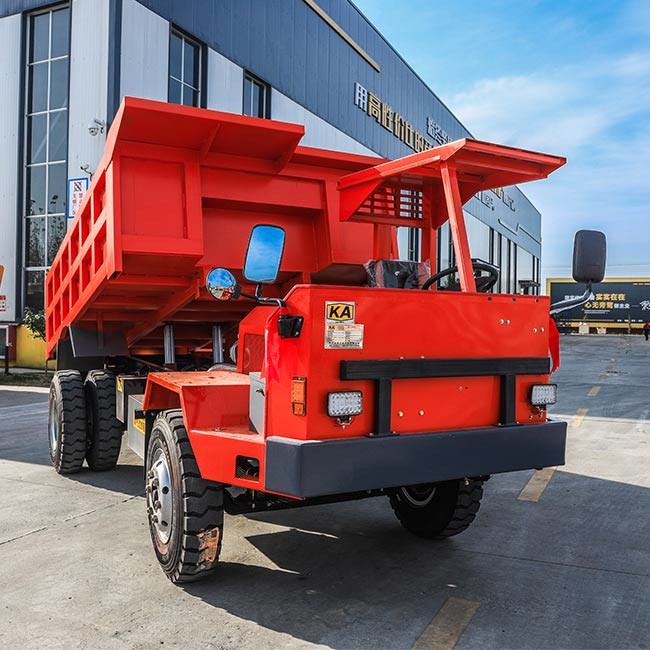

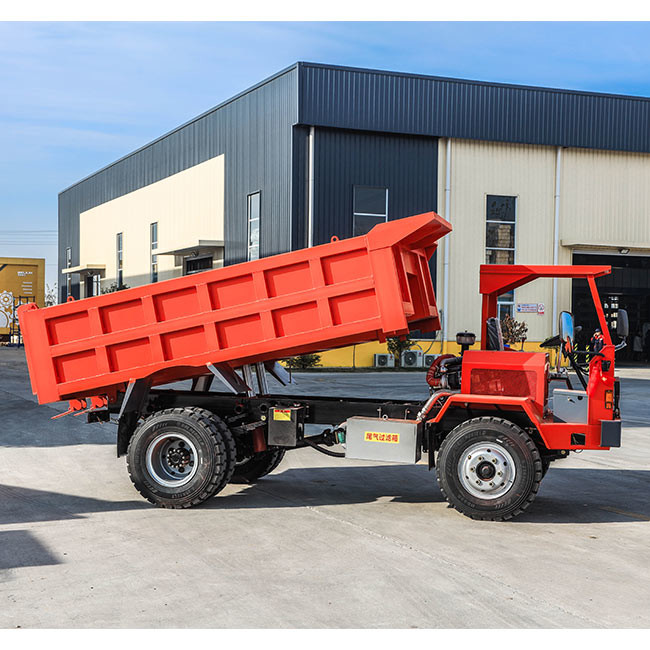

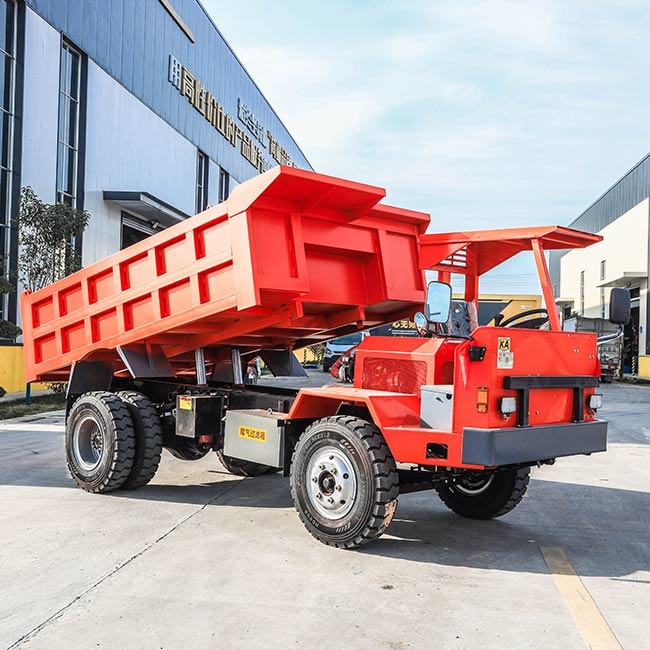

Product parameters of 10 Tons Mine Dump Trucks
The chain protection function is complete. When the vehicle stops or the vehicle fails, the vehicle is automatically in braking state, which is safe and reliable.
Ergonomically designed, air-conditioned closed cab, cushioned seats, visual operator interface, comfortable ride, and maximum visibility.
Central articulated body, power steering, good passability.conditions.
Model | UQ-10 |
Engine Model | YUNEI 4102 with Turbocharge |
Engine Power | 70KW/95HP |
Total Dimension | 4800*1800*1600mm |
Transmission Model | Wanliyang 545 |
Transmission Gear | 5 Forward Gear, 1Back Gear,Rear High Speed Controller |
Drive Mode | 4x2 |
Front Axle Model | 1098 |
Rear Axle Model | 1098 |
Tire Model | 750-16 Line Tire, Rear Double Tyre One Side, |
No.of Bottom Spring Plate | Front 10 PCS, Rear 10 PCS, Spare 6PCS |
Dimension of Bottom Spring Plate | Length 70mm, Width 10mm |
Size of the Bucket:Length×width×height | 3200mm*1800mm*600mm |
Type of Bucket | U type Bucket |
Thickness of Bucket Steel Plate | bottom 8mm side 6mm |
Unloading Type | Hydraulic Double Top Dump |
Steering Type | Hydraulic power steering |
Braking Type | Air Brake |
Cabin | Canopy |
Driving Position | Left Hand Drive |
Cooling sytem | Standard Water Cooling System |
Loading Capacity | 10 Tons |
